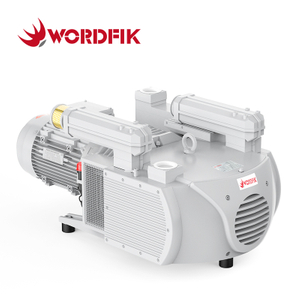

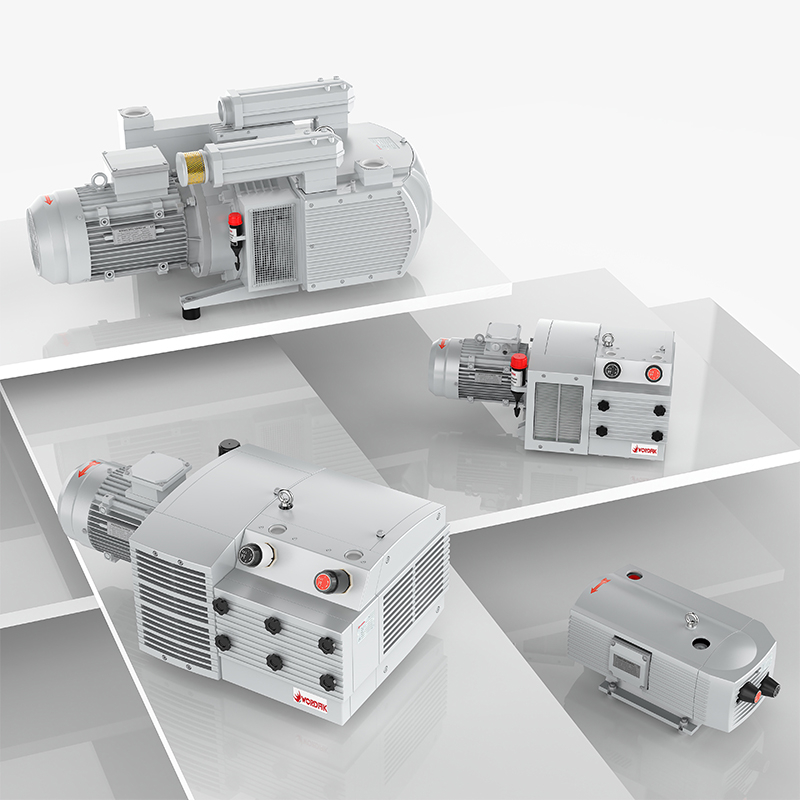

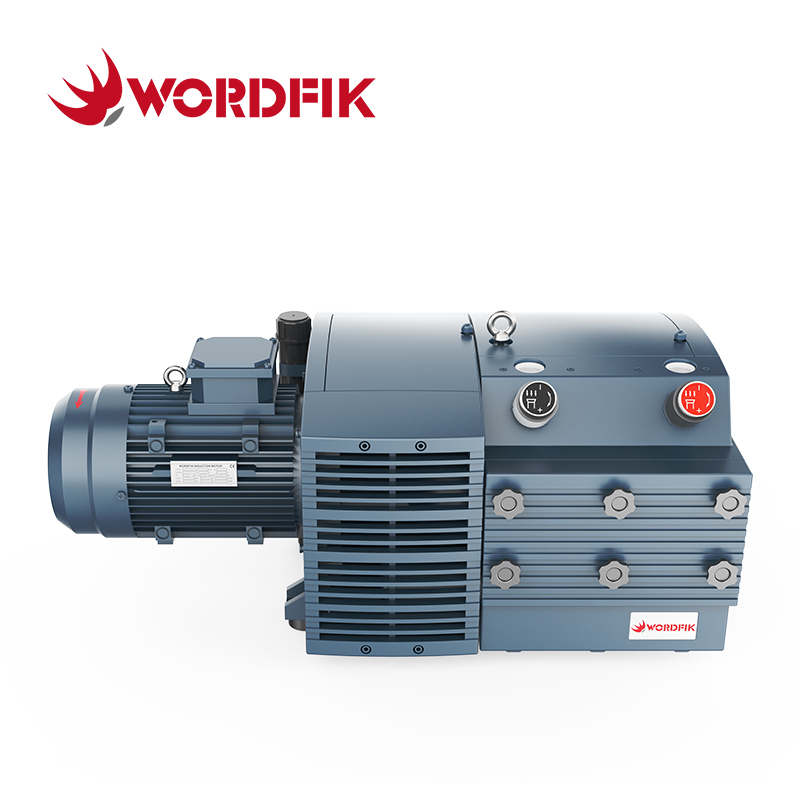

The Wordfik PVT series pump is an innovative vacuum and pressure combination pump. it combines the functionsof vacuum and compression, and the ability to suck and blow air at the same time makes it very popular in theprinting and paper industry.Its basic structure is similar as the dry rotary vane vacuum pump, and it operates 100% oil-free, has lowmaintenance costs and a long service life, Wordfik specially designed a compound pump with two suction ports tomeet the vacuum requirements of different industries.
Features:
• Multi-Fuction
• 100% 0il-Free Operation
• Clean and No Pollution
• Minimal Maintenance
• Long Service Life
• Stable and Continuous Operation
| Frequency | Pumping Speed | Vacuum | Pressure | Motor Power | Motor Voltage | Motor Speed | Noise Level | Inlet Connection | Inlet Connection | Weight | Dimensions | ||
| 3ph | 1ph | ||||||||||||
| PVT16 | 50Hz | 16 m³/h | -600 mbar | +600 mbar | 0.75 kW | Δ195-255 V Y330-440 V | 230V±10% | 1420 rpm | 69 dB | ½ inch | ½ inch | 36 kg | 511*283*225 mm |
| 60Hz | 20 m³/h | 0.9 kW | Δ190-290 V Y330-500 V | 1700 rpm | |||||||||
| PVT25 | 50Hz | 25 m³/h | -600 mbar | +600 mbar | 1.25 kW | Δ195-255 V Y330-440 V | 230V±10% | 1420 rpm | 69 dB | ¾ inch | ¾ inch | 36 kg | 545*328*290 mm |
| 60Hz | 30 m³/h | 1.5 kW | Δ190-290 V Y330-500 V | 1700 rpm | |||||||||
| PVT40 | 50Hz | 40 m³/h | -600 mbar | +600 mbar | 1.85 kW | Δ195-255 V Y330-440 V | 230V±10% | 1420 rpm | 68 dB | ¾ inch | ¾ inch | 45 kg | 617*321*295 mm |
| 60Hz | 48 m³/h | 2.2 kW | Δ190-290 V Y330-500 V | 1700 rpm | |||||||||
| PVT60 | 50Hz | 60 m³/h | -600 mbar | +600 mbar | 3 kW | Δ230V±10% Y400V±10% | / | 1420 rpm | 75 dB | 1 inch | 1 inch | 74 kg | 731*340*340 mm |
| 60Hz | 72 m³/h | 3.6 kW | 1710 rpm | ||||||||||
| PVT80 | 50Hz | 80 m³/h | -600 mbar | +600 mbar | 4 kW | Δ230V±10% Y400V±10% | / | 1420 rpm | 75 dB | 1 inch | 1 inch | 79 kg | 731*340*340 mm |
| 60Hz | 96 m³/h | 4.8 kW | 1710 rpm | ||||||||||
| PVT100 | 50Hz | 100 m³/h | -600 mbar | +600 mbar | 5.5 kW | Δ230V±10% Y400V±10% | / | 1430 rpm | 77 dB | 1½ inch | 1½ inch | 129 kg | 925*460*382 mm |
| 60Hz | 120 m³/h | 6.6 kW | 1720 rpm | ||||||||||
| PVT140 | 50Hz | 140 m³/h | -600 mbar | +600 mbar | 7.5 kW | Δ230V±10% Y400V±10% | / | 1430 rpm | 78 dB | 1½ inch | 1½ inch | 140 kg | 925*460*382 mm |
| 60Hz | 168 m³/h | 9 kW | 1720 rpm | ||||||||||
| PVT200 | 50Hz | 200 m³/h | -500 mbar | +500 mbar | 5.5 kW | Δ230V±10% Y400V±10% | / | 960 rpm | 75 dB | 2½ inch | 2½ inch | 280 kg | 1210*612*527 mm |
| 60Hz | 240 m³/h | 6.6 kW | 1150 rpm | 77 dB | |||||||||
| PVT250 | 50Hz | 250 m³/h | -500 mbar | +500 mbar | 7.5 kW | Δ230V±10% Y400V±10% | / | 960 rpm | 81 dB | 2½ inch | 2½ inch | 312 kg | 1210*612*527 mm |
| 60Hz | 300 m³/h | 9 kW | 1150 rpm | ||||||||||
| PVDT60 | 50Hz | 60 m³/h | -600 mbar | +600 mbar | 3 kW | Δ230V±10% Y400V±10% | / | 1420 rpm | 75 dB | 1 inch ¾ inch | 1 inch | 74 kg | 729*355*331 mm |
| 60Hz | 72 m³/h | 3.6 kW | 1710 rpm | ||||||||||
| PVDT80 | 50Hz | 80 m³/h | -600 mbar | +600 mbar | 4 kW | Δ230V±10% Y400V±10% | / | 1420 rpm | 75 dB | 1 inch ¾ inch | 1 inch | 79 kg | 731*355*331 mm |
| 60Hz | 96 m³/h | 4.8 kW | 1710 rpm | ||||||||||
| PVDT100 | 50Hz | 100 m³/h | -600 mbar | +600 mbar | 5.5 kW | Δ230V±10% Y400V±10% | / | 1430 rpm | 77 dB | 1½ inch 1 inch | 1½ inch | 129 kg | 895*470*382 mm |
| 60Hz | 120 m³/h | 6.6 kW | 1720 rpm | ||||||||||
| PVDT140 | 50Hz | 140 m³/h | -600 mbar | +600 mbar | 7.5 kW | Δ230V±10% Y400V±10% | / | 1430 rpm | 78 dB | 1½ inch 1 inch | 1½ inch | 140 kg | 926*470*382 mm |
| 60Hz | 168 m³/h | 9 kW | 1720 rpm | ||||||||||
Application:
 |  |  |
| CNC Router / Woodworking | Printing And Paper Industry | Mechanical Engineering |
 |  |  |
Semiconductor Industry | Energy Delivery | Plastics Industry |
