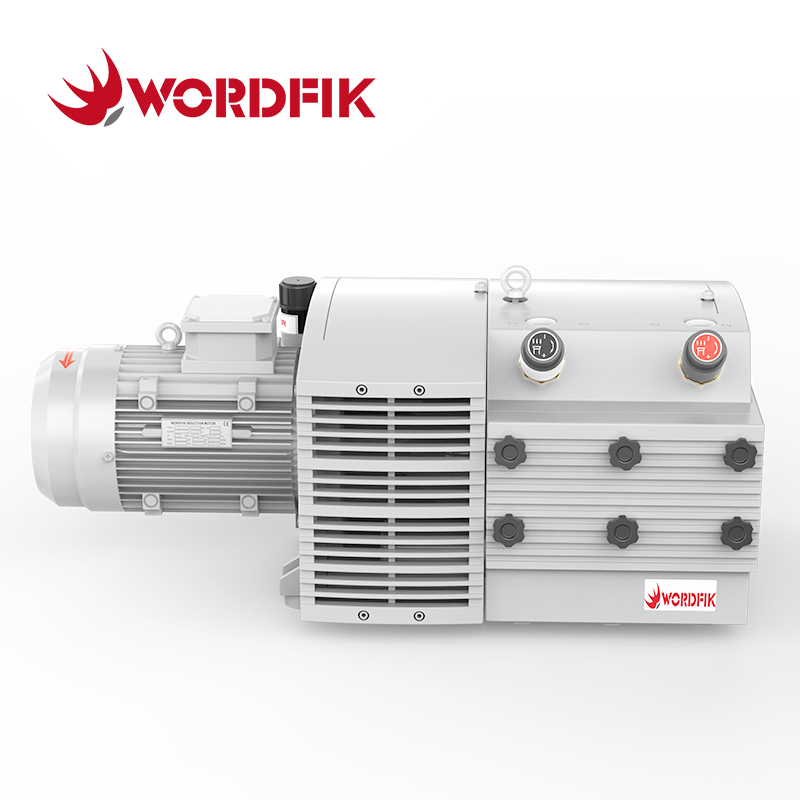

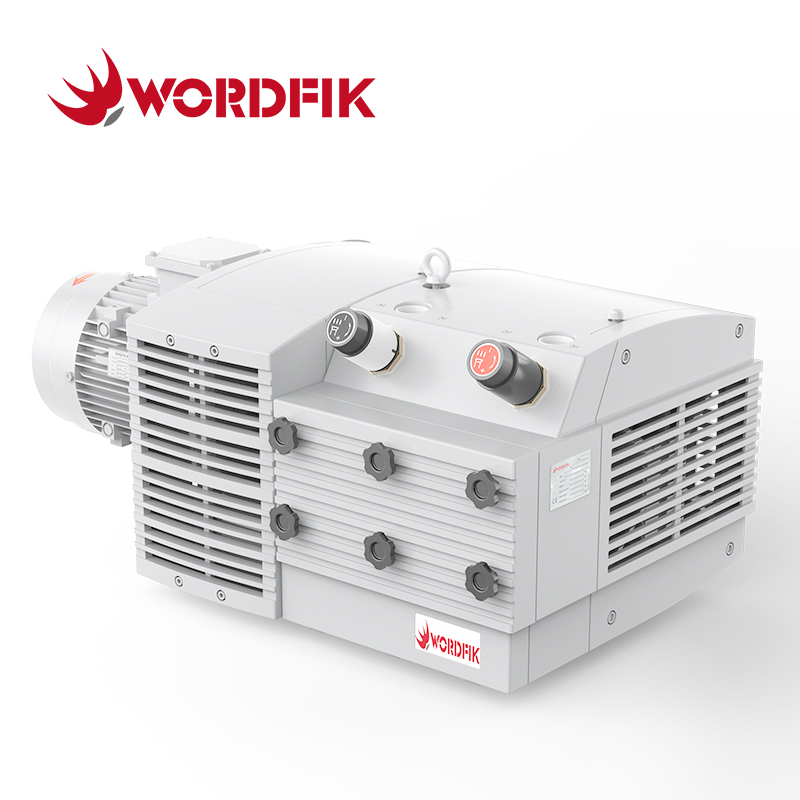

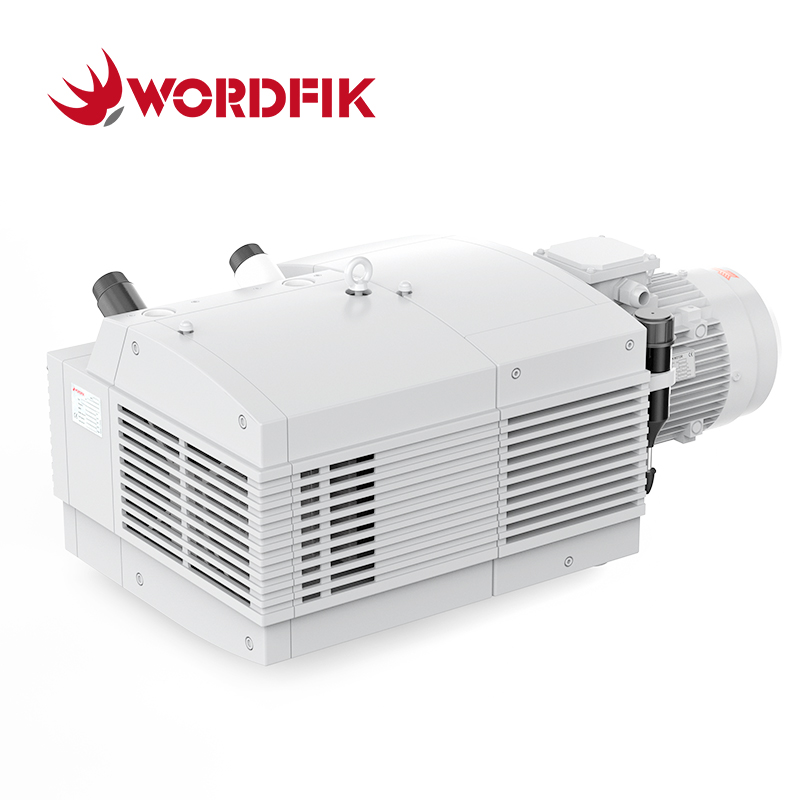

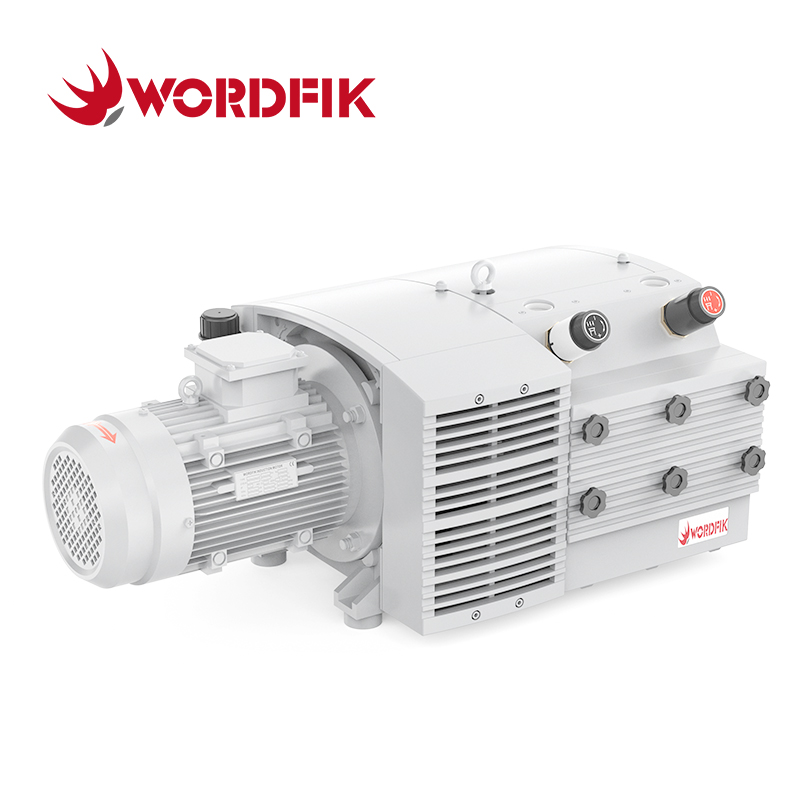

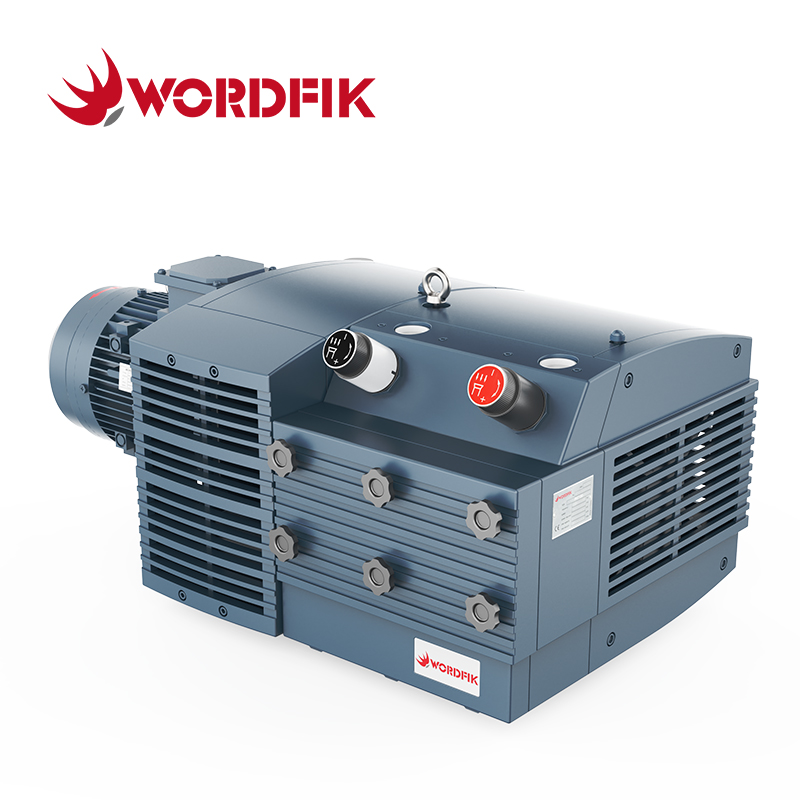

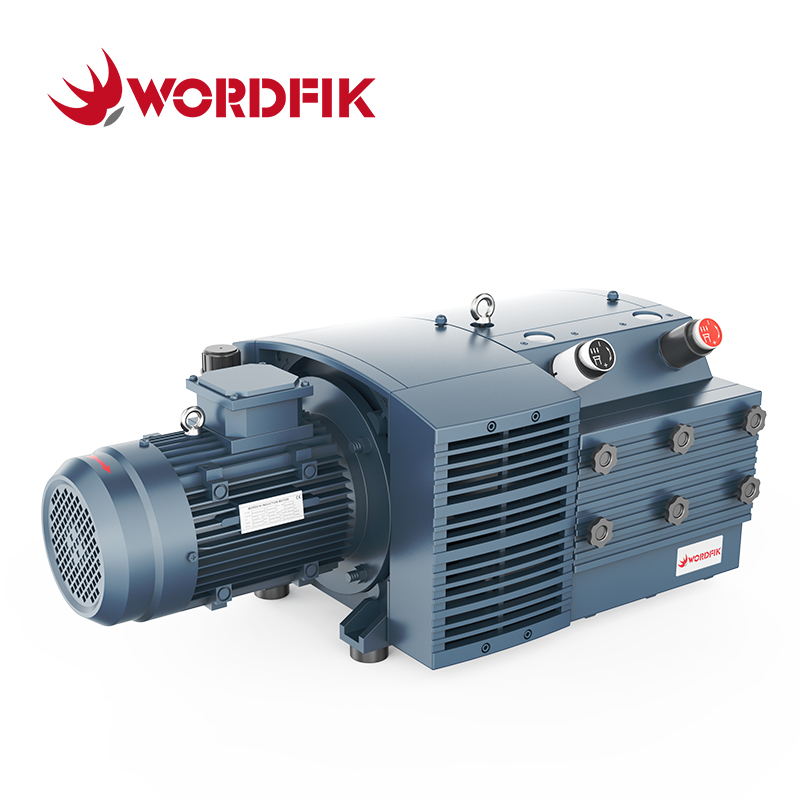

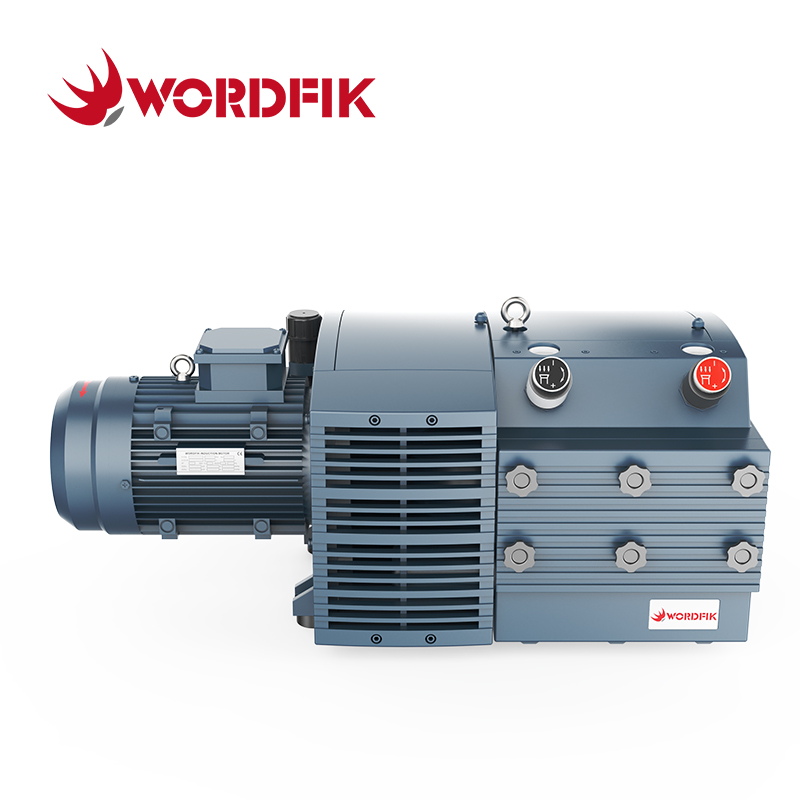

The Wordfik PVT100 dry rotary vane vacuum & pressure combined pump delivers 100m³/h (50Hz, 5.5kW) or 120m³/h (60Hz, 6.6kW) pumping speed for simultaneous vacuum and pressure generation within ±600 mbar. It operates with oil-free technology using self-lubricating vanes, ensuring low maintenance costs and long service life. Designed for printing, CNC woodworking, and plastics industries.
Features:
• Multi-Function
• 100% Oil-Free Operation
• Clean and No Pollution
• Minimal Maintenance
• Long Service Life
• Stable and Continuous Operation
| PVT100 Technical Specifications | ||
| 50Hz | 60Hz | |
| Pumping Speed | 100 m³/h | 120 m³/h |
| Vacuum | -600 mbar | |
| Pressure | +600 mbar | |
| Motor Power | 5.5 kW | 6.6 kW |
| Motor Voltage | Δ 230V±10% ; Y 400V±10% (3ph) | |
| Motor Speed | 1430 rpm | 1720 rpm |
| Noise Level | 77 dB(A) | |
| Inlet Connection | 1½ inch | |
| Pressure Connection | 1½ inch | |
| Weight | 129 kg | |
| Dimensions | 895*460*382 mm | |
*1) Contact us for other voltage options. *2) Instruction manual. *3) Performance curves. *4) 3D model diagram.
Application:
 |  |  |
| CNC Router / Woodworking | Printing And Paper Industry | Plastics Industry |
 |  |  |
| Semiconductor Industry | Energy Transmission | Mechanical Engineering |
| Wordfik PVT Series Dry Rotary Vane Vacuum Pressure Compound Pumps ( Quick Model Selector ) | ||||||
| Model | Motor Power | Pumping Speed | Vacuum | Pressure | ||
| 50Hz | 60Hz | 50Hz | 60Hz | |||
| PVT16 | 0.75 kW | 0.9 kW | 16 m³/h | 20 m³/h | -600 mbar | +600 mbar |
| PVT25 | 1.25 kW | 1.5 kW | 25 m³/h | 30 m³/h | ||
| PVT40 | 1.85 kW | 2.2 kW | 40 m³/h | 48 m³/h | ||
| PVT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | ||
| PVT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
| PVT200 | 5.5 kW | 6.6 kW | 200 m³/h | 240 m³/h | -500 mbar | +500 mbar |
| PVT250 | 7.5 kW | 9 kW | 250 m³/h | 300 m³/h | ||
| PVDT60 | 3 kW | 3.6 kW | 60 m³/h | 72 m³/h | -600 mbar | +600 mbar |
| PVDT80 | 4 kW | 4.8 kW | 80 m³/h | 96 m³/h | ||
| PVDT100 | 5.5 kW | 6.6 kW | 100 m³/h | 120 m³/h | ||
| PVDT140 | 7.5 kW | 9 kW | 140 m³/h | 168 m³/h | ||
