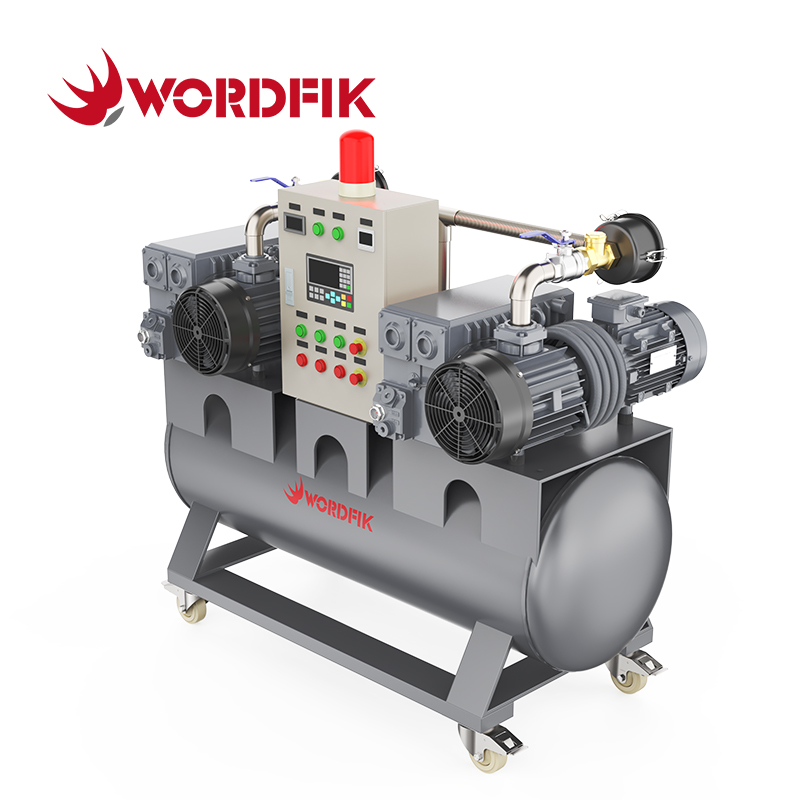

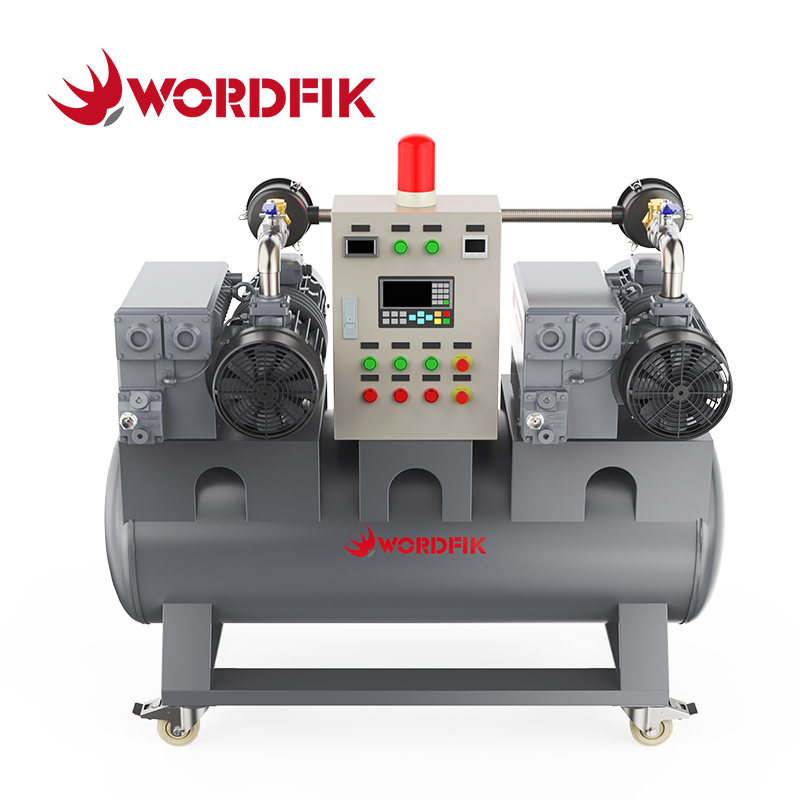

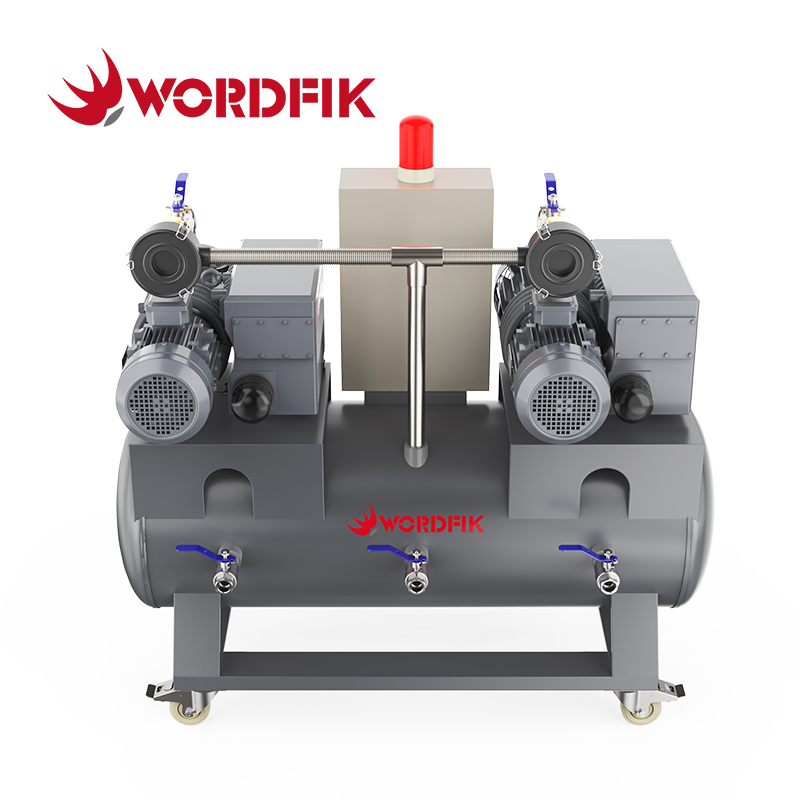

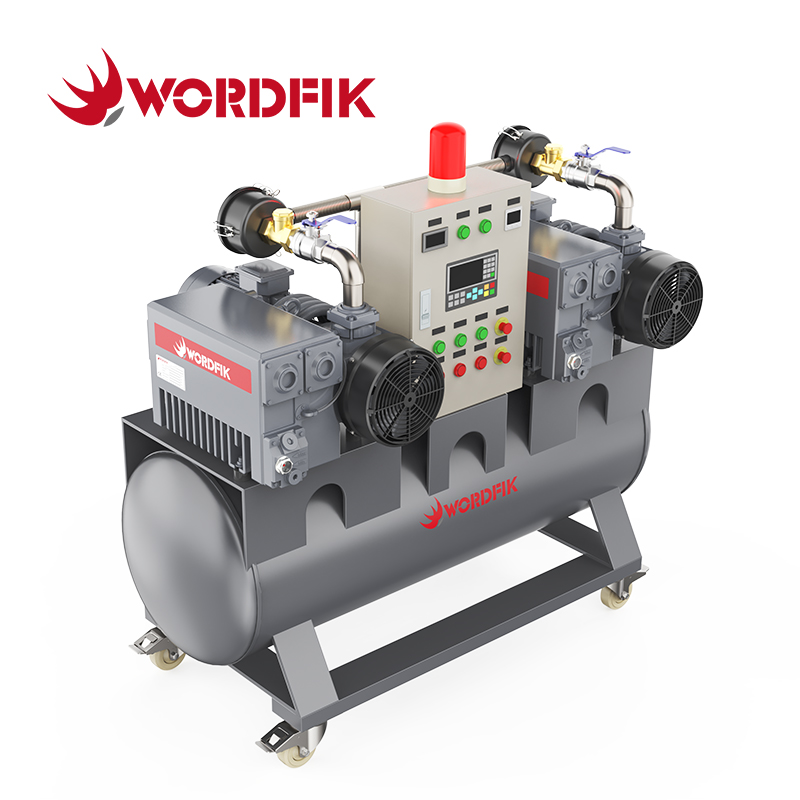

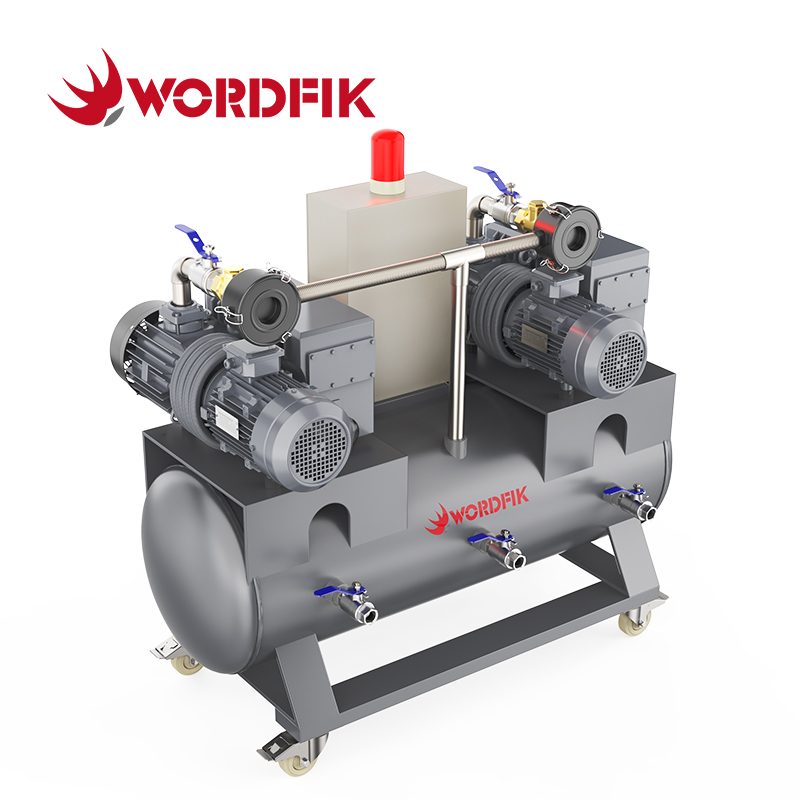

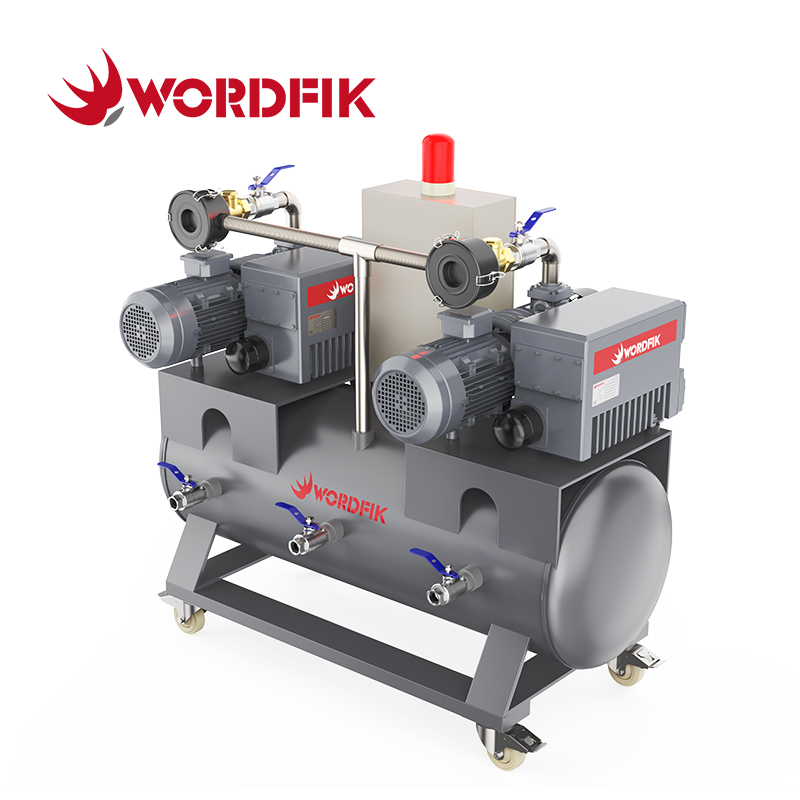

Wordfik presents its advanced line of Oil-Sealed Rotary Vane Multi-Pump Vacuum Systems, engineered to deliver unmatched reliability and efficiency for your most critical production environments. Our systems are pre-assembled, pre-piped, and ready for immediate integration into your facility.
Designed to centralize your vacuum supply, these modular units remove heat, noise, and oil mist from the production floor, creating a safer and more comfortable workspace for operators. Equipped with intelligent monitoring and alarm systems, each unit continuously tracks critical operating parameters—including phase loss, overheating, and oil level—providing real-time alerts to prevent unplanned downtime and protect equipment longevity. Whether you require a single pump or a scalable multi-pump configuration (up to 3 pumps), our systems deliver a “plug-and-play” solution that reduces installation time and ensures consistent vacuum performance.
Features:
Plug-and-Play Modular Design : Supplied ready-to-use with a receiver tank, integrated electrical cabinet, and pre-filters. Simply connect power and process lines to start operation.
Intelligent Monitoring & Alarms : Built-in sensors and controllers provide real-time monitoring for phase loss, overheating, oil level, and overpressure. Instant alerts enable rapid response, minimizing downtime and preventing equipment damage.
Significant Energy Savings : Intelligent pressure regulation and automatic pump sequencing ensure that only the necessary pumps run to meet demand, drastically reducing energy consumption compared to single large pump setups.
Robust & Reliable Construction : Built with rugged, industrial-grade components designed for 24/7 operation in harsh conditions. Includes safety features such as oil thermal switches, oil level monitors, and overpressure indicators as standard.
Optimized Work Environment : Centralized design isolates operational noise and oil emissions, ensuring low noise levels and a clean production area.
Easy Maintenance : Each pump can be isolated via independent valves, allowing for on-the-fly servicing without shutting down the entire vacuum system.
User-Friendly Monitoring : Equipped with advanced controllers (Basic PLC or optional Full-Feature controller) for real-time data display, maintenance alerts, and operational control.
| Wordfik Oil-Sealed Roatry Vane Multi-Pump Vacuum Systems | ||||||||
| Model | Number of Pumps | Pump Model | Pumping Speed | Ultimate Pressure | Receiver Tank | Installed Power | Controller | Additional Customizations |
| OPMS-P1-25-60 | 1 | PVX25 | 24-28 m³/h | 0.5 mbar | 60 L | 0.75-0.9 kW | PLC (customizable logic, alarm settings, run hour equalization, start/stop limits, pressure setpoints) |
|
| OPMS-P1-40-60 | 1 | PVX40 | 40-48 m³/h | 0.5 mbar | 60 L | 1.1-1.5 kW | ||
| OPMS-P1-63-160 | 1 | PVX40 | 63-78 m³/h | 0.5 mbar | 160 L | 1.5-2.2 kW | ||
| OPMS-P1-63-300 | 1 | PVX63 | 63-78 m³/h | 0.5 mbar | 300 L | 1.5-2.2 kW | ||
| OPMS-P2-63-160 | 2 | PVX63 | 120-155 m³/h | 0.5 mbar | 160 L | 3-4.4 kW | ||
| OPMS-P2-63-300 | 2 | PVX63 | 120-155 m³/h | 0.5 mbar | 300 L | 3-4.4 kW | ||
| OPMS-P3-63-500 | 3 | PVX63 | 180-200 m³/h | 0.5 mbar | 500 L | 4.5-6.6 kW | ||
| OPMS-P3-63-1000 | 3 | PVX63 | 180-200 m³/h | 0.5 mbar | 1000 L | 4.5-6.6 kW | ||
| OPMS-P1-100-160 | 1 | PVX100 | 100-120 m³/h | 0.5 mbar | 160 L | 2.2-3 kW | ||
| OPMS-P1-100-300 | 1 | PVX100 | 100-120 m³/h | 0.5 mbar | 300 L | 2.2-3 kW | ||
| OPMS-P1-100-500 | 1 | PVX100 | 100-120 m³/h | 0.5 mbar | 500 L | 2.2-3 kW | ||
| OPMS-P2-100-160 | 2 | PVX100 | 195-235 m³/h | 0.5 mbar | 160 L | 4.4-6 kW | ||
| OPMS-P2-100-300 | 2 | PVX100 | 195-235 m³/h | 0.5 mbar | 300 L | 4.4-6 kW | ||
| OPMS-P2-100-500 | 2 | PVX100 | 195-235 m³/h | 0.5 mbar | 500 L | 4.4-6 kW | ||
| OPMS-P2-100-1000 | 2 | PVX100 | 195-235 m³/h | 0.5 mbar | 1000 L | 4.4-6 kW | ||
| OPMS-P3-100-500 | 3 | PVX100 | 290-340 m³/h | 0.5 mbar | 500 L | 6.6-9 kW | ||
| OPMS-P3-100-1000 | 3 | PVX100 | 290-340 m³/h | 0.5 mbar | 1000 L | 6.6-9 kW | ||
| OPMS-P1-202-500 | 1 | PVX202 | 200-240 m³/h | 0.5 mbar | 500 L | 4-5.5 kW | ||
| OPMS-P1-202-1000 | 1 | PVX202 | 200-240 m³/h | 0.5 mbar | 1000 L | 4-5.5 kW | ||
| OPMS-P2-202-500 | 2 | PVX202 | 360-450 m³/h | 0.5 mbar | 500 L | 8-11 kW | ||
| OPMS-P2-202-1000 | 2 | PVX202 | 360-450 m³/h | 0.5 mbar | 1000 L | 8-11 kW | ||
| OPMS-P3-202-1000 | 3 | PVX202 | 540-660 m³/h | 0.5 mbar | 1000 L | 12-16.5 kW | ||
| OPMS-P1-302-500 | 1 | PVX302 | 300-360 m³/h | 0.5 mbar | 500 L | 7.5 kW | ||
| OPMS-P1-302-1000 | 1 | PVX302 | 300-360 m³/h | 0.5 mbar | 1000 L | 7.5 kW | ||
| OPMS-P2-302-500 | 2 | PVX302 | 560-660 m³/h | 0.5 mbar | 500 L | 15 kW | ||
| OPMS-P2-302-1000 | 2 | PVX302 | 560-660 m³/h | 0.5 mbar | 1000 L | 15 kW | ||
| OPMS-P3-302-1000 | 3 | PVX302 | 840-1000 m³/h | 0.5 mbar | 1000 L | 22.5 kW | ||
* Contact Us for Custom Systems – 3D Design to Delivery
Application:
 |  |  |
| Hospital /Medical Vacuum system | Food & Beverage | Vacuum Forming |
 |  |  |

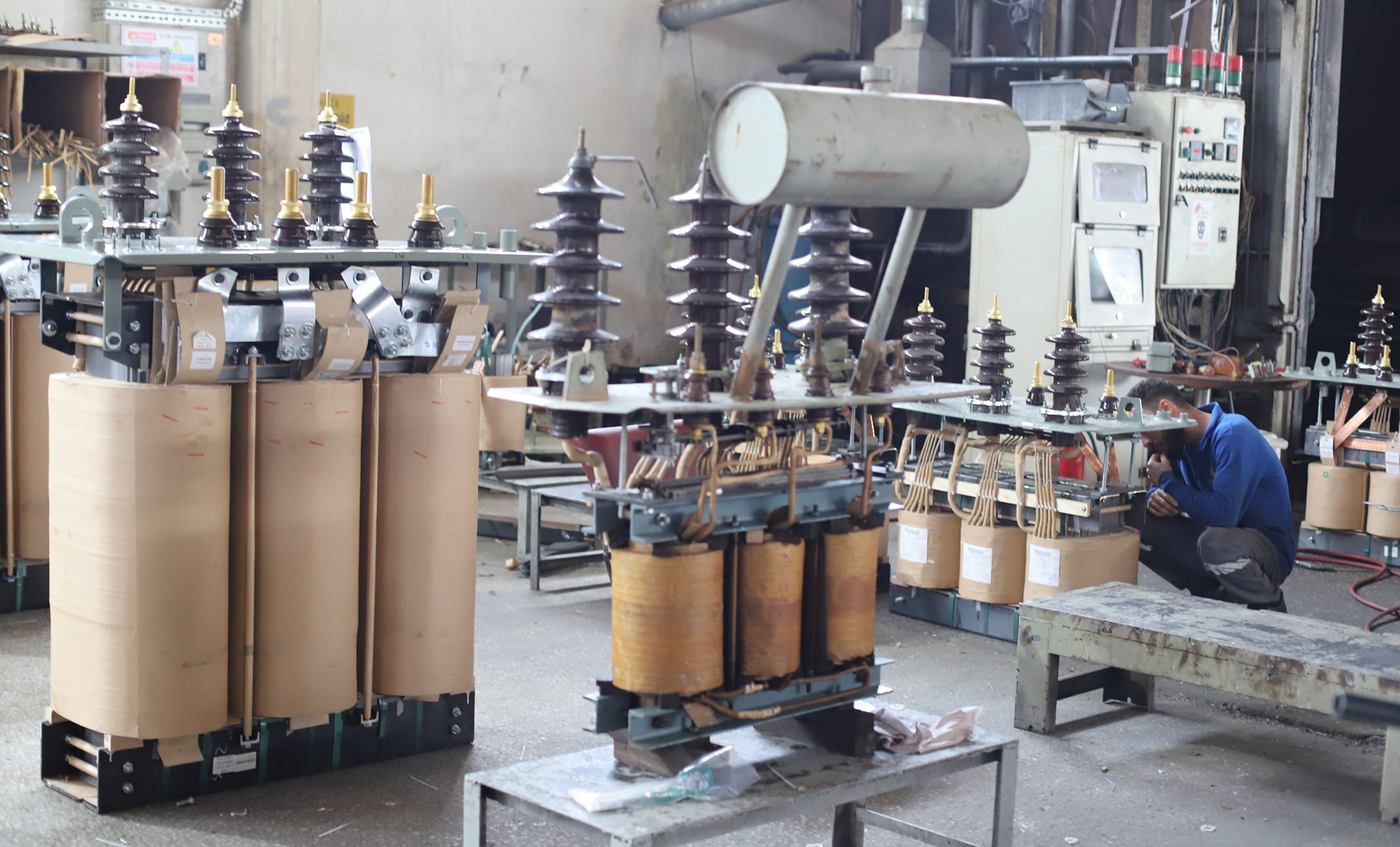

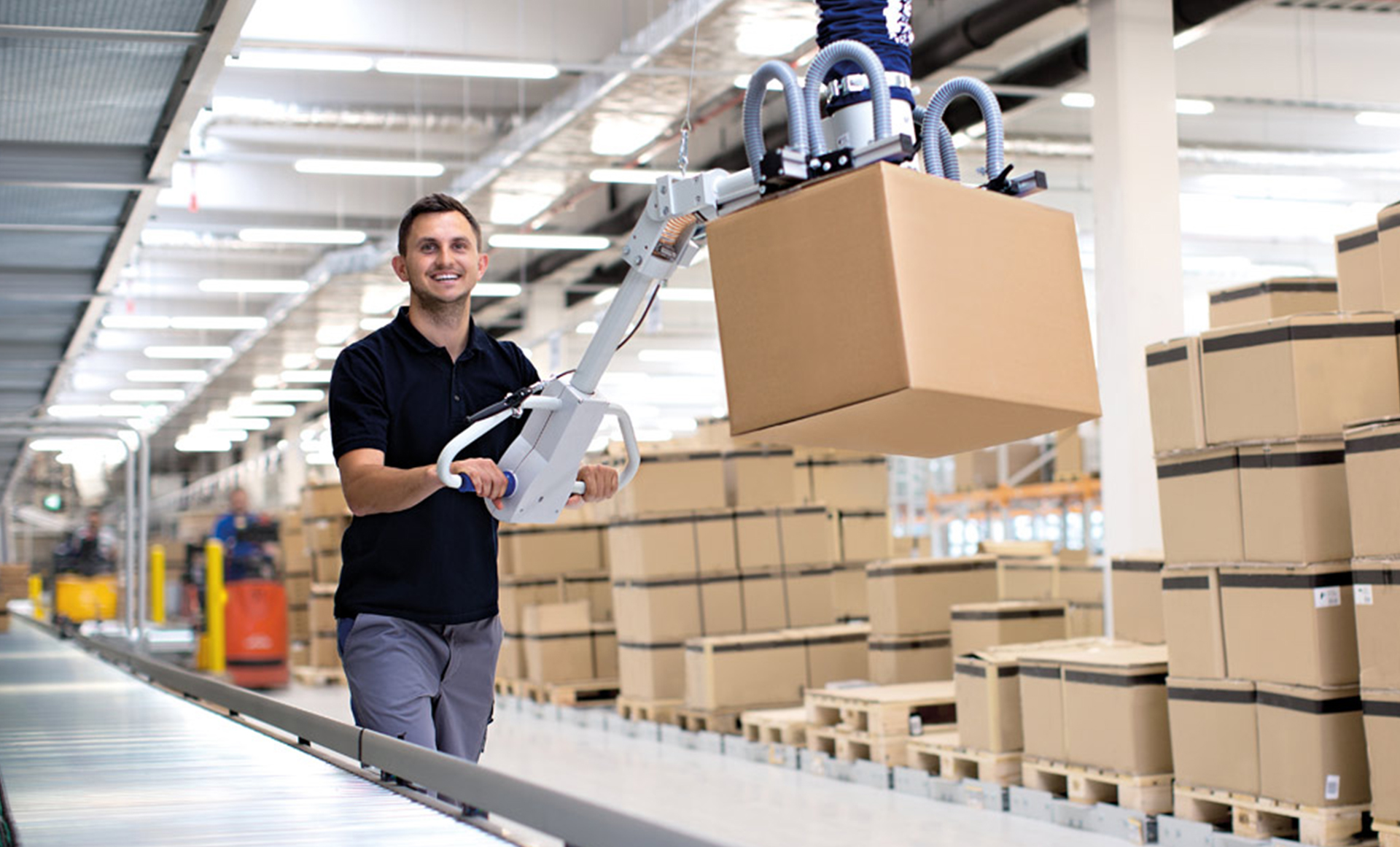

| Plastic Industry | Transformer Manufacturing | Vacuum Lifting System |
