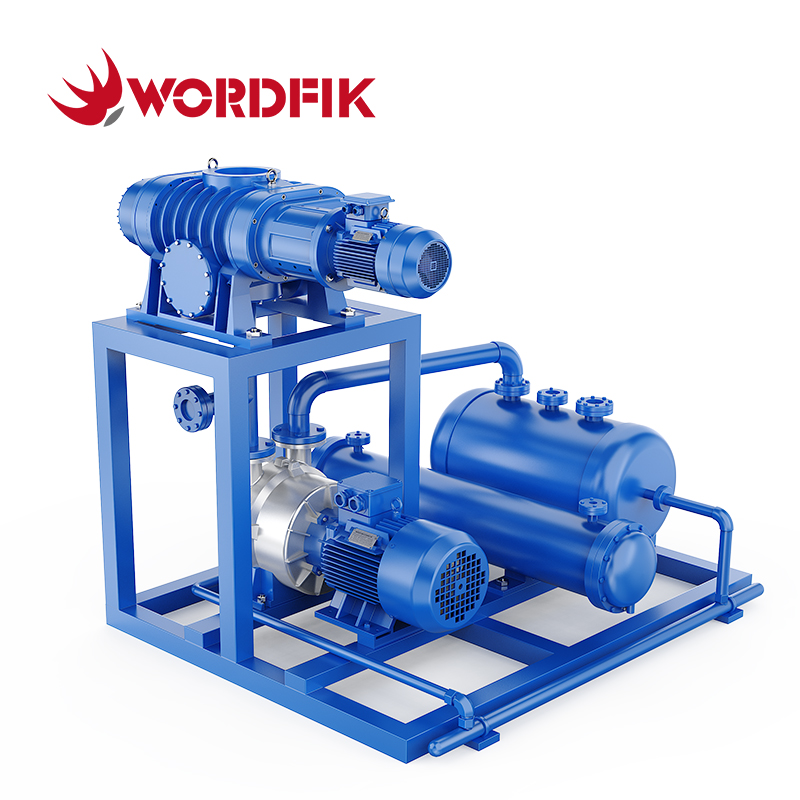

Where harsh, wet, or solvent-laden vapors challenge conventional vacuum systems, our Water Ring-Roots Vacuum System stands resilient. This integrated system is engineered to master applications involving large volumes of condensable vapors, explosive gases, or particulate-laden flows, providing a robust and intrinsically safer pumping solution. By combining a Roots pump with a liquid ring vacuum pump as its backing stage, it delivers exceptional performance where oil-sealed or dry pumps would falter due to contamination, emulsification, or safety concerns. The result is a reliable, low-maintenance workhorse for the most demanding industrial environments.
The system operates on a synergistic principle. The liquid ring pump (typically using water as the sealing fluid) first creates a stable, coarse vacuum. Its unique isothermal compression process keeps gas temperatures low, making it exceptionally safe for handling flammable or explosive media. This stage also effortlessly handles condensable vapors, which simply dissolve into the sealing water. The Roots pump, positioned as the main booster, then takes over, dramatically increasing the pumping speed and improving the system's ultimate vacuum level. This combination overcomes the speed limitations of a standalone water ring pump and the vapor-handling constraints of other high-speed pumps. The system is remarkably tolerant, capable of processing gases containing dust, moisture, or even small solid particles without risk of damage.
A key advantage of this system is its inherent cleanliness and environmental compatibility. Since the compression chamber is sealed with water (or other compatible liquids), there is zero risk of oil back-streaming or hydrocarbon contamination into the process. This makes it ideal for food, pharmaceutical, and chemical applications where product purity is paramount. Additionally, the design is renowned for its mechanical simplicity, leading to operational reliability, ease of maintenance, and a long service life with minimal wearing parts.
Features:
• Superior Handling of Complex Media
• Contamination-Free Operation
• Robust and Reliable Design
• Safe, Isothermal Compression
• Energy-Efficient Boosting
| Wordfik Water Ring Roots Vacuum System | |
| Pre-Stage Pump | Water Ring Vacuum Pumps |
| Pumping Speed of the Pre-Stage Pump | 27-500 m³/h |
| Ultimate Pressure of the Pre-Stage Pump | 33 mbar |
| Main Pump | Roots Vacuum Pumps |
| Achievable Vacuum Level | 4 mbar |
| Contoller | PLC (Customizable Features , Multi-language Support ) |
| Auxiliary System | Customizable |
* Contact Us for Custom Systems – 3D Design to Delivery
Application:
 |  |  |

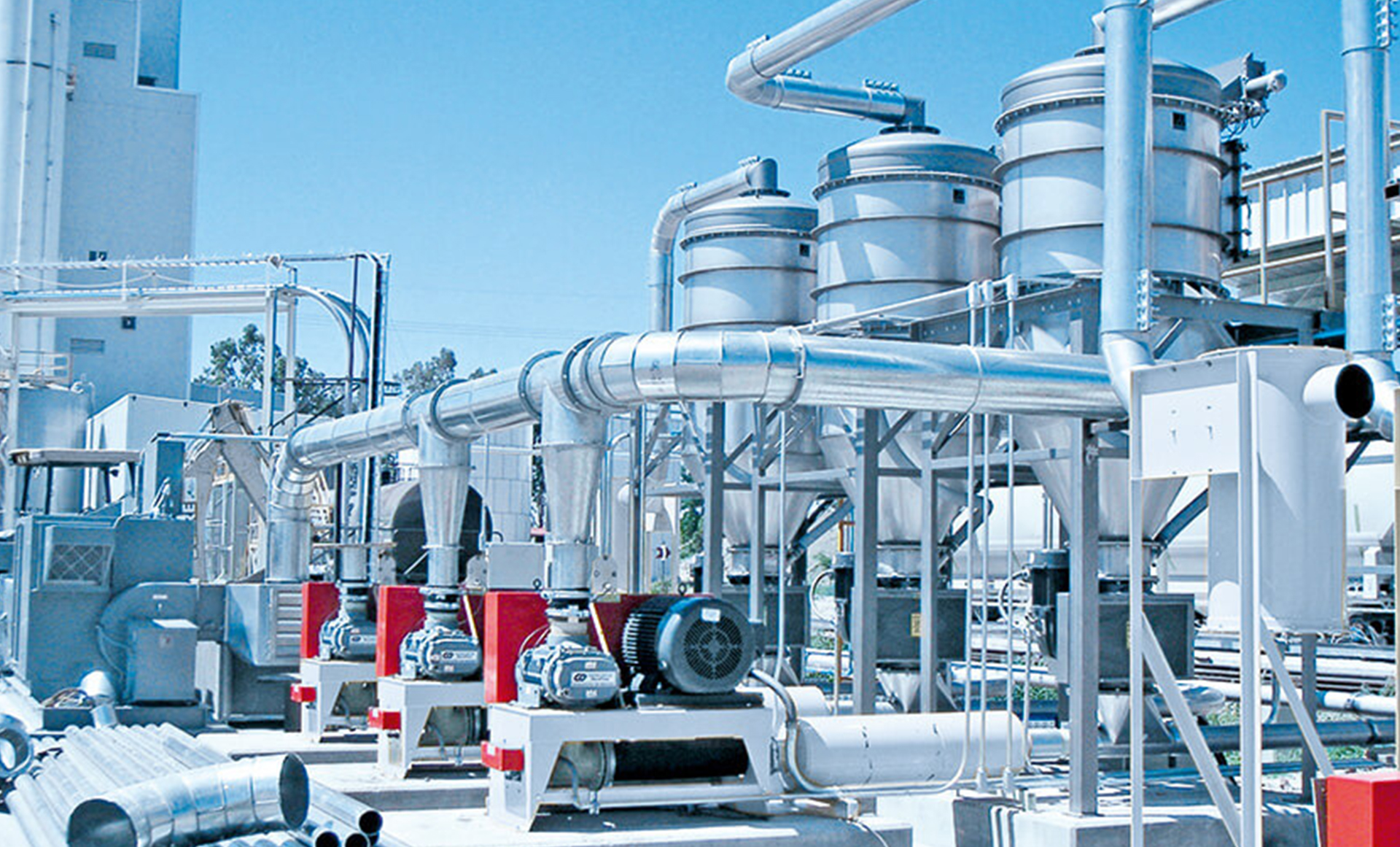

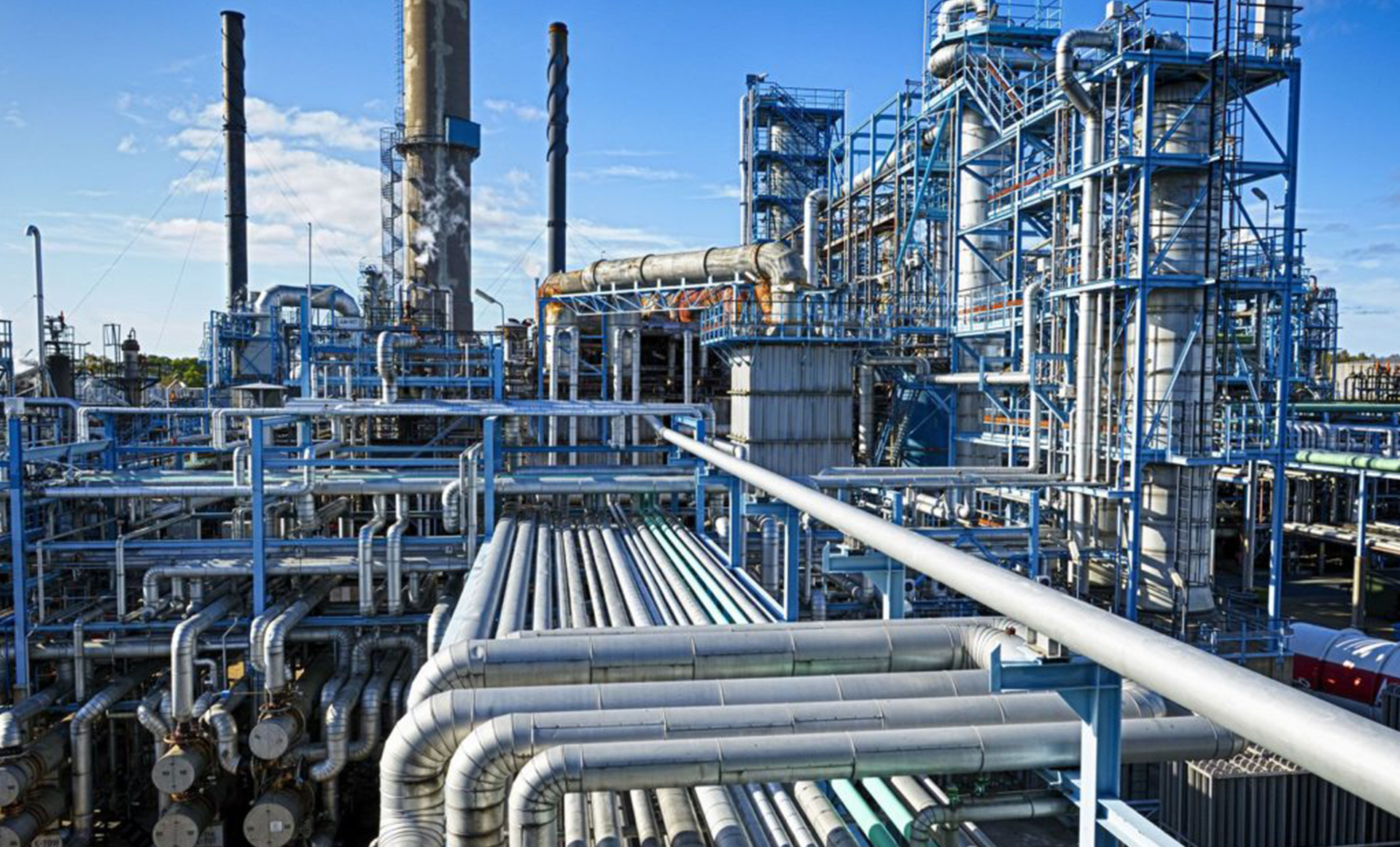

| Chemical & Petrochemical | Pharmaceuticals | Energy Delivery |
 |  |  |

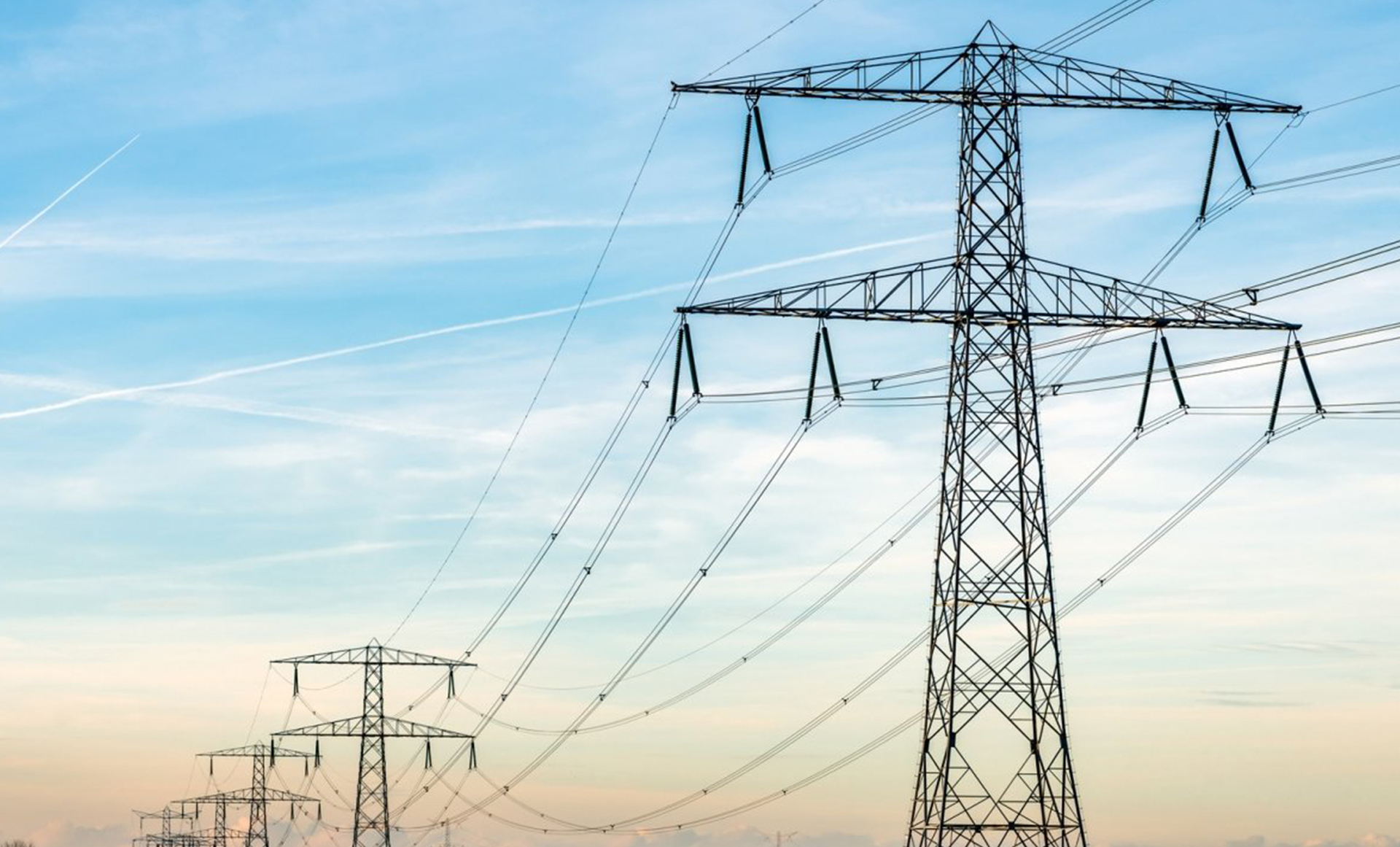

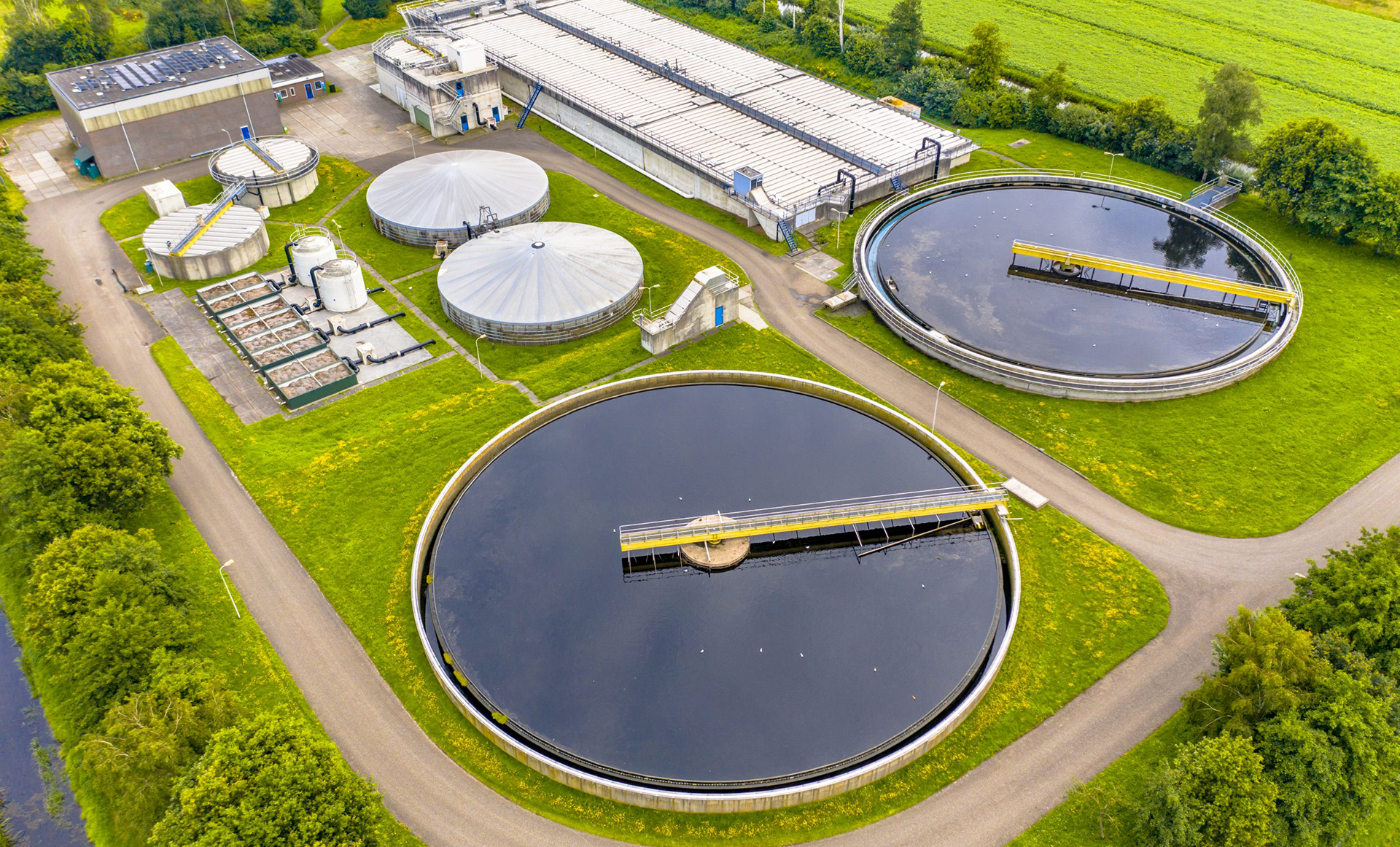

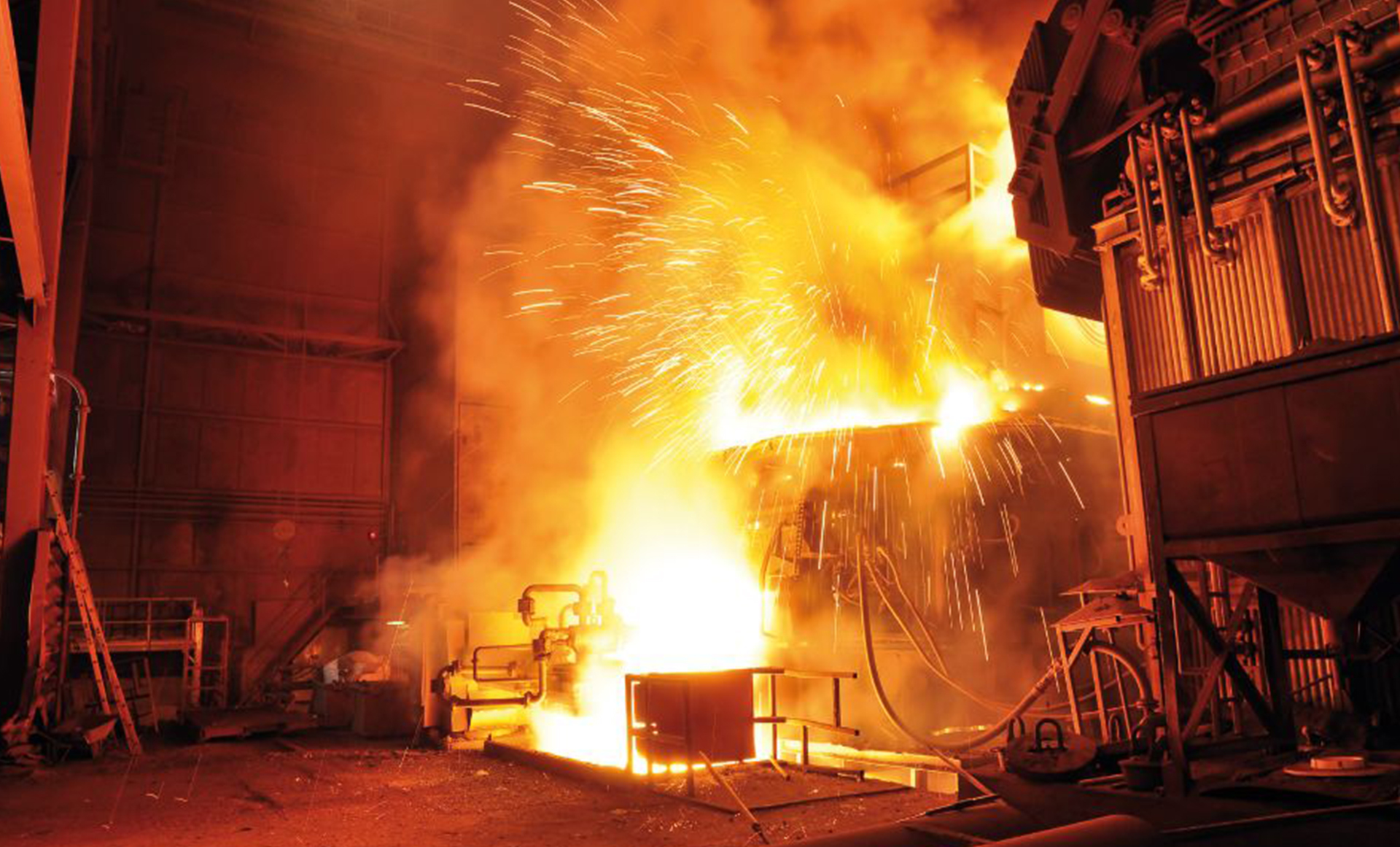

| Electric Power | Environmental | Metal Smelting Degassing |
