The global transition to solar energy is not just driven by sunlight, but by precision engineering behind the scenes. At the heart of manufacturing high-efficiency, reliable solar panels lies a critical but often overlooked technology: industrial vacuum systems. From creating the purest silicon crystals to sealing the final module, vacuum processes are indispensable across the photovoltaic (PV) supply chain.
This comprehensive guide explains how vacuum pump technology enables modern solar manufacturing, detailing its applications, technical requirements, and how selecting the right system impacts both panel performance and production economics.
Solar panel manufacturing demands extreme control over environmental contaminants. Even minute levels of impurities or trapped gases can drastically reduce the conversion efficiency and long-term reliability of a photovoltaic cell. Vacuum technology provides the controlled, clean environments necessary for key processes, directly influencing the panel's power output, durability, and ultimately, the levelized cost of electricity (LCOE).
The journey begins with creating the ultra-pure silicon substrate.
Process: Crystal Growth (Czochralski Method)

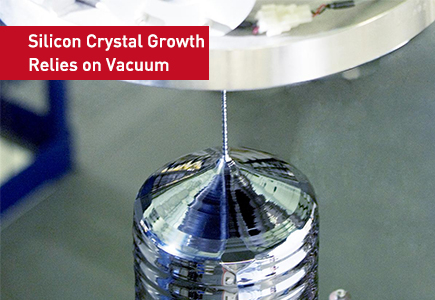

Role of Vacuum: High-purity polycrystalline silicon is melted in a quartz crucible. A vacuum environment is first used to evacuate the furnace chamber, removing atmospheric gases (oxygen, nitrogen) that would introduce impurities. Subsequently, an inert gas (like argon) is often introduced at low pressure. The vacuum system maintains this controlled atmosphere, preventing oxidation and carrying away volatile impurities released during the melt, resulting in flawless monocrystalline ingots.
Vacuum Requirements: Rough to medium vacuum range. Pump systems must handle initial high gas loads and potential silicon oxide fumes.
Process: Silicon Ingot Casting (for Multicrystalline)
Role of Vacuum: Similar to crystal pulling, vacuum is used to create an inert, clean environment inside the casting furnace to produce multicrystalline silicon blocks, ensuring material purity.
This is the most vacuum-intensive stage, where the electrical properties of the cell are engineered.
Process: Physical Vapor Deposition (PVD) & Chemical Vapor Deposition (CVD)
Anti-Reflection Coatings (SiNₓ): Applied via PECVD. Vacuum ensures uniform coating and precise film properties to maximize light capture.
Passivation Layers (Al₂O₃, SiNₓ): Critical for PERC and TOPCon cells. Vacuum deposition creates layers that reduce electron recombination at the silicon surface.
Transparent Conductive Oxides (TCO): Essential for HJT and thin-film cells. Sputtering (a PVD process) in high vacuum deposits these conductive, transparent films.
Role of Vacuum: These are the cornerstone processes for applying thin-film layers that define modern high-efficiency cells (PERC, TOPCon, HJT).
Vacuum Requirements: High to ultra-high vacuum (UHV). These processes demand extremely clean, particle-free environments with base pressures often reaching 10⁻⁶ mbar or lower. Pumping systems must be oil-free to prevent hydrocarbon contamination that would ruin the delicate film properties and cell efficiency.
Process: Etching and Texturing
Role of Vacuum: Vacuum is used in certain dry etching processes (like RIE) to create the microscopic textured surface on silicon wafers that traps more light.
Vacuum ensures the final product's durability for 25+ years in the field.
Process: Lamination

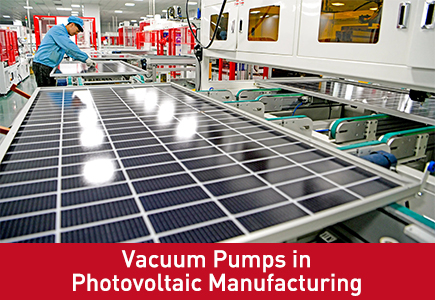

Role of Vacuum: The assembled cell matrix (strings) is sandwiched between layers of EVA and glass/backsheet. This "layup" is placed in a laminator. The chamber is evacuated to a rough vacuum (~1-10 mbar) to remove all air bubbles and moisture before heat is applied to cure the EVA. A perfect vacuum is critical to prevent delamination, moisture ingress, and hot spots, which are leading causes of module failure.
Vacuum Requirements: Rough vacuum, but with very high pumping speed to achieve the target pressure quickly across a large chamber area, ensuring short cycle times and high throughput.
The diverse requirements across the chain mean there is no "one-size-fits-all" pump. Here’s a breakdown by key process stage:
| Manufacturing Stage | Primary Process | Key Vacuum Challenges | Recommended Pump Technology | Operational & GEO Considerations |
| Silicon Crystal Growth | Melt & Pulling / Casting | High initial gas load, heat, silicon fumes | Robust Rotary Vane Pumps (oil-sealed), Dry Screw Pumps | Demands reliability for continuous runs (120+ hours). Dry screw pumps reduce contamination risk and disposal costs, appealing to high-volume producers. |
| Cell Fabrication (PVD/CVD) | Thin-Film Deposition | Ultra-clean environment, oil-free operation, stable UHV | Multi-Stage Systems: Dry Scroll Pumps + Turbomolecular Pumps (for UHV) | Absolute oil-free operation is mandatory. Systems must be integrated with the tool's sophisticated control. Expertise in supporting high-tech fab environments is crucial. |
| Module Lamination | Encapsulation | Fast pump-down of large volume, handling EVA outgassing | High-Speed Liquid Ring Pumps, Claw Pumps, Large Dry Screw Pumps | Speed equals throughput. Energy efficiency of dry pumps vs. water consumption of LRPs is a key TCO calculation for large factories. |
At Wordfik, we understand that in PV manufacturing, vacuum performance is directly linked to your key metrics: cell efficiency (%), module yield (%), and production cost ($/W).
Process-Optimized Solutions: We don't just supply pumps; we provide vacuum systems tailored to the specific gas loads, pressure profiles, and cleanliness requirements of crystal growth, coating, or lamination.
Maximizing Uptime, Minimizing TCO: Our dry vacuum technologies (screw, claw) are designed to deliver high reliability in challenging environments, reducing unscheduled downtime and eliminating the cost and environmental burden of process oil.
Global Support for a Global Industry: Whether your fab is in a established solar hub or an emerging manufacturing region, our technical support network is structured to provide rapid, expert assistance to keep your production line running at peak efficiency.
As photovoltaic technologies advance towards higher efficiencies with TOPCon, HJT, and perovskite tandems, the requirements for vacuum precision and cleanliness will only become more stringent. The choice of vacuum technology partner is a strategic decision that impacts product performance, manufacturing cost, and scalability.
Investing in a vacuum solution engineered for the specific demands of solar manufacturing is an investment in the quality, reliability, and competitiveness of your solar panels in the global marketplace.
Q1: Why are oil-free vacuum pumps critical for solar cell coating (PVD/CVD) processes?
Even trace amounts of hydrocarbon backstreaming from oil-lubricated pumps can contaminate the deposition chamber. This creates defects in the nano-scale thin films, drastically reducing their passivation or conductive properties and thus the cell's conversion efficiency. Oil-free pumps eliminate this risk entirely.
Q2: For a solar module laminator, is faster pumping speed always better?
While speed is crucial for cycle time, the uniformity of evacuation across the entire laminate area is equally important. An improperly designed system can create pressure gradients, leading to incomplete air removal and localized bubbles. The optimal solution balances high speed with effective chamber and piping design.
Q3: How does vacuum technology contribute to next-generation solar cells like perovskites?
Perovskite solar cells are extremely sensitive to moisture and oxygen. Their deposition often requires glovebox-integrated vacuum systems or highly controlled inert atmosphere processing, where vacuum pumps are essential for initial chamber evacuation and maintaining purity. The evolution of vacuum technology will be key to making these promising cells commercially viable.
