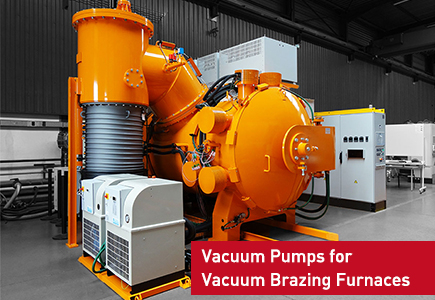

Vacuum Pumps for Vacuum Brazing Furnaces

Vacuum brazing furnaces are widely used in aerospace, automotive, heat exchanger manufacturing, stainless steel processing, and advanced materials industries. Unlike general heat treatment, vacuum brazing requires an extremely clean and stable vacuum environment to ensure proper filler metal flow, joint integrity, and metallurgical quality.

Vacuum pumps are therefore a critical process component, not just auxiliary equipment. This article explains how vacuum pumps are applied in vacuum brazing furnaces, which pump technologies are actually used, and how pumping systems are engineered for brazing-grade vacuum quality.

1. Why Vacuum Quality Is Critical in Vacuum Brazing

In vacuum brazing, the joint formation relies on:

• Capillary flow of molten filler metal

• Surface wetting without flux

• Minimal oxidation of base materials

To achieve this, the furnace must maintain:

• Very low residual oxygen content

• Stable pressure throughout the brazing temperature plateau

• Minimal hydrocarbon and oil vapor contamination

Even minor pressure fluctuations or contamination can result in:

• Poor wetting

• Voids or weak joints

• Inconsistent brazed seams

2. Typical Vacuum Requirements for Brazing Furnaces

Vacuum brazing furnaces generally operate at:

• 10⁻³ to 10⁻⁵ mbar (depending on material and filler alloy)

• Long high-temperature holding times

• Low gas load but high cleanliness demand

This places specific demands on the vacuum pumping system:

• Excellent leak tightness

• Clean vacuum generation

• Stable pumping during outgassing phases

3. Roughing Stage: Initial Furnace Evacuation

Oil-Lubricated Rotary Vane Vacuum Pumps

Oil-lubricated rotary vane vacuum pumps are commonly used as roughing pumps in vacuum brazing furnace systems.

Function

• Evacuate the chamber from atmospheric pressure

• Remove bulk air and moisture

• Prepare the system for high-vacuum pumping stages

Why They Are Used

• Reliable and predictable rough vacuum performance

• High pumping efficiency during initial evacuation

• Cost-effective for furnace manufacturers

In brazing applications, these pumps are always equipped with:

• High-efficiency oil mist filters

• Proper isolation valves
  to minimize oil vapor migration.

4. Booster Stage: Roots Vacuum Pumps

Roots Vacuum Pump Systems for Brazing Furnaces

Roots vacuum pumps are widely used in vacuum brazing furnaces to increase pumping speed in the transition from rough to high vacuum.

Role in Brazing Systems

• Significantly improve evacuation speed below ~10⁻¹ mbar

• Reduce time to reach brazing pressure

• Support stable vacuum during outgassing

Roots pumps are not used alone;  they operate in combination with a backing pump such as a rotary vane or dry screw pump.

5. High-Vacuum Support and Clean Vacuum Generation

Dry Screw Vacuum Pumps

Dry screw vacuum pumps are increasingly adopted in modern vacuum brazing furnace installations.

Key Advantages

• Fully oil-free compression chamber

• No hydrocarbon backstreaming

• High tolerance to metal outgassing products

• Suitable for long high-temperature cycles

Dry screw pumps are often selected when:

• Joint cleanliness is critical

• Aerospace or medical standards apply

• Furnace uptime and maintenance intervals must be maximized

High Vacuum Pumps (Diffusion / Turbo Molecular)

In applications requiring ultra-low residual gas levels, such as aerospace brazing or high-purity stainless steel components, high vacuum pumps may be added:

• Diffusion pumps (with proper trapping)

• Turbo molecular pumps (for cleaner systems)

These pumps are always backed by:

• Rotary vane or dry screw vacuum pumps

• Roots boosters for throughput optimization

6. Pumping System Architecture for Vacuum Brazing Furnaces

A typical vacuum brazing furnace pumping system includes:

• Stage 1: Rotary vane vacuum pump (roughing)

• Stage 2: Roots vacuum booster (high pumping speed)

• Stage 3: Dry screw or high-vacuum pump (clean stabilization)

This configuration ensures:

• Fast pump-down

• Clean, stable brazing vacuum

• Reliable performance across repeated cycles

7. Common Vacuum Challenges in Brazing Furnaces

Residual Oxygen Control

Even micro-leaks or insufficient pumping can cause oxidation at brazing temperatures.

Outgassing During Heating

Base materials release gases as temperature increases, requiring stable pumping capacity.

Oil Contamination Risk

Improperly configured oil-sealed pumps can introduce hydrocarbons, affecting joint quality.

These challenges highlight why system design is as important as pump selection.

8. Wordfik Vacuum Pump Solutions for Vacuum Brazing Furnaces

Wordfik provides engineered vacuum pump systems specifically for vacuum brazing furnace applications.

Available Solutions

• Oil-lubricated rotary vane pumps for reliable roughing

• Roots booster pump packages for high pumping speed

• Dry screw vacuum pumps for clean, oil-free operation

• Customized vacuum skids for furnace OEMs

Each system is designed based on:

• Furnace volume

• Target brazing pressure

• Cycle time and thermal profile

• Cleanliness requirements

9. Summary

Vacuum brazing furnaces demand clean, stable, and well-controlled vacuum environments. Selecting the correct combination of roughing pumps, booster pumps, and clean vacuum technologies is essential to achieving high-quality brazed joints and consistent furnace performance.

Properly engineered vacuum pumping systems reduce cycle times, improve joint reliability, and support long-term furnace operation.
