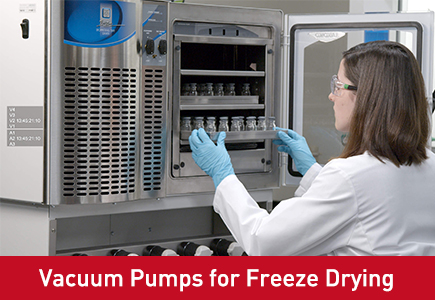

Vacuum Pumps for Freeze Drying (Lyophilization)

Freeze drying (lyophilization) is a critical dehydration process widely used in pharmaceutical manufacturing, biotechnology, food R&D, and laboratory-scale research. Vacuum pumps play a decisive role in ensuring stable sublimation, consistent product quality, and reliable cycle times throughout the lyophilization process.

This article explains how vacuum pumps function in freeze drying, what performance characteristics truly matter, and how to select the right vacuum solution for laboratory and industrial lyophilization systems.

1. Why Vacuum Is Essential in Freeze Drying

Freeze drying removes moisture from frozen materials through sublimation, where ice transitions directly from solid to vapor without passing through the liquid phase.

To enable sublimation:

• Chamber pressure must be reduced below the triple point of water (6.1 mbar / 611 Pa)

• A stable, controllable vacuum environment is required

• Non-condensable gases must be continuously removed

The vacuum pump is not just a supporting component—it directly influences:

• Drying speed

• Product structure

• Residual moisture content

• Batch-to-batch consistency

2. The Role of Vacuum Pumps in the Lyophilization Process

Primary Drying Phase

• Removes frozen water by sublimation

• Requires stable low-pressure conditions

• Excess pressure fluctuations can cause product collapse or melt-back




Secondary Drying Phase

• Removes bound moisture

• Requires deeper vacuum and precise pressure control

• Pump must handle very low gas loads reliably

Vacuum Pump Responsibilities

• Evacuate the chamber efficiently

• Remove non-condensable gases

• Maintain constant pressure during long operating cycles

• Operate continuously under high moisture load conditions (via condenser protection)

3. Key Vacuum Requirements for Freeze Drying Applications

Unlike many industrial vacuum processes, lyophilization places unique demands on vacuum equipment:

Critical Performance Factors

• Stable ultimate pressure in the range of 0.01–1 mbar

• Excellent pressure control and repeatability

• Continuous-duty capability (often 24–72 hour cycles)

• Compatibility with condensers and cold traps

• Low vibration to protect sensitive samples

Environmental Considerations

• Moisture-rich environment

• Potential solvent vapors (pharmaceutical and chemical labs)

• Clean and low-contamination operation

4. Recommended Vacuum Pump Technologies for Freeze Drying

Oil-Lubricated Rotary Vane Vacuum Pumps(Single Stage & Two Stage)

Widely used in laboratory and pilot-scale freeze dryers.

Advantages

• Reliable low ultimate pressure

• Proven technology in lyophilization

• Cost-effective and widely supported

• Excellent compatibility with cold traps

Typical Applications

• Laboratory freeze dryers

• Pharmaceutical R&D

• Pilot production lines

Dry Rotary Vane Vacuum Pumps

Increasingly adopted where oil contamination must be minimized.

Advantages

• Oil-free compression chamber

• Reduced risk of backstreaming

• Cleaner vacuum environment

• Lower maintenance related to oil management

Typical Applications

• Biotechnology labs

• Sensitive pharmaceutical formulations

• Research institutions

Dry Screw Vacuum Pumps (Industrial Scale)

Used mainly in production-scale freeze drying systems.

Advantages

• Fully oil-free process chamber

• High tolerance to vapor loads

• Long service intervals

• Excellent for continuous industrial operation

Typical Applications

• Pharmaceutical manufacturing

• Vaccine and biologics production

• Large freeze drying systems

5. Central Vacuum Systems for Freeze Drying Facilities

In multi-freeze-dryer installations, centralized vacuum systems are often preferred.

Benefits of Centralized Vacuum

• Shared vacuum infrastructure for multiple dryers

• Redundancy for critical pharmaceutical operations

• Reduced noise and heat in cleanroom areas

• Easier maintenance and monitoring

Typical configurations include:

• Multiple dry vacuum pumps operating in parallel

• Automatic standby and load balancing

• Integrated control with freeze dryer systems

6. Common Vacuum Challenges in Freeze Drying

Pressure Instability

Often caused by:

• Inadequate pump sizing

• Poor valve control

• Leaks in chamber or piping

Oil Backstreaming

Can occur with poorly maintained oil-lubricated pumps, especially during shutdown.

Moisture Overload

Without effective condensers or cold traps, excessive vapor can:

• Reduce pump efficiency

• Increase maintenance frequency

• Shorten pump service life

Proper system design is as important as pump selection.

7. Wordfik Vacuum Pump Solutions for Freeze Drying

Wordfik provides vacuum solutions specifically engineered for freeze drying and lyophilization systems, covering laboratory, pilot, and industrial-scale applications.

Available Solutions

• High-performance oil-lubricated rotary vane vacuum pumps

• Clean dry rotary vane vacuum pumps for sensitive environments

• Custom-designed central vacuum systems for freeze drying facilities

Solution Advantages

• Stable vacuum performance throughout long drying cycles

• Proven compatibility with cold traps and condensers

• Custom system engineering based on process requirements

• Reliable replacement and alternative solutions for established brands

8. Conclusion

Vacuum pumps are a core component of freeze drying systems, directly affecting product quality, process stability, and operational reliability. Selecting the right vacuum technology—based on pressure stability, cleanliness, and system design—is essential for successful lyophilization.

With properly engineered vacuum solutions, freeze drying processes can achieve consistent, repeatable, and high-quality results across laboratory and industrial applications.
