Efficient, Safe and Ergonomic Solutions for Modern Woodworking Production
In modern woodworking and panel processing, CNC routers are productivity powerhouses. However, their potential is often bottlenecked by the manual, physically demanding, and time-consuming task of loading and unloading heavy, large-format sheet goods like plywood, MDF, or particleboard. Vacuum lifting systems solve this challenge by transforming material handling from a manual chore into a safe, efficient, and integrated part of the production flow. This guide explores how these systems work, their key components, and how they deliver a rapid return on investment by boosting throughput, enhancing safety, and reducing operator fatigue.
Manual handling of 4x8 foot sheets (or larger) is more than just inconvenient; it's a direct drag on your shop's efficiency and a significant liability.
Ergonomic Hazard: Repetitive lifting of heavy, ungainly panels is a leading cause of work-related musculoskeletal disorders (MSDs), including back injuries, leading to lost time, compensation claims, and high employee turnover.
Process Inefficiency: Manual loading/unloading is slow, limiting machine uptime. It often requires two operators, doubling the labor cost for a non-value-added task.
Risk of Damage: Dropping or scraping a panel can ruin expensive material and damage the machine bed or finished parts.
Inconsistent Placement: Manual positioning can be imprecise, leading to material waste or alignment issues on the CNC.

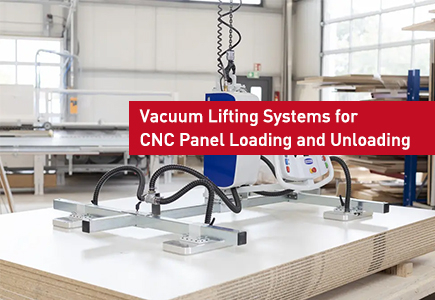

A vacuum lifting system is more than just a suction cup. It's an engineered system that combines several key elements to safely manage heavy loads.
| Component | Function | Key Considerations for Wood/Panels |
| Vacuum Lifting Device (The Lifter) | The end-effector that attaches to the panel. Contains multiple suction cups, a frame, and a manual or automated control handle. | Suction Cup Design: Must have soft, porous material pads (e.g., microporous rubber) to create an effective seal on rough, textured, or slightly uneven panel surfaces. |
| Vacuum Pump (The Power Source) | Generates the vacuum required to lift and hold the load. Can be integrated into the lifter or centralized. | Flow vs. Vacuum: Requires high airflow (CFM) to quickly evacuate air from under large cups on porous materials, not just extreme vacuum depth. Oil-free dry pumps (e.g., claw pumps) are preferred for cleanliness and low maintenance. |
| Lifting Mechanism | Provides the vertical and horizontal movement. Options include gantry cranes, jib cranes, articulating arms, or forklift attachments. | Must be rated for the dynamic load (panel weight + lifter weight). Articulating arms offer excellent maneuverability for precise placement into a CNC bed. |
| Safety Systems | Critical redundancies to prevent load drops. | Backup Battery: Powers the pump in case of power failure. Vacuum Monitoring: Audible/visual alarms trigger if vacuum drops below a safe threshold. Multiple Pumps/Chambers: System remains functional even if one pump fails or a cup loses seal. |
Vacuum lifters can be integrated at various levels of sophistication:
Manual/Assisted Handling: An operator uses a vacuum lifter on a jib crane to pick a panel from a cart, position it on the CNC spoilboard, and release it. This eliminates pure manual lifting but remains operator-driven.
Semi-Automated Loading: A gantry-style vacuum lifter is mounted on tracks adjacent to the CNC. The operator initiates the cycle, and the lifter automatically picks a panel from a stack, places it on the bed, and retracts.
Fully Automated Cell: Integrated with CNC and a panel storage rack (Rack/Piler), a robotic vacuum gripper on a linear actuator or 6-axis robot performs completely unmanned loading of raw panels and unloading of finished parts, enabling lights-out production.
Panel Characteristics: Size, weight, and surface condition are paramount. Lifting a glossy melamine panel requires different cup technology than lifting rough-cut OSB.
Required Throughput: How many sheets per shift need to be moved? This determines the level of automation (manual crane vs. automated gantry).
Existing Infrastructure: Does your shop have clear ceiling height for an overhead gantry? Can the floor support the posts for a jib crane?
Vacuum Pump Choice: For centralized systems serving multiple lifters, a robust dry screw or claw pump is ideal. For individual, mobile lifters, a built-in oil-free direct-drive pump is common. The pump must compensate for potential micro-leaks on porous surfaces.
Implementing a vacuum lifting system is a strategic upgrade that addresses the fundamental physical limits of a woodworking shop. The investment pays dividends not just in faster cycle times and higher machine utilization, but in creating a safer, more sustainable work environment that retains skilled operators. By removing the heaviest and most dangerous task from the CNC workflow, you unlock the full productive potential of your machinery and your workforce.
Q: Can a vacuum lifter handle warped or bowed panels?
A: Yes, within limits. Systems designed for wood use individually articulated suction cups mounted on flexible joints or bellows. This allows each cup to conform to a slightly uneven surface, maintaining a seal. However, severe warping may prevent a secure grip. The key is to have enough cups so that the loss of seal on one or two does not compromise the entire lift, thanks to independent vacuum zones.
Q: How do we calculate the right size vacuum pump for a panel lifter?
A: The calculation focuses on achieving "lift-on" time. It involves: 1) Total Effective Suction Area of all cups in contact, 2) The Porosity Factor of the material (higher for MDF/particleboard), and 3) The Desired Time to achieve lifting vacuum (e.g., 2-3 seconds). You need a pump that can provide sufficient airflow (CFM) to evacuate the volume under the cups, accounting for leakage through the porous panel, within that time window. Manufacturers provide sizing calculators for this precise purpose.
Q: Are these systems safe for thin or delicate materials, like veneered panels?
A: Absolutely, and they are often the best solution. Vacuum lifting distributes force evenly across the entire cup area, eliminating the high point pressures caused by fingers, claws, or clamps. This prevents surface marks, dents, or edge damage. For very delicate surfaces, specialized cups with ultra-soft seals and lower vacuum pressures can be used. The controlled, horizontal placement also prevents dropping or scraping.
