In CNC woodworking, a vacuum table’s ability to maintain effective vacuum hold-down directly affects cut quality, machine accuracy, and production efficiency. A leak in the vacuum system can cause workpieces to shift, lose suction quickly, or fail to hold at all — leading to scrap, rework, increased cycle times, and frustrated operators.
This article provides a structured approach to troubleshoot vacuum leaks on CNC woodworking tables, covering common leak sources, step-by-step diagnostic methods, and practical solutions that help maintain stable vacuum levels across woodworking environments.

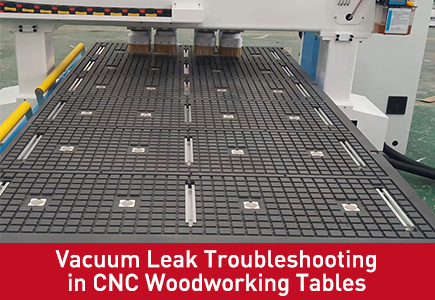

A CNC vacuum table applies negative pressure under the workpiece so that atmospheric pressure above pushes the piece firmly down, preventing movement during machining. Even small leaks reduce how much vacuum the pump and table can achieve, lowering hold-down force and risking part movement.
Leaks can originate from:
gaps around the MDF spoilboard edges
worn or torn vacuum gaskets
hose or fitting leaks
torn vacuum table seals
exposed grid zones not covered during machining
Identifying and reducing leaks is crucial for consistent suction performance.
If the spoilboard edges are not sealed correctly, air will be drawn in around the perimeter instead of through the workpiece, leading to lower vacuum levels. Operators often seal edges with caulking or gasket tape to reduce perimeter leakage.
Check for leaks:
Place scrap material over the table and run vacuum
Run a vacuum gauge while blocking suspected leak paths
Use sawdust or fine material around edges — if it gets pulled in, you likely have a leak
Poor surface flatness or warping on the spoilboard can compromise sealing between the workpiece and table surface. Many CNC users report that resurfacing or flipping the spoilboard improves vacuum hold significantly, especially for large dense fiberboard spoilboards.
Diagnostic tips:
Resurface both sides of the spoilboard
Ensure the table surface is flat and leveled
Check for gaps at the spoilboard attachment points
Vacuum gaskets and seals compress to form the air-tight boundary between table and workpiece. Over time these can degrade, tear, or harden, reducing their effectiveness.
Troubleshooting approach:
Visually inspect gasket condition
Replace worn or brittle gaskets
Ensure tight compression and correct gasket profiles
Debris such as sawdust and dust accumulation in vacuum channels, hoses, or fittings can create partial blockages that simulate leak behavior. When air is partially blocked rather than sealed, vacuum pressure drops.
Fixes include:
Blow out channels with compressed air
Clean hose fittings and vacuum inlets
Inspect filters and separators for clogging
On large vacuum tables with multiple zones, leaving unused zones open to the atmosphere can create large leakage areas that reduce overall vacuum pressure. Closing or covering those zones when not in use dramatically improves hold-down performance.
Actionable steps:
Close zones not in use
Cover unused portions with cut-offs or MDF blocks
Seal vacuum ports that are not connected
Follow this structured diagnostic process:
With nothing on the table, close all valves and record the vacuum gauge reading. This establishes your “pump ceiling standard” — the best the system can achieve with no load.
Place a non-porous board on the table and seal edges with gasket material. Re-measure vacuum. The difference between this and the baseline indicates the effect of table and spoilboard sealing.
Close unused zones and cover open areas to reduce leakage. Record improved readings after each zone closure.
Use smoke pens, fine material (sawdust), or listening for hiss sound at seams to pinpoint leaks around fittings, hose junctions, and rails.
| Problem | Solution |
| Poor edge seal | Use gasket tape or caulk around spoilboard perimeter |
| Worn gasket | Replace with correct profile gasket material |
| Channel blockage | Clean with compressed air; check filters |
| Hose leaks | Replace cracked or loose hoses; tighten fittings |
| Open zones | Close or cover unused vacuum zones |
| Porous MDF leaks | Use sacrificial layer or cover exposed pores |
Plan for resurfacing the spoilboard and replacing gaskets on a schedule based on usage intensity. Regular conditioning prevents irregular surfaces that allow leaks.
Efficient inlet filtration protects vacuum pump performance and reduces degradation that may indirectly cause pressure drops.
Use vacuum table zoning controls to dynamically manage vacuum areas and minimize leakage exposure.
Q: What is an "acceptable" level of leak for a CNC vacuum table?
A: No system is perfectly airtight. An acceptable leak is one your vacuum pump can compensate for while maintaining sufficient clamping pressure. A good rule of thumb: On an empty, fully sealed table, your pump should reach its rated maximum vacuum (e.g., 25 inHg) and then cycle off or slow down significantly. If it runs continuously at full speed but only achieves 15-20 inHg, you have an excessive leak that needs fixing.
Q: Can I use a water-based leak detection method on my electrical solenoid valves?
A: Use extreme caution. While the soap bubble test is effective on fittings, avoid spraying liquids directly onto solenoid valves, electrical connections, or pressure transducers. Use a plastic shroud or a gentle spray mist, and dry components immediately after testing. For electrical components, listening for a hissing sound or using an ultrasonic leak detector is a safer, non-invasive method.
Q: My pump reaches high vacuum on an empty table, but pressure plummets as soon as I put a sheet of MDF on it. Why?
A: This is almost certainly not a "leak" in the traditional sense, but excessive airflow demand. A standard 4x8 sheet of porous MDF or plywood has millions of tiny air channels. You are essentially asking the pump to evacuate a huge, leaky volume. The solution is to reduce the effective surface area by using a perimeter gasket around the sheet, or by placing the sheet on a grid of low-profile gasket strips to create isolated sealed zones underneath. This dramatically reduces the total airflow the pump must handle, allowing pressure to build.
