In chemical processing, porous materials are everywhere: cast iron pump casings, graphite heat exchanger blocks, sintered metal filter elements, ceramic membrane supports and powder metallurgy valve seats. Their inherent porosity, while often a desired feature for filtration or thermal management, creates persistent headaches when fluid tightness and corrosion resistance are required. Left unsealed, even micro-sized pores can let process fluids leak, cause premature corrosion, and lead to unplanned equipment failure.
Atmospheric dipping and brush-on sealants have long been used as low-cost fixes, but they rarely deliver reliable results. Surface tension traps air inside the pores, preventing sealant from penetrating more than a few microns deep. Within months of service, the thin surface layer wears away, and leakage returns.
Vacuum impregnation solves this problem at the source. By pulling a deep vacuum on the part before introducing sealant, it removes trapped air from even the smallest internal pores, allowing impregnation resin to fully fill the entire void structure. For chemical foundries, graphite processors and ceramic component manufacturers, this technology has become a standard step to turn porous substrates into pressure-tight, corrosion-resistant finished parts.
Having worked with dozens of chemical component suppliers to upgrade their impregnation lines, we have seen firsthand how a properly sized vacuum system directly impacts first-pass yield, sealant consumption and long-term part performance. This guide breaks down the process, key parameters, common defects and pump selection criteria for vacuum impregnation in chemical processing, written for process engineers and production managers looking to improve sealing consistency and reduce scrap rates.
The core advantage of vacuum impregnation lies in how it handles trapped air inside porous structures. Under atmospheric pressure, air occupies 100% of the internal void volume. When you dip a part into resin, surface tension prevents the liquid from pushing air out of narrow pores. The result is a shallow surface seal that breaks down as soon as the part sees pressure, thermal cycling or chemical attack.
Vacuum-based processing changes this dynamic entirely.
Full pore penetration: By evacuating air down to 10–50 mbar absolute before submerging the part, 99%+ of trapped air is removed from pores as small as 1 micron. When sealant is introduced, it fills the entire void depth completely, not just the surface opening.
Consistent batch quality: Atmospheric dipping results vary widely with resin viscosity, part geometry and operator technique. Vacuum impregnation delivers repeatable filling results across batches, reducing first-pass failure rates from 15–30% down to under 3% in well-run lines.
Improved chemical and pressure resistance: Fully filled pores create a continuous barrier against process fluids. For chemical pump casings and valve bodies, this translates to 2–3 times longer service life under corrosive conditions. Pressure-holding capability also improves dramatically, making impregnated parts suitable for hydraulic and high-pressure process applications.
Reduced sealant waste: Vacuum processing uses only the resin that actually fills the pores. Excess material can be drained and reused, cutting overall sealant consumption by 40–60% compared to dip or spray methods.
For components exposed to aggressive chemicals, thermal cycling and pressure swings, this level of sealing is not just a quality improvement — it is often the difference between a part passing qualification and being scrapped entirely.
While exact cycles vary by material and sealant type, most industrial chemical impregnation lines follow the same core six-stage workflow.
Before impregnation, parts must be clean, dry and free of machining oil, dust and surface contaminants. Oil residue in particular will prevent resin from bonding to pore walls, leading to premature seal failure. Parts are typically washed, rinsed and oven-dried to ensure no moisture remains inside the pore structure. Skipping proper pre-treatment is the single most common cause of impregnation rejection we see in the field.

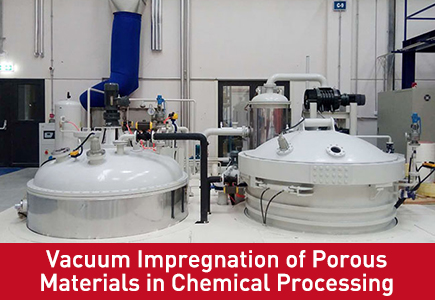

Parts are loaded into a sealed impregnation chamber, and a vacuum is drawn. The goal of this stage is to remove all air from internal pores.
Typical operating vacuum: 5–50 mbar absolute, depending on pore size and part density
Typical hold time: 5–30 minutes, with finer porosity requiring longer degassing cycles
Chamber temperature: often controlled to keep resin viscosity stable during the cycle
A common misstep we encounter on site is cutting the degassing step short to save cycle time. Even 5–10% residual air inside pores is enough to create voids and cause leakage after curing.
With vacuum still applied, impregnation resin is drawn into the chamber until parts are fully submerged. Because the pores are already under deep vacuum, resin flows immediately into the void structure with no air resistance.
For dense materials with very fine pores, many lines add a positive pressure stage after vacuum filling. Pressurizing the chamber to 3–6 bar(g) forces resin deeper into blind pores and micro-voids, improving fill rate for high-density sintered metal and ceramic parts. This combined vacuum-pressure cycle is the standard for high-reliability chemical component impregnation.
After the hold cycle, pressure is released and excess resin is drained back into the storage tank. Because the material is uncontaminated, it can be reused in subsequent cycles, minimizing waste. Centrifugal spinning is often used for complex geometry parts to remove surface resin before curing, reducing post-processing cleaning work.
Parts are transferred to an oven or UV curing station to polymerize the impregnated resin. Cure temperature and time depend on the resin chemistry — epoxy, phenolic and methacrylate systems all have different profiles. After curing, parts may undergo light machining, washing or surface finishing to remove any remaining surface residue.
Vacuum impregnation serves a wide range of chemical industry components, each with its own porosity challenges and performance requirements.
Sand cast pump casings, valve bodies and manifold parts almost always contain some level of micro-porosity from the casting process. Under operating pressure, these pores leak process fluid and create corrosion initiation points. Vacuum impregnation with chemical-resistant epoxy or phenolic resin seals porosity completely, allowing cast parts to meet pressure test standards that would otherwise require expensive billet machined components.
Graphite is widely used in chemical processing for its excellent corrosion resistance and thermal conductivity, but its inherent porosity limits pressure capability and can allow process fluid cross-contamination. Vacuum impregnation with furan or phenolic resin fills graphite’s open pore structure while preserving its thermal properties. This is standard practice for graphite heat exchangers, immersion heaters and electrolytic cell components used in corrosive acid and caustic processes.
Sintered metal components made from stainless steel, bronze or carbide have controlled porosity that makes them ideal for filters, bearings and flow control elements. For structural chemical parts, however, that same porosity causes leakage and reduced corrosion resistance. Vacuum impregnation with engineering resins seals internal porosity while maintaining dimensional tolerance, creating parts that combine the cost advantages of powder metallurgy with the pressure tightness of machined bar stock.
Porous alumina and silicon carbide ceramics are used as membrane supports and filter elements in chemical separation processes. Vacuum impregnation is used to seal specific zones of the ceramic, create impermeable end sections, or modify surface chemistry for targeted filtration performance. Precise vacuum control is critical here to avoid over-impregnation that would block filtration pores.
Sintered stainless steel and nickel alloy parts used in corrosive fluid systems rely on vacuum impregnation to seal internal interconnected porosity. This allows them to hold pressure, resist internal corrosion, and meet sanitary standards for pharmaceutical and fine chemical processing.
Impregnation yield is highly sensitive to process parameter control. Even small deviations can push a well-running line into high rejection rates.
Deeper vacuum removes more air and produces better pore filling, but there are diminishing returns.
Coarse porosity (100+ microns): 30–50 mbar is usually sufficient
Fine micro-porosity in castings: 5–20 mbar for reliable degassing
Very dense sintered ceramics: 1–5 mbar may be required for full outgassing
Excessively deep vacuum can also cause problems, such as pulling volatile components out of the resin itself or creating unwanted foaming inside the sealant.
Time under vacuum must be long enough for air to diffuse out of the deepest pores. Thin-walled parts may only need 5 minutes; thick, dense graphite blocks can require 30 minutes or more. The best way to optimize cycle time is to run trial parts with incremental dwell times and test leakage rates.
Lower viscosity resin penetrates fine pores more easily. Most impregnation systems heat resin to 30–50°C to reduce viscosity and improve flow. Temperature must be kept consistent across batches — a 10°C swing can change viscosity by 30–50% and alter fill characteristics.
For pressure-assisted cycles, 3–6 bar(g) is standard for most chemical components. Higher pressures improve fill but increase equipment cost and cycle time. As with vacuum level, optimal pressure depends on pore size and part density.
Incorrect curing — either too fast or too cool — leaves resin with reduced chemical resistance and mechanical strength. Cure cycles should follow the resin manufacturer’s specification exactly, and oven temperature uniformity should be verified regularly.
Even established lines can develop quality issues as materials change or equipment drifts. Below are the four most frequent defects we see in chemical component impregnation, along with their typical causes and proven fixes.
Root causes: Insufficient vacuum level; degassing time too short; resin viscosity too high due to low temperature or aging; part contamination preventing resin wetting.
Fixes: Verify actual chamber vacuum with a calibrated gauge; extend degassing time; check and adjust resin temperature; confirm parts are properly cleaned and dried before loading. If issues persist, test with a lower-viscosity resin grade.
Root causes: Air not fully removed during degassing; resin outgassing under vacuum; pressure applied too quickly trapping residual air.
Fixes: Extend vacuum hold time; check resin for dissolved moisture or volatiles; ramp pressure up gradually instead of applying full pressure immediately. For recurring issues, consider a two-stage degassing cycle.
Root causes: Resin viscosity too high; insufficient drain time; parts removed from resin while still under vacuum.
Fixes: Optimize drain time; use centrifugal spin-off for complex parts; break vacuum before draining to allow surface resin to flow off. In severe cases, review resin selection — lower-viscosity formulations generally leave thinner surface residue.
Root causes: Under-cured resin; incorrect resin type for the process fluid; incomplete filling allowing fluid to penetrate behind the seal.
Fixes: Verify cure temperature and time; review resin compatibility with actual operating fluids and temperatures; improve fill quality by optimizing vacuum parameters. For aggressive chemical service, upgrade to epoxy or phenolic resin systems instead of standard methacrylates.
The vacuum pump is the core utility behind every impregnation cycle. The right choice depends on required vacuum level, resin chemistry, duty cycle and plant environment.
Liquid ring pumps are a robust, cost-effective choice for general-purpose impregnation lines operating in the 20–80 mbar range.
Advantages: Tolerant of resin vapor and minor liquid carryover; cool running with no hot surfaces; simple and reliable for heavy daily use; low upfront cost for larger chamber sizes.
Limitations: Cannot reach deep vacuum levels; consumes seal water; risk of seal fluid contamination with certain resin chemistries.
Best for: Large-batch casting impregnation, graphite block processing, and facilities with available process water.
Dry claw pumps offer oil-free operation with good tolerance of process vapors, making them well suited for clean, medium-vacuum impregnation.
Advantages: 100% oil-free gas path; no risk of oil contamination affecting resin cure; low maintenance; good vapor handling; no water consumption.
Limitations: Ultimate vacuum around 30–50 mbar, not suitable for very fine porosity requiring deep vacuum.
Best for: Ceramic and powder metallurgy impregnation lines, clean-room chemical component processing, and facilities looking to eliminate wastewater from liquid ring pumps.
Dry screw pumps deliver deep, stable vacuum across a wide pressure range. They are the premium choice for high-precision impregnation processes.
Advantages: Reaches deep vacuum below 1 mbar for dense, fine-porosity materials; excellent vapor handling with jacketed temperature control; highly corrosion-resistant configurations available; VFD control for precise vacuum profiling.
Limitations: Highest initial investment.
Best for: High-value fine ceramic impregnation, aerospace-grade chemical components, and processes requiring precise, repeatable vacuum control.
Practical note: Regardless of pump type, we always recommend installing a vapor condenser and inlet separator upstream of the pump. Resin vapors and monomer carryover will gradually foul any pump over time. Proper inlet protection reduces maintenance frequency and doubles or triples pump service life.
Vacuum impregnation is a proven, cost-effective way to transform porous chemical components into pressure-tight, corrosion-resistant finished parts. Its performance, however, depends entirely on two things: tight control of process parameters, and a properly sized, protected vacuum system matched to the application.
Many facilities invest in high-quality resin and precision tooling, then skimp on the vacuum system — only to struggle with inconsistent fill rates, high scrap and frequent pump failures. A vacuum system that is correctly sized for the chamber, protected from resin vapors, and matched to the required vacuum level will pay for itself quickly in reduced scrap, lower sealant waste and fewer unplanned shutdowns.
If you are designing a new impregnation line, upgrading an existing system, or dealing with recurring quality or pump reliability issues, it is worth having a vacuum specialist review your setup. Often a relatively small adjustment in pump size, inlet protection or control strategy can yield measurable improvements in yield and operating cost.
