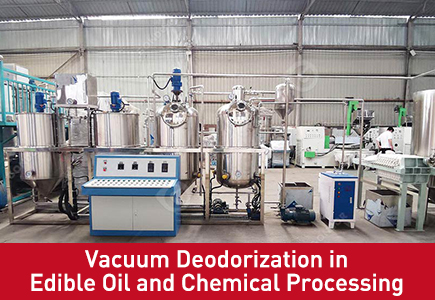

Vacuum Deodorization in Edible Oil and Chemical Processing: Complete Technical Guide
Crude oils, whether intended for human consumption or industrial chemical use, carry inherent impurities that limit their market value and performance. Free fatty acids, aldehydes, ketones, peroxides and trace contaminants all contribute to off-flavours, unstable shelf life and substandard product quality. Vacuum deodorization stands as the most widely adopted industrial solution for stripping these unwanted volatiles while preserving the base oil’s nutritional and functional properties.
Unlike atmospheric distillation, which requires extreme temperatures that damage oil structure, vacuum deodorization operates at reduced pressures to lower the boiling points of target compounds. This allows effective purification at gentler temperatures, minimising thermal degradation and side reactions. The technology serves as the final critical step in edible oil refining lines and plays an equally vital role in oleochemical, biodiesel and specialty chemical production chains.
This guide examines the working principles behind vacuum deodorization, its step-by-step execution, key equipment designs, and practical applications across both edible oil and chemical processing sectors. We also compare modern vacuum-based systems against conventional approaches and outline actionable factors for process optimisation.
How Vacuum Deodorization Works: Core Principles
At its foundation, vacuum deodorization is a physical separation process that combines high temperature, deep vacuum and direct steam injection to remove volatile substances from oil matrices. The underlying principle relies on the difference in vapour pressure between the oil triglycerides and the impurity compounds.
Under reduced pressure – typically 2–4 mbar for edible oil applications – the boiling points of odour-causing volatiles drop significantly. Superheated stripping steam is then sparged through the hot oil, creating vapour-liquid contact. The steam acts as a carrier gas, sweeping vaporised impurities upward and out of the oil bulk. Because the oil triglycerides have much lower vapour pressure, they remain in liquid phase with minimal carry-over loss.
Three interdependent parameters govern deodorization efficiency:
Absolute pressure: Lower vacuum levels improve stripping efficiency and allow lower operating temperatures, but increase vacuum system cost. Modern systems target 1–3 mbar for high-grade products.
Process temperature: Ranges from 220°C to 26°C depending on oil type. Higher temperatures accelerate volatile removal but increase risk of isomerisation, polymer formation and nutrient loss.
Steam dosage: Typically 0.5–3% of oil throughput. Excess steam wastes energy and increases oil entrainment losses, while insufficient steam fails to meet odour reduction targets.
Residence time is the fourth control variable. Combined with temperature, it defines the total “heat load” applied to the oil. Balancing all four parameters is essential to achieving product specifications without compromising oil stability or yield.
Step-by-Step Vacuum Deodorization Process
Industrial vacuum deodorization systems follow a consistent multi-stage workflow designed to maximise energy recovery and product protection.
1. Deaeration
Before any heating occurs, bleached oil enters a deaeration vessel operating under moderate vacuum. Dissolved air and moisture are removed to prevent oxidative degradation during subsequent high-temperature stages. Some designs inject a small amount of sparge steam to enhance oxygen stripping. Skipping proper deaeration leads to darker oil colour, reduced shelf life and increased polymer formation.
2. Pre-Heating and Heat Recovery
Deaerated oil flows through a regenerative heat exchanger – commonly called an economiser – where it absorbs heat from the hot deodorised oil leaving the column. This heat recovery stage recovers 60–70% of process heat, drastically reducing steam consumption in the final heater. Energy efficiency is one of the defining advantages of modern continuous deodorization systems compared to older batch designs.
3. Final Heating
After pre-heating, the oil passes through a final heater, usually heated by high-pressure steam or thermal oil, to reach the precise deodorization temperature setpoint. Temperature accuracy matters: deviations of just 5°C can alter stripping kinetics and affect final product quality.
4. Stripping Section
Heated oil enters the top of the deodorization column and flows downward through structured packing or trays. Stripping steam is introduced at the bottom, moving counter-current to the oil. This counter-current flow maximises mass transfer: volatile compounds including free fatty acids, aldehydes, ketones and pesticide residues vaporise into the steam phase and exit the column overhead.
Structured packing columns offer 2–3 times more contact surface area than traditional tray designs, reducing steam consumption by 30–50% and shortening residence time. This makes them the preferred choice for heat-sensitive oils and physical refining applications.
5. Retention / Heat Bleaching Section
After the stripping stage, oil collects in the retention section where it holds at process temperature for a specified period. This thermal holding step – called heat bleaching – decomposes colour bodies and peroxides, further improving oil stability and appearance. Retention times vary from 15 minutes to over an hour depending on the target colour specification and oil type.
6. Post-Stripping and Cooling
In dual-stage systems, a final post-stripping step removes any volatiles formed during heat retention. The oil then flows back through the economiser to pre-heat incoming feed, followed by a final cooler that brings product temperature below 70°C before discharge. Rapid cooling after deodorization is critical to prevent re-oxidation and preserve the freshly deodorised quality.
7. By-Product Recovery
Volatiles and steam leaving the column pass through a condensation system. Free fatty acids and other valuable distillate components are condensed, collected and recovered as a side stream. This deodorizer distillate serves as feedstock for soap manufacturing, biodiesel production and fatty acid derivative industries, improving overall process economics.
Vacuum Deodorization in Edible Oil Refining
In edible oil production, deodorization represents the final and most quality-defining refining step. It transforms bleached oil into a neutral, bland product suitable for cooking, frying and food formulation.
Commonly Processed Oils
Nearly all commercial edible oils undergo vacuum deodorization:
Seed oils: soybean, rapeseed, sunflower, canola, corn germ and cottonseed
Tropical oils: palm, palm kernel and coconut
Specialty oils: rice bran, peanut, sesame and fish oil
Animal fats: tallow, lard and poultry fat
Each oil type requires customised temperature and vacuum settings. For example, palm oil physical refining operates at 240–260°C to simultaneously deacidify and deodorise, while delicate fish oils run at lower temperatures to protect omega-3 fatty acids from degradation.
Quality Benefits for Edible Oils
Beyond obvious flavour and odour improvement, vacuum deodorization delivers several measurable quality enhancements:
Extended shelf life through peroxide and pro-oxidant removal
Reduced free fatty acid content to below 0.05% in physical refining
Lightened colour via thermal decomposition of pigment precursors
Removal of trace contaminants such as pesticides, polycyclic aromatic hydrocarbons (PAHs) and glycidyl esters (GE)
Improved frying stability and resistance to rancidity
Modern food safety regulations – including limits on GE, 3-MCPD esters and trans-fatty acids – have driven innovation in deodorization design. Dual-temperature processes, which strip at higher temperature then finish at milder conditions, help processors meet contaminant limits without excessive trans-fat formation.
Vacuum Deodorization in Chemical and Industrial Processing
The same vacuum steam stripping principles translate directly to chemical and industrial oil processing. Many oleochemical and renewable fuel producers rely on deodorization technology as a purification and fractionation tool.
Oleochemical Production
In fatty acid distillation and fatty alcohol production, vacuum deodorization removes light ends, odour bodies and residual impurities from intermediate streams. Stripping columns operating under high vacuum help refine crude fatty acid cuts into specified carbon-chain fractions for soap, detergent, cosmetic and lubricant applications. The short residence time and controlled heat exposure of packed-column systems prevent thermal decomposition of heat-sensitive fatty derivatives.
Biodiesel and HVO Pretreatment
Waste cooking oils, animal fats and crude vegetable oils used as biodiesel feedstock often contain high FFA levels and odour compounds. Vacuum deodorization / deacidification serves as an effective pre-treatment step, reducing FFA content to levels suitable for transesterification. It also removes water and volatile contaminants that would otherwise interfere with catalyst performance. For hydrotreated vegetable oil (HVO) production, vacuum stripping prepares feedstock by removing sulphur, nitrogen and light organic compounds upstream of hydrotreatment reactors.
Specialty Chemical Applications
Vacuum deodorization finds use in other industrial sectors as well:
Mineral oil and lubricant refining for odour and volatile fraction control
Essential oil and fragrance processing for concentration and purification
Polymer additive production for residual monomer stripping
Waste oil recycling and re-refining processes
Industrial applications often require customised materials of construction, higher vacuum levels and different steam-to-feed ratios compared to standard edible oil systems.
Modern Vacuum Deodorization Technologies vs. Traditional Designs
Deodorization technology has evolved substantially from early batch tanks to today’s highly optimised continuous systems. Understanding the differences helps processors select the right equipment for their scale and product mix.
Batch vs. Continuous Systems
Batch deodorizers operate as single vessels that fill, heat, process, cool and discharge sequentially. They work well for small-scale operations, frequent product changeovers and specialty oils produced in small lots. However, they suffer from higher energy use per tonne, longer heat exposure times and less consistent product quality.
Continuous deodorization systems feed oil steadily through a vertical column with dedicated stages for each process step. They deliver superior energy efficiency through heat recovery, tighter process control, higher throughput and uniform quality. Most medium and large refineries (100+ tonnes per day) use continuous designs.
Tray Columns vs. Structured Packing
Traditional tray-type deodorizers use perforated plates to hold oil pools and distribute steam bubbles. They are robust, handle high FFA feeds and tolerate minor upsets well. However, they require more steam and longer residence times.
Structured packing columns use corrugated metal sheets to create thin falling oil films. The large surface area and counter-current flow dramatically improve mass transfer efficiency. Benefits include:
30–50% lower steam consumption
Shorter residence time at high temperature
Reduced trans-fatty acid and GE formation
Better retention of natural tocopherols and sterols
Leading equipment suppliers combine both technologies – using packing for stripping sections and trays for retention – to balance efficiency and thermal treatment capability.
Energy-Efficient and Low-Heat-Load Innovations
Recent industry trends focus on reducing heat load to preserve oil nutritional value while cutting operating costs. Notable developments include:
Dual-temperature deodorization: High-temperature stripping followed by low-temperature finishing
Dry condensation systems: Enable deeper vacuum (below 1 mbar) for milder operating temperatures
Thin-film and short-path designs: For extremely heat-sensitive materials
Waste heat recovery from deodorizer overhead vapours for steam generation
Key Factors Affecting Deodorization Performance
Achieving consistent, cost-effective deodorization requires attention to several operational and design factors.
Feed Oil Quality
Pre-treatment quality directly impacts deodorizer performance. Oil entering the deodorizer must be properly degummed, bleached and dry. High residual phospholipids, soap or moisture cause foaming, carry-over and reduced stripping efficiency. Poor bleaching also forces higher deodorization temperatures, accelerating oil degradation.
Vacuum System Reliability
A stable vacuum is the backbone of the entire process. Leaks, insufficient ejector capacity or cooling water temperature fluctuations all raise operating pressure and reduce stripping efficiency. Regular leak testing, proper condenser maintenance and monitoring of non-condensable gas loads help maintain consistent vacuum levels.
Steam Quality and Distribution
Dry, saturated stripping steam free of carry-over water ensures consistent heat input and prevents oil hydrolysis. Poor steam distribution – whether through damaged trays, clogged spargers or maldistributed packing – creates dead zones where oil receives insufficient stripping, resulting in uneven product quality.
Heat Recovery Efficiency
The economiser heat recovery step typically accounts for the largest energy savings in the system. Fouling on heat transfer surfaces reduces recovery efficiency and increases final heater steam demand. Periodic cleaning and monitoring of approach temperatures help maintain peak energy performance.
Process Control and Automation
Modern deodorization lines use PLC-based control systems with continuous monitoring of temperature, pressure, flow and level. Automated setpoint control, steam-to-oil ratio regulation and data logging ensure repeatable results and simplify compliance with food safety standards.
Conclusion
Vacuum deodorization remains an indispensable purification technology across both edible oil and chemical processing industries. By combining deep vacuum, controlled temperature and optimised steam stripping, it removes volatile impurities with minimal damage to the base product. For edible oil refiners, it delivers neutral flavour, extended shelf life and compliance with food safety regulations. For chemical and oleochemical producers, it provides a scalable, energy-efficient method for purifying fatty acid streams, biofuel feedstocks and specialty products.
As regulatory requirements tighten and sustainability pressures grow, deodorization technology continues to advance. Lower operating temperatures, reduced steam consumption, improved by-product recovery and better contaminant removal all represent active areas of innovation. Processors who invest in modern, well-maintained vacuum deodorization systems gain measurable advantages in product quality, operating cost and environmental performance.
Whether upgrading an existing line or designing a new facility, matching deodorization system design to specific feedstock characteristics and product specifications is the key to long-term operational success.
