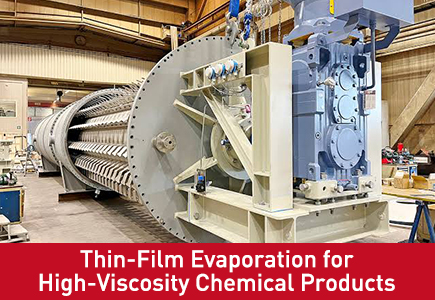

High‑viscosity chemicals present a persistent challenge in process engineering. As viscosity rises, heat transfer deteriorates, residence times lengthen, and conventional evaporators quickly reach their limits. Thin‑film evaporation was developed specifically to address these difficulties, and it has become an indispensable tool for processing polymers, resins, adhesives, and other viscous materials that cannot be handled by falling‑film or forced‑circulation evaporators.
The core idea is straightforward: spread the product into an extremely thin layer across a heated surface, mechanically agitate it to renew the film constantly, and apply vacuum to lower the boiling point. The combination achieves evaporation rates that would be impossible with thicker films, while the short residence time—often just a few seconds—protects heat‑sensitive compounds from thermal degradation.
Falling‑film evaporators rely on gravity to distribute liquid as a film down vertical tubes. This works well for low‑viscosity fluids, but as viscosity increases, the film becomes sluggish, uneven, and prone to dry patches. Heat transfer drops sharply, and the product may spend excessive time on the heated surface, leading to fouling or degradation.
Forced‑circulation evaporators use pumps to push liquid through the heating tubes at high velocity. This approach can handle moderate viscosities, but the pressure drop becomes prohibitive as viscosity climbs. Pumping losses consume energy, and the product may degrade from repeated passes through the heat exchanger.
Thin‑film evaporators take a fundamentally different approach. Instead of relying on gravity or external pumping to distribute the liquid, they use mechanical wipers to spread the product across the heated wall and continuously renew the film. The film thickness is typically 0.1 to 1.0 mm, and the vigorous agitation creates turbulence that enhances both heat and mass transfer—even at viscosities that would choke other evaporator types.
Two main configurations dominate industrial practice: wiped‑film evaporators and short‑path (molecular) evaporators.
Wiped‑film evaporators (also called agitated thin‑film evaporators) use rotating wiper blades to spread the feed into a thin film on the inner wall of a heated cylindrical vessel. The wipers continuously scrape the surface, preventing fouling and ensuring rapid surface renewal. Vapours exit through a separate condenser connected to the vacuum system. These units can handle viscosities up to hundreds of thousands of centipoise and are widely used for polymer devolatilisation, resin concentration, and solvent stripping.
Short‑path evaporators take the concept a step further. The condenser is integrated inside the evaporator, with the vapour path reduced to a few centimetres. This configuration minimises pressure drop and enables operation at pressures as low as 0.001 mbar—deep enough for molecular distillation. Short‑path units are preferred for the most heat‑sensitive products, such as vitamins, pharmaceuticals, and high‑purity specialty chemicals.
Both types operate under vacuum, typically from 1 mbar down to 0.001 mbar depending on the application. The vacuum system is not an afterthought; it is integral to the process, lowering boiling points to protect the product and creating the pressure differential that drives vapour flow.
The vacuum pump in a thin‑film evaporation system faces demands that differ from those in many other chemical processes. The vapour load can be substantial, particularly when large fractions of the feed are being evaporated. The pump must maintain stable pressure despite fluctuating vapour evolution, and it must handle any carryover of condensed material without damage.
For most wiped‑film applications, operating pressures range from 1 to 10 mbar. A liquid‑ring vacuum pump is a common choice here—it tolerates moisture and small amounts of liquid carryover, and it provides reliable, steady vacuum over long production runs. For deeper vacuum, dry screw pumps offer oil‑free operation and good energy efficiency, though they require careful protection against liquid ingestion.
Short‑path evaporators demand more from the vacuum system. Pressures of 0.01 to 0.001 mbar are typical, which requires a multi‑stage pumping arrangement. A combination of a mechanical booster (Roots pump) and a backing pump—often a dry screw or rotary vane—is standard. The system must be leak‑tight and capable of reaching ultimate pressure quickly, as extended pump‑down times reduce throughput and may expose the product to unnecessary heat.
The choice of vacuum pump depends on the operating pressure, the vapour load, and the chemical compatibility of the product.
For wiped‑film evaporators operating at 1–10 mbar, liquid‑ring pumps are a reliable workhorse. They handle wet vapour streams well, and their simple construction keeps maintenance straightforward. However, they are less efficient than dry pumps and require a seal‑water system.
Dry screw pumps are increasingly specified for new installations. They offer oil‑free operation, which is essential when product purity is critical, and they can achieve the deep vacuum needed for short‑path distillation. Their energy efficiency is superior to liquid‑ring pumps, particularly when equipped with variable‑speed drives. The higher initial cost is often justified by lower operating expenses over the life of the equipment.
For the most demanding applications—molecular distillation at 0.001 mbar—a diffusion pump or turbo‑molecular pump may be required as the final stage, backed by a mechanical pump for roughing. These systems are expensive and complex, but they are the only option when the product cannot tolerate temperatures above 100°C.
Thin‑film evaporation is used across a wide spectrum of industries. In polymer production, it removes residual monomers and solvents from melts that would otherwise require multiple washing steps. In the food industry, it concentrates fruit juices and essential oils without destroying flavour compounds. In pharmaceuticals, it recovers solvents from active ingredients while maintaining the tight thermal control required for GMP compliance.
One notable example is the processing of tall oil, a by‑product of paper pulping. Tall oil contains fatty acids, resin acids, and sterols that must be separated by distillation. The material is viscous, fouling, and heat‑sensitive—a combination that makes thin‑film evaporation the preferred technology. The vacuum system must maintain stable pressure while handling the complex mixture of volatile and non‑volatile components, and the wipers must keep the heated surface clean despite the tendency of resin acids to polymerise.
Another growing application is in the recycling of lithium‑ion battery electrolytes. The solvents used in battery manufacturing are valuable and must be recovered with high purity. Thin‑film evaporators, operating under vacuum, can separate the solvent from the electrolyte salts without decomposing the heat‑sensitive components.
A thin‑film evaporation system is only as reliable as its vacuum pump. Poor vacuum leads to higher operating temperatures, which accelerates degradation and shortens the life of both the product and the equipment. Regular maintenance of the pump—oil changes for lubricated types, seal checks for dry pumps—is essential.
The feed rate and wiper speed must be matched to the viscosity and volatility of the product. Too high a feed rate floods the surface, reducing evaporation efficiency; too low a rate causes dry patches and fouling. The vacuum pump must be sized to handle the peak vapour load, not just the average, and the condenser must be capable of removing the latent heat of vaporisation without allowing vapour to reach the pump.
Material compatibility is another key consideration. Many high‑viscosity chemicals are corrosive or abrasive. The evaporator and pump must be constructed from suitable alloys—stainless steel, Hastelloy, or titanium—to withstand the process conditions.
Thin‑film evaporation is the preferred method for processing high‑viscosity, heat‑sensitive, or fouling chemical products. By spreading the feed into a mechanically agitated thin film under vacuum, it achieves rapid evaporation with minimal thermal degradation. The vacuum system is central to the process, determining the operating temperature, the evaporation rate, and the quality of the final product. Selecting the right pump—whether liquid‑ring, dry screw, or a multi‑stage combination—requires careful consideration of the pressure requirements, vapour load, and chemical environment. When properly specified and maintained, a thin‑film evaporation system delivers consistent, high‑quality results for some of the most challenging materials in the chemical industry.
Q: What viscosity range can thin‑film evaporators handle?
Wiped‑film evaporators can process materials with viscosities up to hundreds of thousands of centipoise. Some specialised designs handle up to 45,000 cP at operating temperature. The actual limit depends on the wiper design and the heating medium.
Q: How does vacuum improve thin‑film evaporation?
Vacuum lowers the boiling point of the liquid, allowing evaporation at lower temperatures. This protects heat‑sensitive products from thermal degradation and reduces the energy required for vaporisation.
Q: What is the difference between wiped‑film and short‑path evaporators?
Wiped‑film evaporators have a separate condenser connected by a vapour duct. Short‑path evaporators integrate the condenser inside the evaporator, minimising pressure drop and enabling operation below 0.01 mbar.
Q: Which vacuum pump is best for thin‑film evaporation?
For 1–10 mbar operation, a liquid‑ring pump is a robust choice. For deeper vacuum or oil‑free operation, a dry screw pump is preferred. For molecular distillation at 0.001 mbar, a diffusion or turbo‑molecular pump is required.
Q: Can thin‑film evaporators handle solids or slurries?
Yes. The mechanical agitation keeps solids in suspension and prevents fouling of the heated surface. However, the solids content must be manageable; excessive solids may require pre‑filtration.
