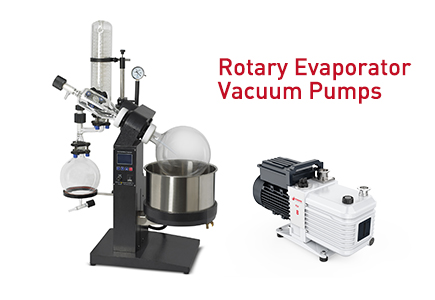

Rotary Evaporator Vacuum Pump: Types, Selection & Oil Backflow Solutions
A rotary evaporator (rotovap) is a core piece of equipment in chemical laboratories, pharmaceutical R&D, fine chemical production, and solvent recovery processes. Its ability to gently remove solvents at low temperatures relies entirely on a stable, controllable vacuum source — the rotary evaporator vacuum pump.
An improperly matched vacuum pump not only slows evaporation efficiency but also risks sample contamination, equipment corrosion, and frequent downtime. From small benchtop lab units paired with diaphragm pumps to large-scale industrial rotovap systems powered by screw pumps, selecting the right technology directly impacts batch consistency and total cost of ownership.
In this guide, we break down everything you need to know about vacuum pumps for rotary evaporators: core functions, common pump types, step-by-step selection criteria, troubleshooting for oil backflow and other common issues, and real-world industrial solutions for corrosive solvent environments.
Why a Vacuum Pump Is Critical for Rotary Evaporators
Rotary evaporation works by reducing the internal pressure of the system to lower the boiling point of solvents, allowing gentle evaporation without damaging heat-sensitive compounds. The vacuum pump is the component that creates and maintains this reduced pressure environment.
Without a properly sized vacuum pump:
Solvents cannot boil at the target temperature, extending processing time
Vacuum fluctuations cause solvent bumping, sample loss, and safety hazards
Aggressive solvent vapors enter the pump and cause premature corrosion and failure
Oil backflow from lubricated pumps contaminates samples and ruins production batches
Solvent recovery rates drop, increasing material waste and environmental emissions
For industrial-scale rotary evaporation systems and OEM rotovap manufacturers, the vacuum system directly determines product reliability, end-user satisfaction, and after-sales costs.
Key Functions of a Rotary Evaporator Vacuum Pump
A high-quality rotovap vacuum pump delivers more than just suction. It fulfills four core roles in the evaporation process:
Precise pressure control: Maintains stable vacuum levels to match the boiling point of different solvents, from ethanol and water to dichloromethane and high-boiling-point oils.
Continuous vapor extraction: Removes evaporated solvent vapor in time to prevent pressure rise inside the system, sustaining steady evaporation rates.
Contamination prevention: For oil-lubricated models, prevents oil backflow into the evaporation system; for oil-free models, eliminates oil contact entirely to protect sample purity.
Process safety: Prevents solvent backflow, controls foaming, and meets hazardous area requirements for flammable solvent environments.
Common Types of Vacuum Pumps for Rotary Evaporators
Different rotary evaporator setups — from small lab benchtop units to large industrial production systems — require different vacuum pump technologies. Below are the most widely used types, with their pros, cons, and ideal applications.
1. Oil-Lubricated Two-Stage Rotary Vane Vacuum Pumps
Oil-sealed two-stage rotary vane pumps are the most traditional and widely matched solution for rotary evaporators. They use rotating vanes and vacuum oil to create a tight seal, delivering deep ultimate vacuum levels.
Advantages: Low initial cost, deep ultimate vacuum (down to 0.001 mbar for two-stage models), high pumping speed for their size, suitable for low-boiling-point solvents and general-purpose use.
Limitations: Low-quality belt-driven models are prone to oil backflow during shutdown; solvent vapors can contaminate pump oil, requiring periodic oil changes; not ideal for highly corrosive solvents without pretreatment.
Best for: General lab and industrial rotovaps, non-corrosive organic solvents, applications prioritizing deep vacuum with a controlled budget.
2. Diaphragm Vacuum Pumps
Diaphragm vacuum pumps operate via reciprocating flexible diaphragms to move gas, with no lubricating oil in the pumping chamber. They are the most widely used oil-free option for small to mid-sized laboratory rotary evaporators.
Advantages: 100% oil-free operation with zero risk of sample contamination; excellent chemical resistance with PTFE diaphragms and seals; low maintenance with no oil changes required; quiet operation for lab environments.
Limitations: Limited ultimate vacuum (typically 1–10 mbar) and lower pumping speed compared to rotary vane models; not suitable for high vapor load or large-scale industrial rotovaps.
Best for: Benchtop lab rotary evaporators, analytical chemistry applications, processes requiring high sample purity with mild to moderate organic solvents.
3. Claw Vacuum Pumps
Claw vacuum pumps use contact-free claw rotors to generate vacuum, with no wearing parts in the pumping chamber and excellent dry-running performance.
Advantages: Exceptional corrosion resistance when constructed with coated or stainless-steel chambers; handles large volumes of solvent vapor; long service life with minimal maintenance.
Limitations: Higher investment cost; larger footprint for equivalent pumping speed.
Best for: Industrial-scale rotary evaporation systems, corrosive solvent processes (acids, halogenated solvents), high-throughput chemical production lines.
4. Liquid Ring Vacuum Pumps
Liquid ring pumps use a working fluid (usually water) to form a seal and generate vacuum.
Advantages: Tolerates liquid carryover and solvent vapor very well; inherently safe for flammable solvents; simple and robust construction.
Limitations: Limited ultimate vacuum (limited by working fluid vapor pressure); higher water and energy consumption.
Best for: Heavy-duty industrial rotovap systems, high-vapor-load processes, hazardous area solvent recovery.
5. Dry Screw Vacuum Pumps
Dry screw vacuum pumps use two intermeshing screws to deliver continuous, pulse-free vacuum with high efficiency, with zero oil in the pumping chamber.
Advantages: Wide operating pressure range; excellent vapor handling capacity; 100% oil-free for zero sample contamination; high energy efficiency with VFD control; extremely low maintenance for continuous operation.
Limitations: Highest upfront cost among the options.
Best for: Large-scale chemical production rotary evaporation, multi-rotovap central vacuum systems, high-purity pharmaceutical processes, and applications requiring zero oil contamination.
How to Choose the Right Vacuum Pump for Your Rotary Evaporator
Selecting a vacuum pump for a rotary evaporator is not just about picking the strongest suction. You need to match the pump to your solvent type, flask size, production scale, and regional safety standards. Follow these 5 key criteria:
1. Match Vacuum Level & Pumping Speed to Your Solvents
First, confirm the boiling point of your solvents at operating vacuum, then select a pump with sufficient ultimate vacuum and flow rate:
For common solvents (ethanol, water, ethyl acetate): 10–100 mbar vacuum is typically sufficient, and diaphragm pumps work for small setups.
For low-boiling-point solvents (dichloromethane, acetone, diethyl ether): 0.1–10 mbar vacuum is recommended, and two-stage rotary vane or dry screw pumps are preferred.
For high-boiling-point solvents (oils, polymers, glycerin): <0.1 mbar deep vacuum may be required, and high-grade two-stage vane or dry screw pumps are needed.
Pumping speed should match the evaporator flask size and evaporation rate. An undersized pump slows production; an oversized pump wastes energy and can cause solvent bumping.
2. Prioritize Chemical Compatibility & Contamination Control
In chemical rotary evaporation, solvent vapor is inevitably drawn into the pump. Choose construction materials based on your solvent aggressiveness and purity requirements:
For mild organic solvents and small lab setups: PTFE diaphragm pumps offer clean, low-maintenance performance.
For general-purpose production with moderate solvent load: Two-stage oil-lubricated rotary vane pumps with anti-backflow valve design deliver strong performance at a lower cost.
For corrosive solvents (acetic acid, hydrochloric acid, chloroform): Choose pumps with PTFE seals, coated chambers, or stainless-steel wetted parts, such as claw pumps or dry screw pumps.
For zero-contamination pharmaceutical and fine chemical processes: Oil-free dry screw pumps are the most reliable long-term solution.
3. Evaluate Anti-Backflow Performance
For oil-lubricated pump options, anti-backflow design is a non-negotiable feature for rotovap applications. Low-cost belt-driven two-stage pumps often lack reliable check valves, leading to frequent oil siphoning into the evaporation system during shutdown. Always verify the pump has an integrated anti-backflow valve structure to protect samples.
4. Evaluate Total Operating & Maintenance Cost
Initial purchase price is only part of the total cost. Factor in:
Oil change frequency and waste disposal cost for oil-lubricated pumps
Diaphragm and filter replacement cycles for oil-free pumps
Expected service life and spare part availability
Energy consumption, especially for 24/7 operation
5. Verify Safety & Regional Compliance Standards
For industrial facilities and OEM equipment matching, the pump must meet local safety and environmental regulations:
EU market: CE certification, ATEX certification for explosive atmosphere zones
EAEU market: EAC certification
Indian and South Asian market: Compliance with local electrical safety and environmental norms
Global environmental: ROHS compliance for hazardous substance limits
Quality systems: ISO 9001 certified manufacturing for consistent quality
Common Rotary Evaporator Vacuum Pump Problems & Troubleshooting
Even well-selected pumps can develop issues with improper use or lack of maintenance. Here are the most frequent problems and their solutions:
1. Insufficient Vacuum / Slow Pump-Down
Possible causes: System leaks at glass joints or seals; worn pump vanes or diaphragms; clogged inlet filter; contaminated pump oil (for oil-sealed models).
Fixes: Perform a leak test on the entire rotovap system; replace worn seals, vanes, or diaphragms; clean or replace inlet filters; change pump oil and inspect for contamination.
2. Vacuum Fluctuation During Operation
Possible causes: Solvent foaming or bumping; partial blockage in the suction line; unstable pump operation due to overheating.
Fixes: Reduce evaporation temperature or adjust vacuum level to control foaming; inspect and clean suction lines; ensure adequate ventilation around the pump.
3. Pump Corrosion & Premature Failure
Possible causes: Using a non-corrosion-resistant pump with aggressive solvents; lack of inlet vapor trapping; no gas ballast usage.
Fixes: Install a cold trap or vapor condenser before the pump inlet; upgrade to a corrosion-resistant pump model; use gas ballast function to reduce vapor condensation inside the pump.
4. Pump Overheating
Possible causes: Blocked cooling vents; continuous operation at extreme vacuum; excessive solvent vapor entering the pump.
Fixes: Clean cooling fins and ensure proper airflow; verify the pump is sized correctly for the duty cycle; add vapor pretreatment to reduce thermal load on the pump.
5. Oil Backflow into the Rotary Evaporator System
Possible causes: Failed or worn anti-backflow valves in oil-lubricated pumps; improper shutdown procedure allowing oil to siphon back into the system; low oil level or degraded pump oil in belt-driven two-stage models.
Fixes: Upgrade to pumps with integrated anti-backflow valve design; follow proper shutdown sequence (vent the system before turning off the pump); replace worn check valves; for persistent issues, switch to oil-free pump technologies.
Case Study: How Wordfik Solved Oil Backflow Issues for an Indian Rotary Evaporator Manufacturer
Client Background
A leading laboratory equipment manufacturer in India specializing in rotary evaporators supplies its products to chemical R&D labs, pharmaceutical testing facilities, and fine chemical enterprises across South Asia.
Core Challenge
The manufacturer had long paired its rotovap systems with generic belt-driven two-stage rotary vane vacuum pumps. End users frequently reported oil backflow into the evaporation flask during pump shutdown, which caused sample contamination, ruined test batches, and led to high after-sales complaint rates and warranty costs for the manufacturer.
The client needed a reliable pump replacement that would eliminate oil backflow while staying within their product cost structure, without compromising vacuum performance.
Wordfik's Proposed Solutions
After evaluating the client’s technical specifications, target market, and cost requirements, our technical team presented two targeted options:
DVX Series Oil-Free Dry Screw Vacuum Pump: A 100% oil-free solution that completely eliminates the risk of oil contamination, ideal for high-purity pharmaceutical and fine chemical application scenarios.
Wordfik Two-Stage Oil-Lubricated Rotary Vane Pump: A cost-competitive option with an integrated anti-backflow valve design that prevents oil siphoning during system shutdown, matching the vacuum performance of their original pump while resolving the core pain point.
Testing & Final Selection
The client conducted parallel performance tests on both pump models over 3 months, simulating continuous lab operation and repeated start-stop cycles to verify anti-backflow performance, vacuum stability, and durability.
Both pumps delivered consistent vacuum levels fully matching the client’s rotovap specifications.
The two-stage oil-lubricated pump showed zero oil backflow across all test cycles, thanks to its optimized valve structure and sealing design.
From a total cost perspective, the two-stage rotary vane pump offered a more competitive price point that aligned with the client’s product positioning and mainstream market demand.
Outcome
The client officially selected Wordfik’s two-stage oil-lubricated rotary vane pump as its standard matching vacuum source for full-series rotary evaporators. Since switching, the client’s after-sales complaints related to oil contamination have dropped by over 90%, and end-user satisfaction has improved significantly. The two parties have established a long-term strategic supply partnership.
FAQ
Q: Diaphragm vs rotary vane vacuum pump for rotary evaporator: which is better?
Diaphragm pumps are oil-free, low-maintenance, and ideal for small benchtop lab rotovaps with mild solvents. Rotary vane pumps deliver deeper vacuum and higher pumping speed, making them better for larger systems and low-boiling solvents. Choose based on your scale, purity requirements, and solvent type.
Q: How do I prevent oil backflow from my rotary evaporator vacuum pump?
First, always vent the vacuum system before shutting off the pump to avoid siphoning. For long-term reliability, choose pumps with built-in anti-backflow check valves, such as Wordfik’s two-stage oil-lubricated rotary vane pumps. For zero-oil requirements, opt for oil-free diaphragm or dry screw pump technologies.
Q: Do I need a cold trap between my rotovap and vacuum pump?
For organic solvent evaporation, especially corrosive or high-boiling solvents, a cold trap is highly recommended. It condenses most solvent vapor before it reaches the pump, drastically reducing corrosion and extending pump service life.
Q: What size vacuum pump do I need for a 20L rotary evaporator?
For a 20L industrial rotary evaporator, a pumping speed of 10–30 m³/h is generally recommended, depending on solvent volatility. For corrosive or high-vapor-load processes, opt for a larger claw or liquid ring pump.
Conclusion
The right rotary evaporator vacuum pump directly improves evaporation efficiency, reduces downtime, and lowers long-term operating costs for chemical and pharmaceutical processes. By matching pump technology to your solvent chemistry, production scale, and contamination control requirements, you can achieve consistent, safe, and cost-effective rotary evaporation.
Whether you need a single pump for a pilot-scale rotovap, a bulk supply for OEM equipment matching, or a custom central vacuum system for a full production line, Wordfik can provide a tailored solution backed by global certifications and full technical support. Contact our vacuum experts today for a free selection consultation and system design proposal.
