Resin Infusion Vacuum Solution: Pumps, Process Optimization & Troubleshooting Guide
Resin infusion (also known as vacuum assisted resin transfer molding, VARTM) is the dominant manufacturing process for high-performance composite parts, from wind turbine blades and marine hulls to aerospace components and automotive carbon fiber structures. The entire process — from fiber impregnation to final curing — relies entirely on a stable, reliable resin infusion vacuum solution to drive resin flow, remove trapped air, and maintain consistent compaction pressure.
A poorly designed vacuum system causes voids, incomplete wet-out, resin waste, and even full part rejection. For large-scale industrial production, a single vacuum failure mid-cure can result in tens of thousands of dollars in material loss and production downtime. Selecting the right vacuum pump technology, protection setup, and system configuration is therefore a critical decision for every composite manufacturer.
In this guide, we break down everything you need to know about vacuum solutions for resin infusion: core process requirements, proven pump technologies, step-by-step selection criteria, solutions for common pain points like resin backflow, and industrial-grade system configurations for continuous production.
Why a Professional Vacuum System Is Critical for Resin Infusion

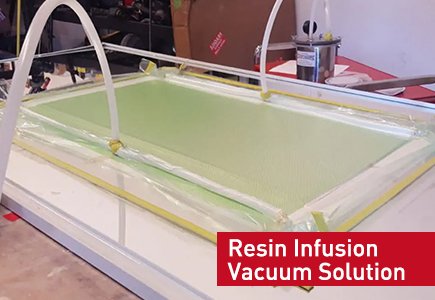

The resin infusion process works by creating a pressure differential inside a sealed vacuum bag: atmospheric pressure pushes liquid resin through the fiber reinforcement, while the vacuum source extracts air and excess volatiles. The vacuum system is the core power unit that makes this happen, and its performance directly determines final part quality.
Without a properly sized and protected vacuum system:
Trapped air remains in the laminate, creating voids and reducing structural strength by 20–40%
Inconsistent vacuum pressure causes uneven resin flow, leading to dry spots and incomplete impregnation
Liquid resin is drawn into the pump, curing inside the chamber and causing irreversible equipment damage
Solvent vapors from polyester or vinylester resins degrade pump oil and accelerate corrosion
Vacuum drops during the cure cycle result in delamination and full part scrappage
For large components such as wind turbine blades and ship hulls, which require 8–24 hours of continuous vacuum hold, system reliability is the single most important factor controlling production yield.
Key Vacuum Requirements for High-Quality Resin Infusion
Not all industrial vacuum pumps are suitable for resin infusion. To deliver consistent, production-grade results, a vacuum solution must meet the following 5 core requirements:
1. Sufficient & Stable Vacuum Level
High-quality infusion requires an absolute pressure of 20 mbar or lower (equivalent to 98%+ vacuum) to fully remove entrapped air and achieve low void content. For aerospace and high-performance structural parts, 5–10 mbar absolute pressure is recommended. The system must maintain this level steadily throughout the entire infusion and cure cycle, with no pressure spikes or drops.
2. Adequate Pumping Speed for Fast Pull-Down
The pump must evacuate the bag and mold quickly to start infusion before resin begins to gel. Required pumping speed scales with part size: small workshop parts need 10–20 m³/h, while large wind blade production requires 100+ m³/h per mold. Sufficient flow rate also compensates for minor bag leaks and prevents pressure loss during active resin flow.
3. Resin Ingress Protection
Accidental resin suction is one of the top causes of pump failure in composite manufacturing. A proper infusion vacuum system must include multi-stage resin traps and overflow protection to block liquid resin before it reaches the pumping chamber. For high-volume production, additional safety sensors and shut-off valves are recommended.
4. Chemical Resistance to Resin Vapors
Unsaturated polyester and vinylester resins release styrene and other volatile components under vacuum. These vapors can contaminate pump oil, cause seal degradation, and corrode internal components. The vacuum solution must be configured to handle chemical vapors, either through oil-sealed designs with high oil capacity or dry pump technologies with corrosion-resistant materials.
5. Continuous Duty Cycle Reliability
Industrial resin infusion and post-cure cycles can run for 12–24 hours nonstop. The vacuum pump must be rated for continuous operation, with effective heat dissipation and durable components to avoid overheating or premature wear during long production runs.
Common Vacuum Pump Types for Resin Infusion Processes
Different production scales, resin types, and quality requirements call for different vacuum technologies. Below are the most widely used pump types for resin infusion, with their advantages, limitations, and ideal applications.
1. Oil-Lubricated Single-Stage Rotary Vane Vacuum Pumps
Oil-sealed single-stage rotary vane pumps are the most widely adopted solution for resin infusion, from small fabrication shops to medium-sized production lines. They use vacuum oil to seal and cool the pumping chamber, delivering reliable vacuum at a competitive cost.
Advantages: Low initial investment; excellent vacuum level (down to 0.5 mbar absolute); compact size; proven reliability for general composite use; wide range of available sizes.
Limitations: Requires regular oil changes when processing styrenic resins; resin ingress will cause permanent damage without proper traps.
Best for: General fiberglass and carbon fiber infusion, small to medium part production, workshops with mixed composite processes.
Note: Two-stage rotary vane pumps are not recommended for continuous resin infusion duty. They are designed for deep vacuum applications and perform poorly when running continuously at the higher pressure ranges typical of infusion processes.
2. Dry Screw Vacuum Pumps
Dry screw vacuum pumps use two intermeshing screw rotors to deliver smooth, pulse-free vacuum across a wide pressure range. They are the premium choice for demanding composite manufacturing.
Advantages: Wide operating pressure range; exceptional vapor handling capacity; highly corrosion-resistant configurations available; extremely low maintenance; high energy efficiency with VFD control.
Limitations: Highest initial purchase cost.
Best for: Aerospace-grade composite production, large wind blade manufacturing, multi-mold central vacuum systems, facilities requiring zero oil contamination.
3. Liquid Ring Vacuum Pumps
Liquid ring vacuum pumps use water or another working fluid to form the vacuum seal. They are extremely tolerant of liquid and vapor carryover.
Advantages: Immune to damage from liquid resin carryover; excellent at handling high volumes of solvent vapor; inherently safe for flammable resin systems; simple and robust construction.
Limitations: Limited ultimate vacuum (limited by working fluid vapor pressure); higher water and energy consumption.
Best for: High-volume open molding and infusion lines using high-styrene resins, heavy-duty industrial composite production.
How to Select the Right Resin Infusion Vacuum Solution
Choosing the optimal vacuum system depends on your production scale, resin chemistry, part size, and long-term cost goals. Follow this 5-step selection framework:
1. Size Pumping Speed to Part Volume & Quantity
Calculate your total mold volume and number of simultaneous stations, then add a 30–50% safety margin to account for leaks and flow resistance.
Benchtop & small parts (≤1 m²): 10–20 m³/h single-stage vane pump
Medium parts & single mold: 30–60 m³/h vane or claw pump
Large parts & multi-mold production: 100+ m³/h claw, screw, or liquid ring system
2. Match Pump Technology to Resin Type
Epoxy resin systems: Standard single-stage rotary vane pumps work well with basic resin traps.
Polyester / vinylester resins: Prioritize dry claw, dry screw, or liquid ring pumps to avoid rapid oil degradation from styrene vapors.
High-corrosion resin systems: Select pumps with stainless steel wetted parts and PTFE seals.
3. Evaluate Protection & Safety Configurations
At minimum, every infusion vacuum setup needs a high-capacity resin catch pot between the mold and the pump. For production-critical operations, add:
Secondary overflow safety traps
Vacuum level sensors with automatic shutoff
Inlet filters and vapor condensers for solvent-heavy processes
4. Factor in Total Operating Cost
Initial price is only a fraction of lifetime cost. Compare:
Oil change frequency and waste disposal costs for oil-sealed pumps
Consumable replacement cycles for dry pumps
Energy consumption, especially for 24/7 operation
Expected service life and spare part availability
Common Vacuum Problems in Resin Infusion & Solutions
Even with properly sized equipment, operational issues can arise. Below are the most frequent vacuum-related problems and their proven fixes:
1. Insufficient Vacuum / Slow Pull-Down
Causes: Leaks in the vacuum bag or connections; undersized pump; clogged inlet filter; degraded pump oil (oil-sealed models).
Solutions: Perform a pressure-rise leak test before every infusion; seal bag edges and connections with butyl tape; clean or replace filters; change contaminated pump oil; upgrade to a higher-flow pump for large molds.
2. Resin Backflow Into the Vacuum Pump
Causes: Missing or undersized resin trap; operator error allowing resin to run past the outlet; overflow due to uncontrolled flow rate.
Solutions: Install properly sized resin catch pots with sufficient capacity; add secondary overflow traps for high-risk processes; train operators to monitor flow front and clamp lines in time; for recurring issues, upgrade to liquid ring or dry claw pumps with higher liquid tolerance.
3. Vacuum Fluctuation During Cure
Causes: Developing bag leaks; pump overheating; vapor release from resin or moisture in the fabric.
Solutions: Always perform a full leak test before infusion; ensure pump ventilation and cooling; use vapor condensers for high-volatile resins; for critical production, use a vacuum accumulator tank to smooth out pressure fluctuations.
4. Rapid Pump Oil Degradation (Oil-Sealed Pumps)
Causes: Styrene and solvent vapors dissolving in pump oil; moisture from humid environments or wet materials.
Solutions: Use gas ballast function to reduce vapor condensation; install inlet vapor separators; shorten oil change intervals; for long-term improvement, switch to dry claw or screw pump technology.
5. Pump Overheating & Shutdown
Causes: Blocked cooling vents; continuous operation at extreme pressure; excessive vapor load.
Solutions: Clean cooling fins and ensure adequate airflow around the pump; verify the pump is rated for continuous duty; add vapor pretreatment to reduce thermal load on the pump.
FAQs
Q: What vacuum level do I need for resin infusion?
For general fiberglass infusion, a minimum of 95–98% vacuum (20–50 mbar absolute) is standard. For high-performance carbon fiber and aerospace parts, 99%+ vacuum (≤10 mbar absolute) is recommended to achieve minimal void content. Always perform a leak test before starting infusion to confirm stable pressure.
Q: Can I use a two-stage rotary vane pump for resin infusion?
It is not recommended for continuous production use. Two-stage pumps are designed for deep, short-duration vacuum tasks and do not perform well when running continuously at the relatively higher pressure ranges of resin infusion. Single-stage oil-lubricated vane pumps are a far better fit for this application.
Q: How do I prevent resin from getting into my vacuum pump?
Always install a properly sized resin catch pot (resin trap) between the mold and the pump inlet. For extra protection, add a secondary overflow safety trap. Train operators to monitor the resin flow front and clamp the vacuum line before resin reaches the outlet. For high-volume production, consider dry claw or liquid ring pumps that tolerate occasional liquid ingress without damage.
Q: Oil-sealed vs dry vacuum pump for resin infusion: which is better?
Oil-sealed rotary vane pumps have lower upfront cost and deliver deeper vacuum, making them ideal for epoxy resin processing and smaller operations. Dry claw or screw pumps have lower long-term maintenance, resist solvent vapors better, and eliminate oil waste, making them better for high-volume polyester resin production. Choose based on your resin type, production volume, and total cost preference.
Q: What are the benefits of a central vacuum system for resin infusion?
A central vacuum system shares vacuum power across multiple molds, reducing total equipment count and energy consumption. It allows centralized maintenance, quieter shop floors, and easier addition of redundant backup pumps to prevent production downtime. It is the most cost-effective configuration for facilities with 3 or more active infusion stations.
Conclusion
A high-quality resin infusion vacuum solution is the foundation of consistent, low-void composite part production. By selecting the right pump technology, implementing proper resin protection, and sizing the system correctly for your production scale, you can significantly reduce scrap rates, extend equipment life, and lower total operating costs.
Whether you need a single pump for a workshop infusion station, a production-ready system for a wind blade line, or a custom central vacuum solution for a full composite manufacturing facility, Wordfik can provide a tailored, globally certified solution backed by full technical support. Contact our vacuum experts today for a free process evaluation and system design proposal.
