Condenser exhaust systems are the backbone of stable and efficient operation in thermal power plants. The core function of a condenser exhauster is to remove non-condensable air and residual gas from the steam condenser, maintain optimal vacuum pressure, and reduce turbine back pressure. A stable condenser vacuum directly improves power generation efficiency, reduces coal consumption, and avoids unit load reduction caused by vacuum deterioration.
In modern power generation industries, liquid ring vacuum pumps and steam ejectors are the two most dominant condenser exhauster solutions. Each technology has unique advantages in energy consumption, operational stability, maintenance difficulty, and application adaptability. For power plant engineers and procurement teams, selecting the right condenser exhaust equipment is critical for long-term operational efficiency and cost control.
This article comprehensively compares liquid ring vacuum pumps and steam ejectors from working principles, performance, cost, maintenance, and application scenarios, helping power plants choose the best condenser exhauster for power generation needs.
What Is a Condenser Exhauster in Thermal Power Plants?
A condenser exhauster is a key auxiliary vacuum device for thermal power unit condensers. During the operation of steam turbines, a small amount of air and non-condensable gas will continuously penetrate into the closed condenser system. If these gases accumulate, they will increase condenser back pressure, weaken heat exchange efficiency, reduce unit power output, and even cause equipment corrosion and operational failures.
Condenser exhausters continuously extract accumulated non-condensable gases to maintain a high-vacuum, low-back-pressure operating environment. At present, liquid ring vacuum pump systems and steam ejector systems are the two mainstream technical solutions widely adopted in coal-fired power plants, thermal power stations, and industrial power generation units worldwide.

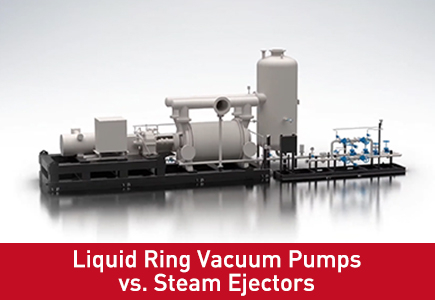

Overview of Liquid Ring Vacuum Pumps for Condenser Systems
Liquid ring vacuum pumps are mechanical vacuum generating equipment designed for industrial continuous vacuum operation. They use circulating liquid (usually water) as the sealing medium to form a rotating liquid ring inside the pump cavity. With the rotation of the impeller, periodic volume changes are generated to complete air suction, compression, and exhaust, realizing stable vacuum extraction.
In thermal power plant condenser systems, liquid ring vacuum pumps are used to steadily remove non-condensable gases. They feature simple structure, stable vacuum output, low failure rate, and no need for steam source support. Modern energy-saving liquid ring vacuum pumps are equipped with variable frequency control systems, which can adjust operating power according to real-time condenser gas volume, greatly reducing idle energy consumption.
As a mature mechanical vacuum solution, it is widely used in medium and large thermal power units, and has gradually replaced traditional steam ejectors in new power plant projects due to its excellent energy-saving performance.
Overview of Steam Ejectors for Power Plant Condensers
Steam ejectors are jet-type vacuum equipment based on fluid dynamic principles. They rely on high-pressure steam as the power source. High-speed steam jet flow is generated through the nozzle, forming a local negative pressure area inside the ejector cavity, thereby sucking and exhausting non-condensable gases in the condenser.
Steam ejectors belong to non-mechanical vacuum equipment with no rotating parts, no friction components, and extremely low mechanical failure probability. They have the advantages of simple installation, low initial investment, and strong anti-impurity ability. For a long time, steam ejectors were the mainstream condenser exhaust solution for old thermal power plants, especially suitable for power plants with sufficient surplus steam sources.
However, steam ejectors rely entirely on continuous high-pressure steam supply, resulting in high long-term operating energy consumption, which cannot meet the energy-saving and consumption reduction requirements of modern green power plants.
Core Comparison: Liquid Ring Pump vs Steam Ejector (Key Metrics)
To help power plant teams make intuitive and accurate selection, we compare the two condenser exhauster solutions from core operational indicators:
1. Vacuum StabilityLiquid ring vacuum pumps provide continuous and stable vacuum pressure with small fluctuation range, which can precisely control condenser back pressure and ensure stable unit load operation. Steam ejectors are affected by steam pressure and flow fluctuation, resulting in unstable vacuum degree, which easily causes subtle changes in power generation efficiency.
2. Energy ConsumptionLiquid ring vacuum pumps only consume electric energy and circulating water, with low comprehensive operating cost. Variable frequency models can further reduce energy consumption by 20%–30%. Steam ejectors consume a large amount of high-pressure steam for a long time, with serious energy loss and high OPEX, which is not friendly for long-term operation.
3. Equipment Structure & Failure RateSteam ejectors have no rotating parts, zero mechanical wear, and ultra-low failure rate. Liquid ring pumps have impeller rotating structures, with regular wear loss but mature and controllable failure rate through standardized maintenance.
4. Installation & Occupied SpaceSteam ejectors occupy a small area with simple pipeline connection. Liquid ring vacuum pump systems need supporting water circulation systems and pump unit installation, occupying relatively larger space.
5. Environmental AdaptabilityLiquid ring pumps adapt to full-load and variable-load operation of power units. Steam ejectors are limited by steam source conditions and cannot operate normally when steam pressure is insufficient.
Pros and Cons of Liquid Ring Vacuum Pumps for Condenser Exhaust
Advantages
Stable and precise vacuum output, effectively improving power generation efficiency
Low long-term operating energy consumption, significant energy-saving benefits
Independent operation without relying on external steam sources
Adjustable operating frequency, adapting to variable unit load changes
Low noise and stable operation, suitable for long-term continuous work
Disadvantages
Higher initial procurement and installation investment than steam ejectors
Regular maintenance of impellers, bearings and circulating water systems is required
Pros and Cons of Steam Ejectors for Condenser Exhaust
Advantages
No mechanical moving parts, almost no mechanical failure
Low CAPEX, simple structure and convenient installation
Strong tolerance to impurity gas, not easy to block
Disadvantages
Extremely high steam consumption, leading to high long-term operating costs
Unstable vacuum pressure, affecting unit power generation stability
Dependent on stable high-pressure steam sources, poor operational flexibility
Unable to adapt to energy-saving transformation and low-carbon operation requirements
Key Factors to Choose the Right Condenser Exhauster for Power Generation
1. Unit Operational Scale and Load StabilityFor large and medium-sized thermal power units with long-term continuous operation, liquid ring vacuum pumps are the best choice. They ensure stable vacuum and long-term energy saving. For small standby power units with intermittent operation, steam ejectors can meet basic operational needs with lower initial cost.
2. On-Site Steam Source ConditionsIf the power plant has surplus and idle high-pressure steam for a long time, steam ejectors can make full use of waste steam to reduce comprehensive cost. If the steam supply is insufficient or unstable, liquid ring pump systems are more reliable.
3. Energy-Saving and Low-Carbon Transformation GoalsUnder the background of global energy conservation and emission reduction, liquid ring vacuum pumps have become the mainstream choice for new power plant projects and old plant transformation due to their low energy consumption and high efficiency.
4. Later Maintenance Cost BudgetTeams with limited daily maintenance manpower can choose steam ejectors with zero mechanical maintenance. Power plants focusing on long-term OPEX reduction should prioritize liquid ring vacuum pump systems.
Common Application Scenarios for Both Vacuum Solutions
Liquid Ring Vacuum Pump Application Scenarios
New large-scale thermal power generation units
Old power plant energy-saving and efficiency upgrade projects
Power plants pursuing low carbon emission and low operating cost
Units with unstable or insufficient steam supply
Steam Ejector Application Scenarios
Old traditional thermal power units built in early years
Small standby power generation equipment
Power plants with long-term surplus waste steam resources
Short-term temporary vacuum exhaust working conditions
Maintenance & Lifespan Comparison
Steam ejectors have a service life of more than 15 years with almost no daily maintenance. Only regular pipeline inspection and anti-blocking cleaning are required, with extremely low later maintenance costs.
The service life of liquid ring vacuum pumps can reach 10–12 years with standardized maintenance. Daily maintenance only includes checking circulating water quality, lubricating bearings, and cleaning filter screens. The maintenance process is simple and mature, and the failure rate can be effectively controlled. Compared with the high steam consumption cost of steam ejectors, the comprehensive later cost is lower.
Cost Analysis: CAPEX vs OPEX
Steam ejectors have low one-time investment (CAPEX) and no mechanical maintenance cost, but long-term steam consumption leads to high operating cost (OPEX), which is uneconomical for long-term continuous operation.
Liquid ring vacuum pumps have slightly higher initial equipment and installation costs, but the electric energy and water consumption are low. For power plants operating 24/7 all year round, the energy-saving benefits can offset the initial investment within 1–2 years, bringing long-term cost reduction advantages.
Conclusion
Both liquid ring vacuum pumps and steam ejectors are reliable condenser exhauster solutions for power generation, but they are suitable for different operational scenarios. Steam ejectors are ideal for small units, temporary working conditions and power plants with sufficient waste steam, relying on low initial investment and maintenance-free advantages.
For modern large and medium-sized thermal power plants focusing on efficiency improvement, energy saving and stable operation, liquid ring vacuum pumps are the optimal condenser exhauster choice. They provide stable vacuum control, reduce unit coal consumption, lower long-term operating costs, and fully meet the energy-saving and low-carbon development needs of the power generation industry.
When upgrading or configuring condenser vacuum systems, power plant engineers should comprehensively consider unit scale, steam source conditions, operating cycle and cost budget to select the most matching vacuum exhaust solution.
FAQ
Q: Which is more energy-saving, liquid ring pump or steam ejector for condenser exhaust?
A: Liquid ring vacuum pumps are far more energy-saving for long-term continuous power plant operation. Steam ejectors consume massive high-pressure steam, resulting in high OPEX, while liquid ring pumps only consume electricity and circulating water with adjustable frequency for energy saving.
Q: Can steam ejectors be replaced with liquid ring pumps in old power plants?
A: Yes. Most old thermal power plant steam ejector systems can be upgraded to liquid ring vacuum pump systems, which effectively improves condenser vacuum stability and reduces overall power plant energy consumption.
Q: Do liquid ring vacuum pumps require complex daily maintenance?
A: No. Liquid ring pumps only need regular inspection of water circulation, bearing lubrication and filter cleaning. The maintenance process is simple and suitable for long-term unattended operation of power plants.
Q: Which solution offers more stable condenser vacuum?
A: Liquid ring vacuum pumps deliver continuous, stable vacuum output with minimal fluctuation, ensuring stable turbine back pressure and consistent power generation efficiency, outperforming steam ejectors affected by steam pressure changes.
