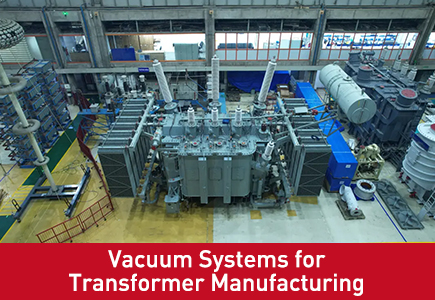

Vacuum Systems for Transformer Manufacturing

Views: 0 Author: Wordfik Vacuum Publish Time: 2026-01-20 Origin: Wordfik Vacuum

Inquire

Vacuum Systems for Transformer Manufacturing: Complete Solutions for Drying, Evacuation & Oil Filling

Transformer manufacturing demands strict control of moisture, gas, and impurities to guarantee dielectric strength, operational stability, and service life. Vacuum systems have become indispensable core equipment throughout the production chain—from core & winding drying to final vacuum oil filling.

A reliable vacuum solution effectively removes moisture and non‑condensable gases from insulation materials, significantly improving product quality and reducing failure risks. This article covers key vacuum processes, ideal system setups, and professional solutions for transformer manufacturing.

Why Vacuum Systems Are Critical in Transformer Manufacturing

Transformers rely on high‑performance insulation systems (cellulose paper, pressboard, and insulating oil) to withstand high voltage and ensure safe operation. Moisture and residual gas are the top threats:

Reduce dielectric strength and increase breakdown risk
Accelerate insulation aging and shorten service life
Cause partial discharge and long‑term performance degradation

Vacuum systems create a low‑pressure environment that lowers the boiling point of water and efficiently extracts deep‑seated moisture and gas without damaging materials. For high‑voltage transformers (≥35kV), professional vacuum treatment is mandatory for quality certification.

Key Vacuum Processes in Transformer Production

1. Vacuum Drying (Including Kerosene Vapor Phase Drying)

Vacuum drying is the most important step before oil filling. It removes moisture from windings, cores, and solid insulation.

Kerosene Vapor Phase Drying (KVPD) is the industry’s leading method:

Uses special kerosene vapor as heat transfer medium
Uniform heating, fast moisture volatilization
Self‑cleaning effect removes dust and particles
Residue‑free after evaporation (>99.9% removal)
Boosts dielectric strength by 15–25% vs. conventional methods

2. Vacuum Evacuation & Degassing

After drying, the transformer tank and assembly undergo high‑vacuum evacuation to:

Remove residual air and gases
Prevent oxidation and insulation deterioration
Create ideal conditions for vacuum oil filling

Typical target vacuum: 0.1–5 mbar for high‑voltage models.

3. Vacuum Oil Impregnation & Filling

Oil filling under vacuum ensures:

Complete oil penetration into insulation gaps
No trapped air bubbles
Stable insulation performance and heat dissipation
Compliance with IEC and national standards

Recommended Vacuum System Configurations for Transformers

The most widely adopted and efficient structure is a two‑stage vacuum unit:

Backing pump: Oil‑lubricated rotary vane vacuum pump (stable base vacuum)
Booster pump: Roots vacuum pump (high pumping speed, deep vacuum)

This combination:

Greatly improves evacuation speed
Achieves and maintains high vacuum levels
Handles water vapor and condensable gases smoothly
Fits small, medium, and large power transformers (up to 500kV, 800kV, 1000kV)

Wordfik Vacuum Solutions for Transformer Manufacturing

Wordfik provides one‑stop customized vacuum systems for transformer producers, fully compatible with drying, evacuation, and oil filling processes.

Core Advantages

High‑efficiency Roots + rotary vane combinationStable performance, high pumping speed, ideal for KVPD and continuous production.
Wide vacuum rangeMeets requirements from rough vacuum for drying to high vacuum for evacuation.
Robust against moisture & vapor Special design avoids liquid emulsification and component damage.
Customizable skid‑mounted systemsWith separators, coolers, control panels, and sensors for plug‑and‑play use.
Low noise, low energy consumption, easy maintenanceReduces long‑term operating cost for factories.

Typical Model Matching

Roots vacuum pump: RTOW series, LCVS series (1200L/s high flow for large transformers)
Backing pump: PVX series oil‑lubricated rotary vane pump
Full system: Skid‑mounted vacuum unit with automatic control

Installation & Maintenance Best Practices

Install leak‑tight pipelines and conduct pressure testing before use
Monitor vacuum level, temperature, and water vapor in real time
Regularly check sealing liquid, filters, and lubrication
Perform performance calibration annually to ensure process stability
Use VFD for energy saving under variable load conditions

Benefits of Optimized Vacuum Systems

Significantly improves dielectric strength and insulation resistance
Reduces transformer failure rate and extends service life
Shortens production cycles and boosts output efficiency
Ensures compliance with global quality and safety standards
Lowers total operation cost with stable and reliable performance

Conclusion

Vacuum systems are the cornerstone of high‑quality transformer manufacturing. From vacuum drying to evacuation and oil filling, a professional, stable vacuum solution directly determines product performance and market competitiveness.

Wordfik’s Roots + rotary vane vacuum systems are specially designed for transformer production, supporting kerosene vapor phase drying and high‑vacuum evacuation. We provide customized solutions, reliable equipment, and full after‑sales support to help transformer manufacturers achieve stable, efficient, and high‑quality production.

FAQ

Q1: What vacuum level is required for transformer manufacturing?

A1: Most processes require 0.1–5 mbar. High‑voltage models often need ≤1 mbar for deep evacuation.

Q2: Why choose a Roots + rotary vane combination system?

A2: The backing pump provides stable base vacuum; the Roots pump boosts pumping speed and ultimate vacuum, ideal for large chambers and fast production.

Q3: Can your systems support kerosene vapor phase drying (KVPD)?

A3: Yes. Wordfik vacuum systems are specially designed to handle kerosene vapor and moisture safely and efficiently.
