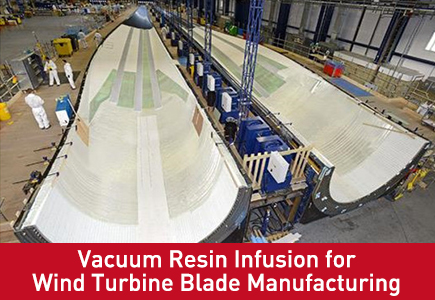

Vacuum Resin Infusion for Wind Turbine Blade Manufacturing
Wind turbine blades are the largest and most critical composite components in renewable wind energy systems. Made of fiberglass, carbon fiber, and high-performance resin matrix, wind blades require high strength, lightweight structure, and zero internal defects to withstand long-term wind load and harsh outdoor environments.
Vacuum Resin Infusion (VRI) is the dominant molding technology for modern wind turbine blade manufacturing. Replacing traditional hand lay-up processes, vacuum-assisted infusion ensures uniform resin penetration, void-free molding, and consistent composite density. High-stability vacuum systems are the core guarantee for qualified blade production.
This article explains the working principle, full process flow, vacuum equipment selection, technical advantages, and optimization strategies of vacuum resin infusion for wind turbine blade manufacturing.
What Is Vacuum Resin Infusion (VRI) in Wind Blade Production?
Vacuum Resin Infusion (VRI) is a closed composite molding process that uses controlled negative pressure to drive liquid epoxy resin to infiltrate dry fiber preforms. In wind turbine blade manufacturing, workers lay multi-layer fiberglass mats, core materials, and flow media inside the mold, then seal the entire mold cavity with vacuum bags.
Vacuum pumps extract air completely from the sealed mold, forming stable negative pressure. Under vacuum pressure difference, liquid resin flows evenly along the flow channel, fully infiltrates every fiber layer, and fills tiny gaps. After curing and solidification, the finished wind blade features high compactness, uniform structure, and excellent mechanical performance.
This low-cost, high-precision composite molding method has become the universal standard for onshore and offshore wind turbine mass production.
Why Vacuum Infusion Is the Standard for Modern Wind Blade Manufacturing
Traditional manual lay-up and open molding processes cannot meet the quality requirements of large-scale wind blades. Vacuum resin infusion solves multiple industry pain points:
Eliminate internal voids: Complete air extraction avoids bubble defects that cause blade cracking and fatigue failure.
Uniform resin distribution: Vacuum-driven infusion ensures consistent resin-fiber ratio across the entire blade surface.
Improve structural strength: Compact composite structure enhances wind resistance, tensile strength and service life.
Reduce resin waste: Closed vacuum environment controls resin dosage accurately and saves production costs.
Environmentally friendly workshop: Closed molding reduces volatile organic compound (VOC) emissions compared with open processes.
Complete Vacuum Resin Infusion Process Steps for Wind Turbine Blades
1. Mold Preparation & Material Laying
Clean and preheat the wind blade mold, then lay release agent, fiberglass layers, core materials, flow mesh, and peel ply in strict accordance with the process standards to form a dry preform structure.
2. Vacuum Bag Sealing
Cover the entire mold with high-airtight vacuum bag film and seal all edges completely to form an isolated closed cavity, preventing air leakage during infusion.
3. Pre-Vacuum Air Extraction
Connect professional vacuum pump systems to extract air inside the sealed mold. Stabilize the vacuum degree to eliminate residual air between fiber layers and ensure a negative pressure molding environment.
4. Controlled Resin Infusion
Open the resin inlet valve. Under stable vacuum pressure, liquid epoxy resin flows uniformly and infiltrates all fiber layers without dead zones.
5. Vacuum Holding & Defoaming
Continue maintaining stable vacuum pressure after resin filling to remove micro-bubbles generated during infiltration, achieving void-free composite molding.
6. Heating Curing & Demolding
Heat the mold for constant-temperature curing. After the resin is fully solidified, release the vacuum and complete blade demolding and post-processing.
Role of Vacuum Systems in Resin Infusion Molding
Vacuum equipment determines the yield rate and mechanical performance of wind turbine blades. The vacuum system undertakes three core missions in the infusion process:
Complete Air Removal: Thoroughly extracts trapped air inside fiber layers to avoid bubble defects, the key to preventing blade fatigue damage.
Stable Pressure Driving: Provides continuous and stable negative pressure power to ensure uniform resin flow and consistent thickness of each blade section.
Micro Defoaming & Compaction: Long-term vacuum holding compacts fiber layers, improves composite density, and enhances blade overall structural rigidity.
Best Vacuum Pump Types for Wind Blade Infusion Processes
Wind blade resin infusion requires stable medium vacuum, low pulsation, and 24-hour continuous operation. Two types of vacuum pumps are widely recognized as industry-standard equipment:
Provide high stable ultimate vacuum degree, low noise and steady suction. Perfect for small and medium wind blade production lines, delivering precise vacuum control for high-quality infusion molding.
2. Liquid Ring Vacuum Pumps
Ideal for large-scale wind factory mass production. They tolerate water vapor and trace volatile resin gas, feature stable continuous operation, and are easy to maintain, suitable for long-cycle large blade infusion production.
3. Centralized Vacuum System Units
Large wind turbine manufacturing bases adopt centralized vacuum stations, supplying stable negative pressure for multiple production lines simultaneously to improve overall factory efficiency.
Key Advantages of Vacuum Resin Infusion for Wind Energy Manufacturers
Higher Blade Quality & Durability: Void-free composite structure improves wind blade fatigue resistance and extends service life up to 20–25 years.
Consistent Batch Production: Standardized vacuum control ensures zero difference in blade performance between batches.
Lower Production Cost: Reduce resin waste, defect rate and post-repair workload.
Improved Production Efficiency: Stable vacuum shortens infusion cycle and accelerates factory output.
Green & Compliant Production: Closed vacuum molding reduces VOC emissions, meeting environmental protection standards for wind energy manufacturing.
Common Process Challenges & Vacuum System Optimization Solutions
1. Vacuum Pressure Instability Causing Uneven Resin Flow
Fluctuating vacuum leads to partial resin shortage and dry spots. Solution: Adopt high-stability vacuum pumps and vacuum buffer tanks to maintain constant negative pressure during infusion.
2. Micro Bubble Residue Affecting Blade Strength
Insufficient vacuum holding time causes tiny bubbles. Solution: Extend vacuum defoaming stage and optimize pump matching speed.
3. Air Leakage in Vacuum Bag System
Bag sealing failure destroys infusion quality. Solution: Equip real-time vacuum monitoring system to alarm abnormal pressure drop instantly.
Maintenance Tips for Long-Term Infusion Process Stability
Check vacuum pressure stability before each production batch to avoid defective products.
Regularly replace filters to intercept resin volatile impurities and protect pump interiors.
Inspect pipeline and valve tightness monthly to eliminate hidden leakage points.
Maintain and lubricate vacuum pumps periodically to ensure long-term stable operation.
Calibrate vacuum gauges quarterly to guarantee accurate process parameter control.
Conclusion
Vacuum Resin Infusion (VRI) is the core molding technology that supports high-quality and mass production of modern wind turbine blades. A reliable and stable vacuum system is the decisive factor to eliminate void defects, ensure uniform resin infiltration, and improve wind blade mechanical strength and service life.
By selecting professional industrial vacuum pumps and implementing standardized operation and maintenance, wind energy manufacturers can effectively reduce defect rates, improve production efficiency, and produce high-performance wind blades for onshore and offshore wind power projects.
FAQ
Q1: Why is vacuum essential for wind turbine blade resin infusion?
A1: Vacuum removes trapped air inside fiber layers, drives uniform resin infiltration, eliminates bubble defects, and forms compact high-strength composite structures for wind blades.
Q2: Which vacuum pump is best for wind blade vacuum infusion?
A2: Rotary vane vacuum pumps offer high precision for small-batch high-quality production, while liquid ring vacuum pumps are ideal for large-scale wind factory mass production lines.
Q3: What defects can poor vacuum control cause in wind blades?
A3: Unstable vacuum leads to dry spots, resin-rich areas, internal bubbles, uneven density, and reduced blade strength, easily causing fatigue cracking during operation.
Q4: How does vacuum infusion improve wind blade service life?
A4: Void-free and high-compact composite structure reduces wind erosion and fatigue damage, significantly improving durability and extending the overall service life of wind turbine blades.
