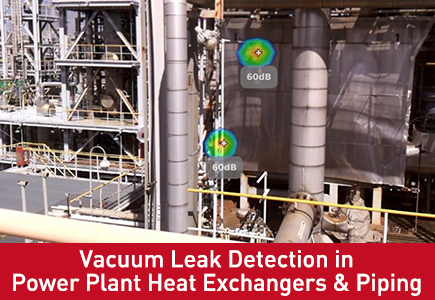

Vacuum Leak Detection in Power Plant Heat Exchangers & Piping
Heat exchangers and connected piping are core components of thermal and nuclear power plants. They work alongside condenser vacuum systems to maintain efficient heat transfer and stable unit load. Even tiny vacuum leaks in these components can cause continuous air ingress, leading to vacuum drop, higher turbine back pressure and reduced power generation efficiency.
Vacuum leak detection is a regular and essential maintenance work for power generation facilities. Timely inspection, positioning and repair of leaks can cut energy waste, extend equipment service life and avoid unplanned downtime. This article covers leak hazards, common leak points, mainstream detection methods, standard operation steps and preventive measures for power plant heat exchangers and piping.
Impacts of Vacuum Leaks on Power Plant Operation
Air and non-condensable gas entering through leaks will directly damage the operating state of the whole vacuum system.
First, vacuum degree declines obviously, which weakens the condensation effect of the condenser and increases turbine exhaust back pressure. Power output decreases while coal or fuel consumption rises sharply. Second, extra gas inside heat exchangers hinders heat exchange efficiency, resulting in unstable water temperature and abnormal pipeline pressure.
Long-term unaddressed leaks will also accelerate internal corrosion of pipes and heat exchanger tubes, raise equipment failure risks and bring extra maintenance costs. In severe cases, vacuum failure may force the power unit to reduce load or shut down.
Common Leak Points in Heat Exchangers and Piping
In long-running power plants, vacuum leaks mostly appear at structural connections and worn parts. The typical leak locations are summarized below:
Flange joints and gaskets: Aging, compression deformation or improper installation of gaskets are the most frequent causes of leakage.
Weld seams: Thermal expansion and vibration over years lead to tiny cracks on welding positions of heat exchangers and pipelines.
Valve bodies and packing glands: Wear of internal sealing parts causes slow air infiltration.
Heat exchanger tube plates and tube bundles: Corrosion and fatigue damage create micro leaks inside heat exchangers.
Expansion joints and flexible connections: These movable parts are prone to sealing failure under frequent vibration.
Main Vacuum Leak Detection Methods for Power Plants
Power plants adopt different detection technologies according to working conditions, leak size and accuracy requirements. The most widely used methods for heat exchangers and piping are as follows.
1. Pressure Hold Test (Rough Inspection)
This is the basic method for overall tightness inspection. Seal all ports of heat exchangers and piping, evacuate the system to the standard vacuum level, then isolate the unit and record vacuum changes within a specified time. If vacuum drops rapidly, it confirms the existence of large-area or major leaks. It is suitable for pre-inspection of the whole pipeline network.
2. Soap Bubble Method (On-Site Quick Check)
For visible external joints, welds and valves, apply diluted soapy water on the surface while the system keeps vacuum state. Bubbles will appear at leak points. This method is low-cost and easy to operate, ideal for finding obvious leaks in accessible areas.
As a high-accuracy professional solution, helium leak detectors trace helium gas to locate micro leaks. It can find tiny leaks that cannot be detected by traditional methods, and is widely used for high-standard heat exchangers, nuclear power equipment and critical vacuum pipelines. It features high sensitivity and stable test results.
4. Ultrasonic Leak Detector
Vacuum leaks produce special ultrasonic noise when air flows into negative pressure space. Handheld ultrasonic detectors capture the sound signal to quickly locate leak points. It works well in noisy power plant workshops and does not affect normal unit operation.
Step-by-Step Vacuum Leak Detection Workflow
Follow this standard process to complete systematic leak detection safely and efficiently:
Prepare tools, detectors and safety protection supplies, and mark the inspection range.
Isolate the tested heat exchanger or piping section from the main system.
Evacuate the unit to the designed vacuum pressure and stabilize the pressure.
Carry out overall pressure hold test to judge whether leaks exist.
Use soap bubbles, ultrasonic or helium detectors to locate specific leak points one by one.
Record all leak positions, mark damage levels and sort out repair plans.
Retest after repair to ensure full tightness.
Complete inspection reports and update equipment maintenance files.
Practical Solutions to Repair Vacuum Leaks
Different leak types require targeted repair measures:
For aging or damaged gaskets and seals: Replace with new high-temperature and corrosion-resistant sealing materials, and control uniform compression during installation.
For small cracks on weld seams: Conduct re-welding and post-weld anti-corrosion treatment.
For micro leaks on heat exchanger tube bundles: Plug defective tubes or replace damaged components according to technical standards.
For loose valves and packing glands: Adjust tightness or replace internal packing parts.
All repaired positions must pass secondary leak detection before putting back into service.
Preventive Maintenance to Avoid Recurring Leaks
Regular maintenance is the best way to reduce vacuum leak frequency:
Inspect gaskets, flanges and flexible connections quarterly, and replace aging parts in advance.
Apply anti-vibration measures for pipelines and heat exchangers to reduce structural fatigue.
Keep the internal medium clean to slow down corrosion of pipe walls and heat exchange tubes.
Arrange full vacuum tightness testing during each major equipment overhaul.
Train operation staff to monitor real-time vacuum data, and report abnormal pressure drop timely.
Key Benefits of Regular Leak Detection
Maintain stable vacuum degree and heat exchange efficiency, maximize power generation output.
Cut fuel consumption and daily operating costs for power plants.
Reduce equipment corrosion and damage, extend the service life of heat exchangers and piping.
Lower unexpected shutdown risks and ensure continuous and safe operation of power units.
Meet operational standards and safety specifications for power generation facilities.
Conclusion
Vacuum leaks in heat exchangers and piping are hidden hazards that cannot be ignored in power plant operation. Regular vacuum leak detection, accurate leak positioning and timely repair keep the vacuum system running at its optimal state.
Combined with standardized preventive maintenance, power plants can effectively avoid vacuum loss, improve overall operational efficiency and control long-term maintenance costs. Choosing proper detection methods and executing strict inspection procedures is essential for stable, economical and safe power production.
FAQ
Q1: What problems will vacuum leaks cause in power plant heat exchangers?
A1: Leaks lead to vacuum drop, increased turbine back pressure, reduced heat exchange efficiency, higher fuel consumption and accelerated equipment corrosion.
Q2: Which leak detection method is most suitable for micro leaks?
A2: Helium leak detection is the best choice for micro leaks, with extremely high detection accuracy. Ultrasonic detectors are recommended for fast on-site inspection.
Q3: How often should power plants perform vacuum leak detection?
A3: Conduct routine spot checks every month, overall pressure hold tests every quarter, and comprehensive full-range leak detection during annual equipment overhaul.
Q4: Can small vacuum leaks be ignored for a short time?
A4: No. Small leaks will gradually expand under long-term vibration and temperature changes, evolving into major faults and causing greater economic losses.
