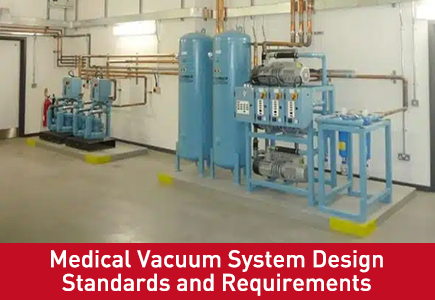

Medical Vacuum System Design Standards and Requirements

Medical vacuum systems are a critical component of hospital infrastructure, supporting applications such as surgical suction, airway management, and infection control.

Because these systems directly impact patient safety, their design must comply with strict international standards and engineering requirements. Improper design can lead to system failure, contamination risks, and non-compliance with healthcare regulations.

This guide provides a comprehensive overview of medical vacuum system design standards and key technical requirements for modern healthcare facilities.

What Are Medical Vacuum System Design Standards?

Medical vacuum system design standards are regulatory and engineering guidelines that define how systems should be:

• Designed

• Installed

• Operated

• Maintained

These standards ensure:

• Patient safety

• System reliability

• Continuous operation

They are developed by international organizations and widely adopted across hospitals worldwide.

Key International Standards for Medical Vacuum Systems

1. ISO 7396-1 (Medical Gas Pipeline Systems)

The ISO 7396-1 standard defines requirements for:

• Central vacuum systems

• Medical gas pipeline systems

It covers:

• System design

• Performance criteria

• Safety requirements

This is the most widely recognized global standard

2. NFPA 99 (Health Care Facilities Code)

The National Fire Protection Association publishes NFPA 99, which includes:

• Requirements for medical vacuum systems

• Risk-based system classification

• Redundancy and safety measures

Widely used in the United States and internationally

3. HTM 02-01 (UK Healthcare Standard)

The HTM 02-01 guideline defines:

• Design specifications

• Installation practices

• Maintenance procedures

Commonly applied in Europe and Commonwealth countries

4. CSA Z7396 (Canada)

Canadian standard for:

• Medical gas and vacuum systems

• Safety and compliance requirements

Core Design Requirements for Medical Vacuum Systems

1. System Capacity and Sizing

A properly designed system must:

• Meet peak demand requirements

• Maintain stable vacuum pressure

• Support simultaneous usage

Undersized systems can lead to:

• Pressure drops

• Ineffective suction

2. Redundancy and Backup (Critical Requirement)

Standards require:

• Duplex, triplex, or N+1 configurations

• Automatic failover capability

Ensures continuous operation even during equipment failure

3. Vacuum Pressure and Performance

Typical requirements include:

• Stable negative pressure levels

• Fast response time

• Consistent suction across outlets

Pressure instability can compromise clinical performance

4. Pipeline System Design

The pipeline network must:

• Minimize pressure loss

• Prevent leakage

• Ensure proper flow distribution

Design considerations:

• Pipe diameter

• Material selection

• Layout optimization

5. Filtration and Contamination Control

Medical vacuum systems must include:

• Bacterial filters

• Moisture separators

• Liquid traps

Prevents:

• System contamination

• Infection risks

6. Control and Monitoring Systems

Modern systems require:

• Automatic control panels

• Pressure monitoring

• Alarm systems

Enables:

• Real-time performance tracking

• Early fault detection

7. Noise and Environmental Requirements

Hospitals require:

• Low-noise operation

• Energy-efficient systems

• Minimal environmental impact

Oil-free systems are increasingly preferred

Engineering Design Considerations

System Layout Optimization

• Centralized vs decentralized systems

• Efficient pipeline routing

Equipment Selection

• Oil-free vs oil-sealed pumps

• Capacity matching

Installation Requirements

• Proper sealing

• Leak testing

• Compliance verification

Safety Integration

• Emergency shutdown systems

• Backup power supply

Compliance and Certification Requirements

To meet regulatory requirements, systems must:

• Pass pressure and leak tests

• Meet performance benchmarks

• Be inspected regularly

Compliance ensures:

• Legal operation

• Patient safety

• System reliability

Common Design Mistakes to Avoid

Undersized Systems

Cannot handle peak demand

Lack of Redundancy

Single point of failure

Poor Pipeline Design

Pressure loss and inefficiency

Inadequate Filtration

Contamination risk

No Monitoring System

Delayed fault detection

Best Practices for Medical Vacuum System Design

To ensure optimal performance:

• Follow international standards (ISO, NFPA, HTM)

• Use oil-free vacuum technology

• Implement redundancy (N+1 or higher)

• Design for peak demand, not average

• Install smart monitoring systems

Conclusion

Designing a medical vacuum system is not just an engineering task—it is a critical safety responsibility.

By following international standards and implementing proper design principles, hospitals can ensure:

• Reliable vacuum supply

• Safe clinical environments

• Compliance with healthcare regulations

A well-designed system is the foundation of efficient and safe hospital operations

FAQ

Q: What standards apply to medical vacuum systems?

ISO 7396-1, NFPA 99, HTM 02-01, and CSA Z7396 are the main standards.

Q: Why is redundancy required in medical vacuum systems?

To ensure continuous operation and prevent system failure from affecting patient care.

Q: What is the required vacuum level in hospitals?

It varies by application but must remain stable and consistent across all outlets.

Q: Are oil-free vacuum pumps required by standards?

Not always required, but increasingly recommended for hygiene and low maintenance.

Q: What happens if a system does not meet standards?

It may fail compliance checks and pose risks to patient safety and hospital operations.
