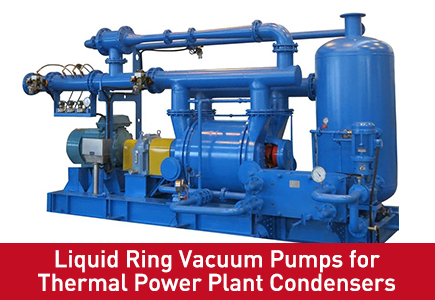

In thermal power generation, the condenser vacuum system directly impacts turbine efficiency, fuel consumption, and plant profitability. Among available vacuum technologies, liquid ring vacuum pumps (LRVPs) have proven themselves as robust, reliable workhorses for maintaining condenser vacuum across coal, gas, and nuclear power plants worldwide.
This guide explains how liquid ring pumps function in condenser service, compares them to steam jet ejectors and dry pumps, and provides actionable guidance for selection, retrofit, and maintenance.
The steam turbine extracts energy from high-pressure steam as it expands toward the condenser. The lower the absolute pressure at the turbine exhaust (i.e., the deeper the vacuum), the more work is extracted per kilogram of steam.
| Parameter | Impact of Poor Vacuum |
| Turbine backpressure | +1 kPa → heat rate +1.5–2.5% |
| Fuel consumption | +0.13% per 1 kPa rise |
| CO₂ emissions | Proportionally higher |
| Annual fuel cost (500 MW plant) | +$150,000–250,000 per 1 kPa |
Maintaining stable, deep vacuum is therefore not optional—it is an economic and environmental imperative.
Liquid ring vacuum pumps are a type of rotary positive displacement pump that uses a rotating liquid seal (typically water) to compress gas.
An eccentrically mounted impeller rotates inside a cylindrical casing partially filled with seal liquid (usually water).
Centrifugal force throws the liquid against the casing wall, forming a "liquid ring" that follows the casing contour.
Gas enters through a port in the end cover and is trapped between the impeller blades and the liquid ring.
As the impeller rotates, the volume between blades decreases, compressing the gas.
Compressed gas exits through a discharge port, carrying some heat and moisture with it.
| Feature | Benefit |
| Isothermal compression | Liquid absorbs heat of compression → cooler discharge, safer operation |
| Tolerance to moisture | Handles saturated air and water droplets without damage (unlike oil-sealed pumps) |
| Dust and particulate tolerance | Small particles carried in condenser exhaust pass through without clogging |
| Simple construction | Fewer wearing parts; easy to maintain on-site |
| Explosion-proof by design | No oil to ignite; suitable for hydrogen-cooled generators |
Many older power plants still rely on steam jet ejectors for air removal from condensers. However, liquid ring pumps offer compelling advantages.
| Criterion | Steam Jet Ejector | Liquid Ring Vacuum Pump |
| Energy source | High-pressure steam | Electricity |
| Auxiliary load | Steam consumption (reduces net output) | Motor power (1–5% of steam consumption equivalent) |
| Efficiency at partial load | Poor (steam consumption constant) | Excellent (can be VFD-controlled) |
| Startup time | Minutes to bring steam supply up | Immediate (seconds) |
| Water consumption | Condenser cooling water for inter/aftercondensers | Seal water (recyclable) |
| Maintenance | Nozzle erosion, intercondenser cleaning | Seal liquid replacement, bearing service |
| Noise | High (jet screech) | Moderate |
| Typical retrofit payback | N/A | 1.5–3 years |
The primary duty of a liquid ring pump in a thermal plant is to remove non‑condensable gases (mainly air) that leak into the condenser. Without continuous removal, these gases accumulate on tube surfaces, forming a thermal barrier that raises backpressure.
Liquid ring pumps are often used to evacuate the turbine shaft gland sealing system, preventing air ingress along the turbine rotor.
During startup or sudden load rejection, bypass steam must be condensed. Liquid ring pumps help maintain vacuum during these transient conditions.
For hydrogen-cooled generators, liquid ring pumps are used to evacuate air before filling with hydrogen and to remove any air leakage during operation.
| Parameter | How to Determine | Typical Value |
| Air removal capacity (SCFM or kg/hr) | Condenser design data; expected leak rate | 1 SCFM per 100 MW + margin |
| Operating vacuum (mbar abs) | Turbine backpressure specification | 50–150 mbar (single-stage); 15–50 mbar (two-stage) |
| Seal liquid type | Usually water; sometimes treated condensate | Ambient or chilled water |
| Material compatibility | Condenser exhaust may contain ammonia or acids | Cast iron (standard); stainless steel (corrosive service) |
For condenser service, air removal capacity is typically 1–2 SCFM per 100 MW of generator output. For example, a 600 MW plant would require a pump capable of handling 6–12 SCFM of air at the design vacuum level.
Important: The pump must be sized for the air removal rate at operating vacuum, not at atmospheric pressure. Pump performance curves are essential.
In plants burning high-sulfur coal or using seawater cooling, condenser exhaust may contain corrosive gases. For such environments:
Specify stainless steel (304 or 316) for pump casing and impeller.
Use a closed-loop seal water system with corrosion inhibitors.
Consider coated cast iron (epoxy or PTFE) for moderate conditions.
For plants still operating steam jet ejectors, the retrofit to liquid ring pumps follows a logical sequence:
Calculate baseline air load using ejector design data or by measuring condensate subcooling.
Select liquid ring pump size with assistance from a pump specialist.
Design piping interface to tie into existing condenser vent connection.
Install pump, separator, and controls in a location accessible for maintenance.
Commission and validate that vacuum levels meet or exceed original ejector performance.
Monitor energy savings and document reduced auxiliary steam consumption.
Expected payback: For a large coal or nuclear plant, the capital investment is typically recovered in 1.5–3 years through reduced steam consumption and lower maintenance costs.
Liquid ring vacuum pumps have earned their place as the preferred technology for condenser vacuum service in thermal power plants. Their robust, simple design handles the moisture, particulates, and variable loads inherent to this application. When replacing inefficient steam ejectors, they deliver energy savings of 90% or more and improve plant heat rate.
For new installations, a two-stage liquid ring pump with VFD control offers the best balance of efficiency, reliability, and capital cost. For existing plants with failing ejectors or rising fuel prices, retrofitting to liquid ring technology is one of the highest-ROI projects available.
By combining proper sizing, VFD integration, seal water management, and regular maintenance, power plant operators can rely on liquid ring pumps to maintain optimum condenser vacuum year after year.
Q: Can a liquid ring vacuum pump handle the high water vapor load from a condenser?
A: Yes. Liquid ring pumps are specifically designed to handle saturated gas streams and entrained moisture. Unlike oil‑sealed pumps, they do not suffer from oil emulsification when exposed to water vapor.
Q: What is the typical service life of a liquid ring pump in a power plant?
A: With proper maintenance (regular seal water treatment, bearing replacement every 5–7 years), a liquid ring pump can operate for 20–30 years in condenser service.
Q: Do I need an auxiliary booster for deep vacuum?
A: For condensers designed to operate below 50–60 mbar absolute, a two-stage liquid ring pump or a liquid ring pump with a mechanical booster (Roots blower) is recommended. For typical 50–150 mbar operation, a single-stage pump suffices.
