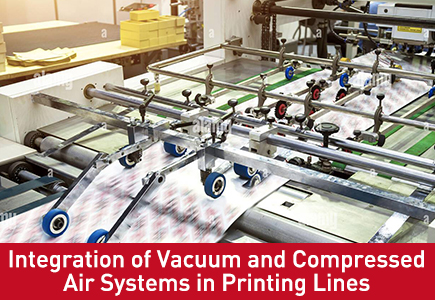

In modern printing and paper processing lines, vacuum and compressed air systems operate together as critical components of material handling and process control. From sheet feeding and paper separation to transport, drying, and finishing, these pneumatic systems ensure stable sheet movement, accurate registration, and high-speed production.
Integrating vacuum pumps with compressed air systems allows printing plants to achieve greater energy efficiency, improved sheet handling precision, and optimized airflow control across the entire printing workflow.
This article explains how vacuum and compressed air technologies work together in printing lines, explores key system architectures, and provides engineering recommendations for efficient integration.
Printing equipment relies on both negative pressure (vacuum) and positive pressure (compressed air) to control paper movement and maintain consistent production speeds.
Vacuum pumps are widely used for:
Sheet pickup and feeding using suction cups
Stabilizing paper transport on conveyors
Holding sheets during printing and cutting
Removing air pockets between paper layers
Vacuum systems allow precise handling of delicate paper materials without mechanical clamps that could damage surfaces.
Compressed air performs complementary tasks such as:
Separating stacked paper sheets during feeding
Blowing air cushions to guide sheets through rollers
Cooling printed surfaces and powder coating processes
Removing paper dust and static particles
Low-pressure air jets are often used together with vacuum suction cups to lift the top sheet while preventing multiple sheets from being pulled simultaneously.
The coordination between vacuum and compressed air is often described as a push-pull airflow principle.
Vacuum → pulls sheets into position
Compressed air → separates, guides, or stabilizes sheets
For example, in sheet-fed offset presses:
Vacuum cups lift the top sheet from a stack
Air jets separate sheets to prevent double feeding
Vacuum conveyors transport the sheet through print units
Air blowers stabilize the sheet during stacking or delivery
This synchronized pneumatic action allows modern printing machines to run at extremely high speeds while maintaining accurate alignment.
Most industrial printing plants adopt a three-system pneumatic architecture:
Vacuum System – powered by vacuum pumps or blowers
Micro-positive pressure system – for air guiding and separation
Compressed air system – powered by industrial air compressors
These three subsystems operate simultaneously to support different airflow requirements across the printing line.
Large printing facilities often implement centralized pneumatic systems, where vacuum pumps and compressors are installed in a dedicated equipment room and distributed through piping networks.
Advantages include:
Reduced equipment noise on the production floor
Simplified maintenance and monitoring
More stable vacuum and air supply
Improved energy efficiency through shared resources
Centralized systems also make it easier to scale production capacity or integrate new printing machines.
Integrated vacuum and compressed air systems support multiple stages of printing production.
In pre-press processing, vacuum and compressed air assist with:
Plate preparation and exposure systems
Film positioning and scanning processes
Automated plate transport systems
Vacuum holds plates in position while air pressure guides materials during handling.
The feeder unit is one of the most vacuum-intensive areas in printing machines.
Typical functions include:
Sheet lifting via vacuum suction cups
Air separation between paper layers
Air cushions to reduce friction during transport
These pneumatic systems ensure smooth sheet transfer between printing units.
During finishing operations such as cutting, folding, and binding:
Vacuum stabilizes paper stacks during trimming
Compressed air removes dust and debris
Pneumatic systems guide paper through binding equipment
Integrated airflow improves both productivity and finished product quality.
Energy consumption is a major concern in large printing facilities. Vacuum pumps and compressors can represent a significant portion of a plant’s electricity usage.
Proper integration allows:
Modern vacuum pumps and compressors can use VSD (variable speed drives) to match airflow supply with real production demand.
Computer-controlled vacuum and blow systems enable operators to adjust airflow levels from the printing console, improving process stability and reducing setup time.
Oversized pumps combined with undersized piping can reduce system efficiency. Correct piping design ensures airflow reaches the machine without unnecessary pressure losses.
When designing vacuum and compressed air integration for printing lines, engineers should consider several factors:
Vacuum and positive pressure must be precisely balanced to prevent paper misalignment or sheet damage.
Pump and compressor sizing should match machine speed, sheet format, and production volume.
Regular inspection of filters, piping, and valves helps maintain stable airflow and prevent downtime.
Modular vacuum and air systems allow future upgrades and additional machines without major redesign.
Printing companies that integrate vacuum and compressed air technologies gain several operational benefits:
Higher printing speed and throughput
Improved sheet separation and transport accuracy
Reduced sheet jams and misfeeds
Lower energy consumption
Improved production reliability
These advantages are especially important for high-volume commercial printing and packaging production lines.
Q: What is COAX technology and why is it beneficial for printing?
A: COAX technology uses compressed air-driven multi-stage ejector cartridges that generate vacuum directly at the point of use . Benefits include elimination of line losses, faster response times, energy efficiency, compact size, reduced heat generation, and maintenance-free operation .
Q: How much energy can I save by integrating my vacuum and compressed air systems?
A: Typical savings range from 30-50% compared to separate systems. Specific savings: VFD retrofits 20-35% , decentralized COAX 15-30% , and heat recovery 10-20% of drying energy .
Q: Can I retrofit an older printing press with modern integrated air systems?
A: Yes, most modern systems can be retrofitted to existing presses. PVBS control systems, for example, can be installed on both new and old printing presses . COAX cartridges can often be integrated into existing machine designs. A retrofit assessment by qualified engineers is recommended.
Q: What's the difference between centralized and decentralized vacuum systems for printing?
A: Centralized systems use one or more large pumps serving multiple presses, offering simplified maintenance and easier heat recovery . Decentralized systems (often COAX-based) place small vacuum generators at each point of use, eliminating line losses and providing maximum flexibility . Many modern facilities use a hybrid approach.
Q: How do I ensure reliability if my main vacuum pump fails?
A: Consider a redundancy configuration with both dedicated and centralized backup pumps. One design uses pneumatic three-way valves that allow each press to switch seamlessly between its own pump and a central backup . N+1 configurations (one spare pump in a multi-pump system) also provide redundancy.
Q: What maintenance do integrated air systems require?
A: Maintenance varies by technology. COAX ejectors have no moving parts and are essentially maintenance-free . Dry claw and screw pumps require periodic filter changes and inspections . VFDs need occasional parameter checks. All systems benefit from regular leak detection and performance monitoring .
Q: Can I recover heat from my vacuum pumps and compressors?
A: Yes, modern integrated systems can capture significant heat. The heated cooling air from pumps and compressors can be passed through heat exchangers to warm drying air for the printing presses . This can reduce or eliminate separate heating requirements for drying.
Q: What controls should I look for in an integrated system?
A: Look for touchscreen operator terminals, programmable job recipes, individual unit regulators, energy monitoring, and open communication interfaces compatible with your press controllers . For multi-pump systems, intelligent sequencing features like Multimaster optimize operation and equalize wear .
