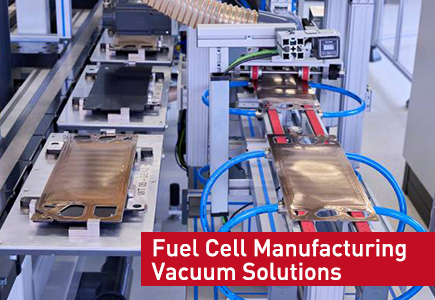

Proton exchange membrane (PEM) fuel cells have grown rapidly as core power sources for new energy vehicles, distributed power stations and portable power equipment. Global fuel cell manufacturers are shifting from small-batch trial production to automated mass production, which puts forward extremely strict standards on component dimensional accuracy, coating uniformity and internal purity.
Bipolar plates and coated proton exchange membranes are two core constituent parts determining fuel cell stack output performance and service life. Modern automated production lines universally adopt customized vacuum technology to control raw material purification, surface treatment and precision coating. Improper vacuum setup is one of the top reasons for high scrap rate and unstable finished fuel cell performance in many mid-sized fuel cell factories. This article focuses on vacuum application details of bipolar plate processing and membrane coating, equipment selection and actual production benefit analysis.
Key Manufacturing Defects Triggered by Missing Precision Vacuum Control
Many small fuel cell manufacturers still run partial processes under ordinary atmospheric environment, resulting in recurring product defects that erode profit margin consistently:
Bipolar plate surface defects: Residual air bubbles and adsorbed moisture remain inside graphite or metal substrate, leading to uneven conductive coating, poor gas flow channel flatness and increased internal resistance after assembly.
PEM coating failure: Dust, floating moisture and ambient air particles mix with coating slurry under normal pressure, causing pinholes, partial coating thinning and inconsistent proton conductivity across membrane surface.
Long-term stack attenuation: Unremoved trace impurities gradually trigger electrochemical side reactions inside assembled fuel cell stacks, shortening overall stack cycle life and reducing rated power output.
Well-designed vacuum environment solves above inherent drawbacks from source and becomes standard configuration for mainstream fuel cell gigafactories.
Two Core Vacuum Application Segments in Fuel Cell Component Production
Vacuum Technology for Graphite & Metallic Bipolar Plate Fabrication
Bipolar plates fall into two mainstream categories: graphite composite plates and stainless steel metallic plates, both requiring multi-stage vacuum treatment before subsequent coating and forming.For graphite bipolar plates: Raw graphite powder mixed with resin binder needs vacuum degassing to remove trapped air inside composite blank before hot pressing molding. Negative pressure environment eliminates internal bubble cavities and ensures dense, uniform substrate structure. Follow-up conductive anti-corrosion coating also relies on low-vacuum closed environment to avoid particle pollution during spraying.
For thin metallic bipolar plates: Pre-treatment processes including vacuum degreasing and vacuum plasma cleaning remove surface oil residue and oxide film completely. Clean metal surface improves adhesion of subsequent conductive coating, preventing coating peeling during long-term fuel cell operation. All above pretreatment steps cannot achieve qualified yield without stable vacuum support.
High-Vacuum Deposition & Coating for Proton Exchange Membrane(PEM)
Proton exchange membrane is the core ion-conducting component of fuel cell, and its functional coating directly decides cell efficiency. Two mainstream coating processes heavily depend on precise vacuum: vacuum slurry coating and PVD vacuum sputtering deposition.
Vacuum closed coating isolates outside air and dust, making coating material spread evenly on ultra-thin polymer membrane surface without pinhole defects. High-vacuum PVD sputtering further realizes nanoscale uniform functional layer deposition on membrane surface, widely applied for high-performance automotive-grade fuel cell membranes. Continuous stable vacuum also prevents coating solvent from rapid abnormal volatilization under atmospheric pressure, stabilizing finished membrane batch consistency.
Targeted Vacuum Equipment Matching by Different Production Scales
Fuel cell production has obvious scale differentiation from pilot lab to large automated factory, with matched vacuum configurations varying greatly:
Lab & pilot small-scale production: Oil-free single-stage dry vacuum pumps. Compact layout, clean oil-free vacuum environment, ideal for laboratory prototype bipolar plate and membrane trial coating.
Medium-volume semi-automatic production: Roots + dry pump combined vacuum sets. Fast pumping speed, stable medium-high vacuum, suitable for batch bipolar plate degassing and continuous membrane coating lines.
Large-scale fuel cell gigafactory centralized production: Centralized skid-mounted vacuum station composed of multiple dry vacuum units. Unified vacuum supply for dozens of bipolar plate forming and membrane coating production lines, cutting single pump procurement and maintenance cost.
Liquid ring vacuum pumps are occasionally applied for front-end rough pre-evacuation of large material chambers thanks to excellent vapor tolerance for coating solvent volatile gas.
Measurable Technical & Financial ROI of Optimized Vacuum Systems
Enterprises upgrading original atmospheric production to standardized vacuum process gain obvious returns in both product quality and economic cost:
Reduce bipolar plate and membrane scrap rate by 25%~40%, saving massive raw material loss of high-cost graphite, stainless steel and proton exchange membrane raw materials.
Improve finished fuel cell stack consistency, lowering after-sale failure maintenance cost for downstream vehicle and power station customers.
Stable vacuum shortens chamber evacuation waiting cycle, lifting overall production line operating efficiency and daily factory output.
Qualified high-performance components raise finished fuel cell product grade, helping manufacturers enter high-end new energy vehicle supply chain.
On-Site Troubleshooting & Preventive Control for Fuel Cell Vacuum Lines
Fuel cell coating workshops contain volatile organic solvent vapor and fine graphite dust, easily causing vacuum system performance decline without daily standardized management:
Vacuum drop induced by solvent vapor condensation: Install multi-stage gas-liquid filter and solvent recovery device at pump inlet to intercept condensed liquid and dust.
Membrane coating spot defects caused by hidden pipeline air leakage: Arrange quarterly helium leak detection for all vacuum piping and coating chamber housings.
Unnecessary idle power consumption: Equip VFD frequency conversion for vacuum units to automatically adjust pumping speed following real-time production load change.
Daily operator inspection on vacuum reading, equipment temperature and filter status effectively avoids mass defective products caused by sudden vacuum abnormality.
Conclusion
Vacuum technology is an indispensable core auxiliary solution throughout bipolar plate forming and proton exchange membrane coating for modern PEM fuel cell manufacturing. Reasonable equipment selection matching production scale plus standardized daily management helps fuel cell manufacturers realize defect reduction, efficiency improvement and comprehensive cost control.
As global fuel cell industrialization accelerates, customized clean vacuum systems will become essential core configuration for new-built and upgraded fuel cell production workshops.
Industry FAQ
Q1: Why oil-free vacuum pumps are preferred for fuel cell component production?
A1: Oil-free design eliminates oil vapor contamination risk on bipolar plate conductive layer and proton exchange membrane coating, avoiding internal fuel cell electrochemical failure triggered by hydrocarbon impurities.
Q2: What vacuum level is required for PVD membrane coating of automotive-grade fuel cells?
A2: Automotive PEM sputter coating generally requires high vacuum ranging from 1×10⁻³ Pa to 1×10⁻⁵ Pa to guarantee nanoscale uniform deposition without particle pollution.
Q3: Can centralized vacuum system cut total investment for large fuel cell factories?
A3: Yes, centralized vacuum station replaces scattered independent vacuum pumps for each production line, reducing total equipment purchase cost and later regular maintenance expenditure.
Q4: Can old atmospheric coating line be retrofitted with vacuum system?
A4: Most existing open coating production lines support vacuum sealing renovation and matched vacuum unit installation, realizing quality upgrade without full production line replacement.
