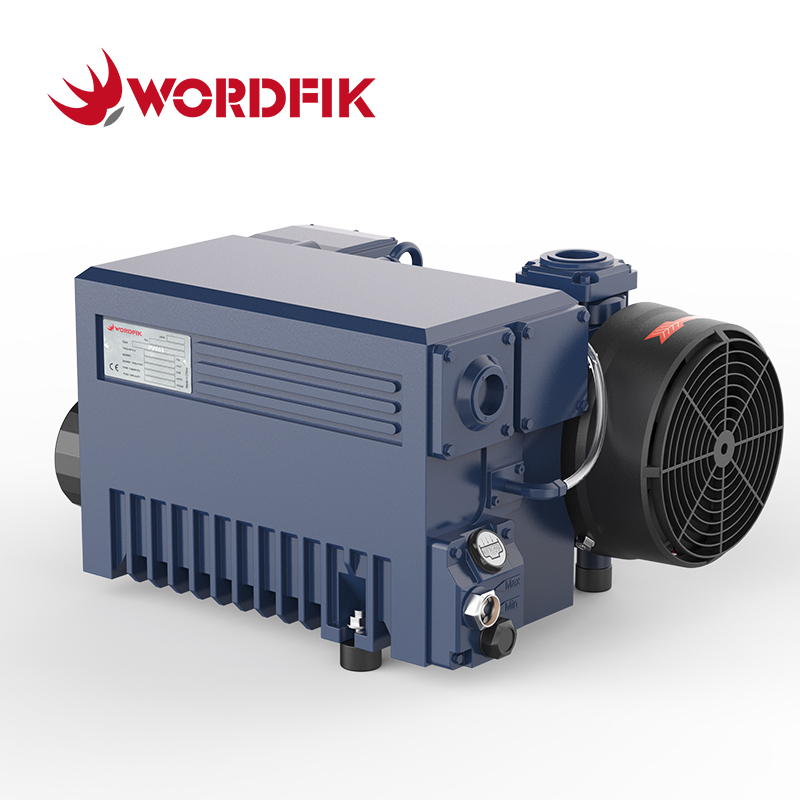

Wordfk PVX Series oil-ubricated rotary vane pump is a traditional vacuum equipment thatuses lubricating oil to achieve sealing, cooling and lubrication. it is widely used in theindustrial feld for its high vacuum, stability and economy. it has excellent performance invacuum packaging, vacuum drying, vacuum refrigeration, vacuum distillation and other fields.
PVX series vacuum pumps use circulating oil lubrication for continuous operation. Theadvanced oil mist separator can effectively separate the sealing oil and the pumpingmedium to ensure the effective recycling of the oil, High-performance carbon fiber vanes orepoxy resin vanes make the pump work longer.
Features:
• Energy Saving
• Efficient Anti-Corrosion Protection
• Excellent Performance
• Easy to Maintenance
• Long Service Life
• Stable and Continuous Operation
| Frequency | Pumping Speed | Ultimate Vacuum | Motor Power | Motor Voltage | Motor Speed | Noise Level | Gas Inlet | Gas Outlet | Water Vapor Tolerance | Oil Capacity | Weight | Dimensions | ||
| 3ph | 1ph | |||||||||||||
| PVX16 | 50Hz | 16 m³/h | 1 mbar | 0.55 kW | Δ200-230 V Y380-415 V | 220V±10% | 2800 rpm | 64 dB | ½ inch | / | / | 0.4 L | 16 kg | 308*213*207 mm |
| 60Hz | 19 m³/h | 3300 rpm | ||||||||||||
| PVX25D | 50Hz | 20 m³/h | 1 mbar | 0.75 kW | Δ200-230 V Y380-415 V | 220V±10% | 2880 rpm | 65 dB | ½ inch | ¾ inch | 0.4 kg/h | 0.45 L | 19.5 kg | 317*249*219 mm |
| 60Hz | 24 m³/h | 3440 rpm | ||||||||||||
| PVX25 | 50Hz | 24 m³/h | 0.5 mbar | 0.75 kW | Δ200-230 V Y380-415 V | 230V±10% | 2800 rpm | 65 dB | ½ inch or ¾ inch | / | 0.5 kg/h | 0.75 L | 22 kg | 431*245*218 mm |
| 60Hz | 28 m³/h | 0.9 kW | 3300 rpm | 66 dB | ||||||||||
| PVX40 | 50Hz | 40 m³/h | 0.5 mbar | 1.1 kW | Δ220-230 V Y380-415 V | / | 1450 rpm | 64 dB | 1¼ inch | 1¼ inch | 0.7 kg/h | 1.5 L | 44 kg | 647*307*270 mm |
| 60Hz | 48 m³/h | 1.5 kW | 440-460 V | 1700 rpm | 65 dB | 46 kg | ||||||||
| PVX63 | 50Hz | 63 m³/h | 0.5 mbar | 1.5 kW | Δ220-230 V Y380-415 V | / | 1450 rpm | 65 dB | 1¼ inch | 1¼ inch | 1 kg/h | 2 L | 54 kg | 640*405*290 mm |
| 60Hz | 78 m³/h | 2.2 kW | 440-460 V | 1700 rpm | 66 dB | 59 kg | ||||||||
| PVX100 | 50Hz | 100 m³/h | 0.5 mbar | 2.2 kW | Δ220-230 V Y380-415 V | / | 1450 rpm | 66 dB | 1¼ inch | 1¼ inch | 1.5 kg/h | 2 L | 69 kg | 710*405*290 mm |
| 60Hz | 120 m³/h | 3 kW | 440-460 V | 1700 rpm | 67 dB | 75 kg | ||||||||
| PVX160 | 50Hz | 160 m³/h | 0.5 mbar | 4 kW | Δ380-415 V Y660-690 V | / | 1450 rpm | 72 dB | 2 inch | 2 inch | 2.5 kg/h | 8 L | 142 kg | 760*500*411 mm |
| 60Hz | 192 m³/h | 5.5 kW | 440-460 V | 1700 rpm | 73 dB | 155 kg | ||||||||
| PVX202 | 50Hz | 200 m³/h | 0.5 mbar | 4/5.5 kW | Δ380-415 V Y660-690 V | / | 1450 rpm | 73 dB | 2 inch | 2 inch | 4 kg/h | 8 L | 142/145 kg | 795*500*411 mm |
| 60Hz | 240 m³/h | 5.5 kW | 440-460 V | 1700 rpm | 74 dB | 160 kg | ||||||||
| PVX250 | 50Hz | 250 m³/h | 0.5 mbar | 5.5/7.5 kW | Δ380-415 V Y660-690 V | / | 1450 rpm | 72 dB | 2 inch | 2 inch | 3.5 kg/h | 10 L | 192 kg | 976*605*411 mm |
| 60Hz | 300 m³/h | 7.5 kW | 440-460 V | 1700 rpm | 73 dB | |||||||||
| PVX302 | 50Hz | 300 m³/h | 0.5 mbar | 7.5 kW | Δ380-415 V Y660-690 V | / | 1450 rpm | 73 dB | 2 inch | 2 inch | 4.5 kg/h | 10 L | 198 kg | 1006*605*411 mm |
| 60Hz | 360 m³/h | 440-460 V | 1700 rpm | 74 dB | ||||||||||
| PVX630 | 50Hz | 640 m³/h | 0.1 mbar | 15 kW | Δ380-415 V Y660-690 V | / | 1450 rpm | 75 dB | DN100 | DN80 | 17 kg/h | 22 L | 670 kg | 1600*900*754 mm |
| 60Hz | 750 m³/h | 18 kW | 440-460 V | 1700 rpm | 76 dB | 24 kg/h | 680 kg | |||||||
| PVX750 | 50Hz | 750 m³/h | 0.1 mbar | 18.5 kW | Δ380-415 V Y660-690 V | / | 1450 rpm | 76 dB | DN100 | DN80 | 24 kg/h | 22 L | 680 kg | 1600*900*754 mm |
| 60Hz | / | / | / | / | / | / | / | / | / | / | / | |||
Application:
 |  |  |
| Vacuum Packaging | Vacuum Drying | Vacuum Forming |
 |  |  |
| Hospital | Vacuum Distillatio | Medical Industry |
